Tripp Lite

Tripp Lite B126-1P0-MINI HDMI over Cat5/6 Passive Extender, Low-Profile Remote Receiver for Video/Audio, Up to 100 ft. (30 m), TAA

SKU: B126-1P0-MINI

Regular price $32.50
Regular price Sale price $32.50
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          HDMI over Cat5/6 Passive Extender, Low-Profile Remote Receiver for Video/Audio, Up to 100 ft. (30 m), TAA

          Tripp Lite B126-1P0-MINI HDMI over Cat5/6 Passive Extender, Low-Profile Remote Receiver for Video/Audio, Up to 100 ft. (30 m), TAA. Type: AV transmitter & receiver, Maximum resolution: 1600 x 1200 pixels, Cable types supported: Cat5,Cat6. USB connector type: Micro-USB B. Package width: 149.9 mm, Package depth: 121.9 mm, Package height: 33 mm. Cables included: Micro-USB. Master (outer) case width: 345.4 mm, Master (outer) case length: 170.2 mm, Master (outer) case height: 137.2 mm

          The B126-1P0-MINI HDMI over Cat5/Cat6 Passive Extender, Low-Profile Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters (sold separately) to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's recommended for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

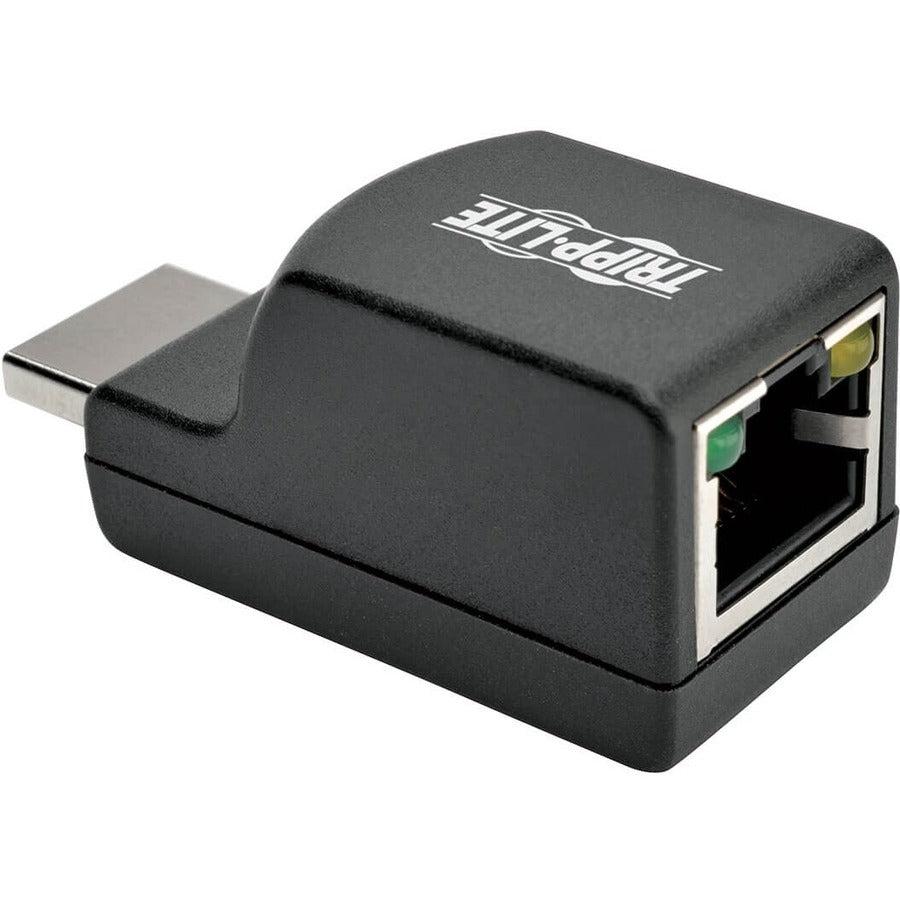

          The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI's built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100-ft. (30.5 m) or a 1080p (@ 60 Hz) signal up to 50-ft. (15.24 m) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (such as Tripp Lite's N202-Series) between this unit and the transmitter.

          In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required.

          Extends High-Definition Signals
          Works in tandem with Tripp Lite's B126-002 and B126-004 transmitter units (sold separately)
          Extends a 1080i (@ 60 Hz) signal up to 100-ft. (30.5 m)
          Extends a 1080p (@ 60 Hz) signal up to 50-ft. (15.24 m)

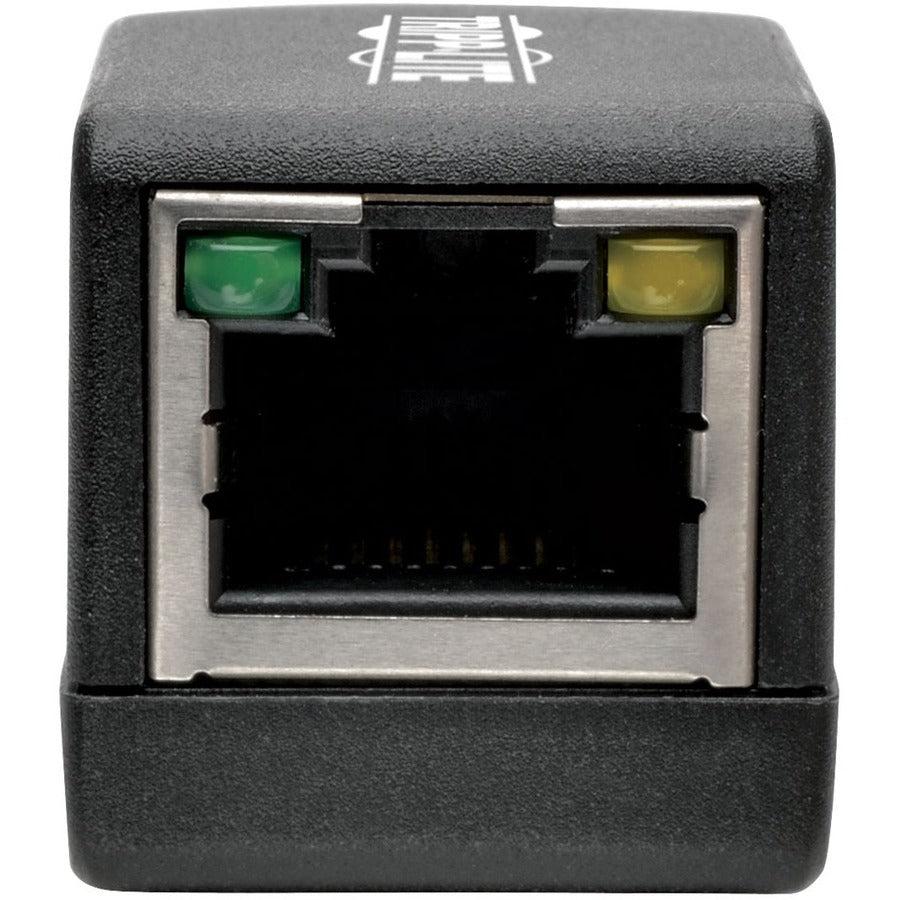

          Connects to transmitter with one Cat5e/6 cable

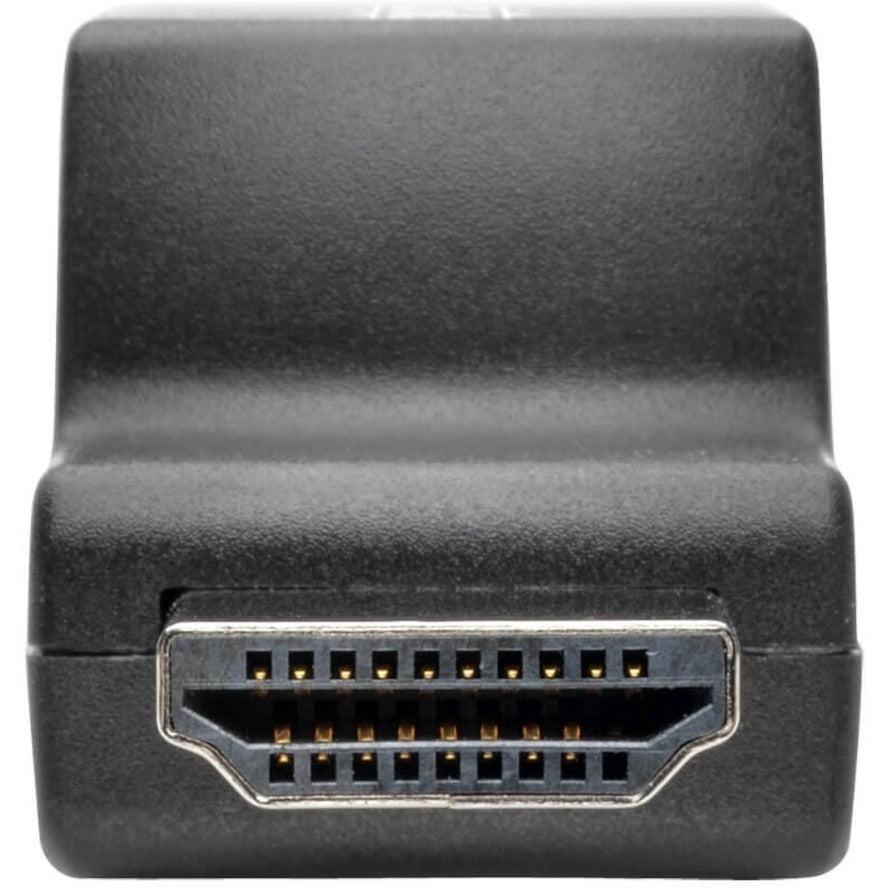

          Built-in HDMI male connector plugs directly into monitor

          Supports the Latest Video and Audio Resolutions
          Works with all operating systems and HDMI video sources
          Supports stereo and 7.1-channel surround sound (multi-channel or PCM) when paired with B126-002 or B126-004
          Supports 24-bit True Color (8 bits per channel) and HDCP

          Easy to Set Up and Use
          Plug-and-play engineering—no software or drivers necessary

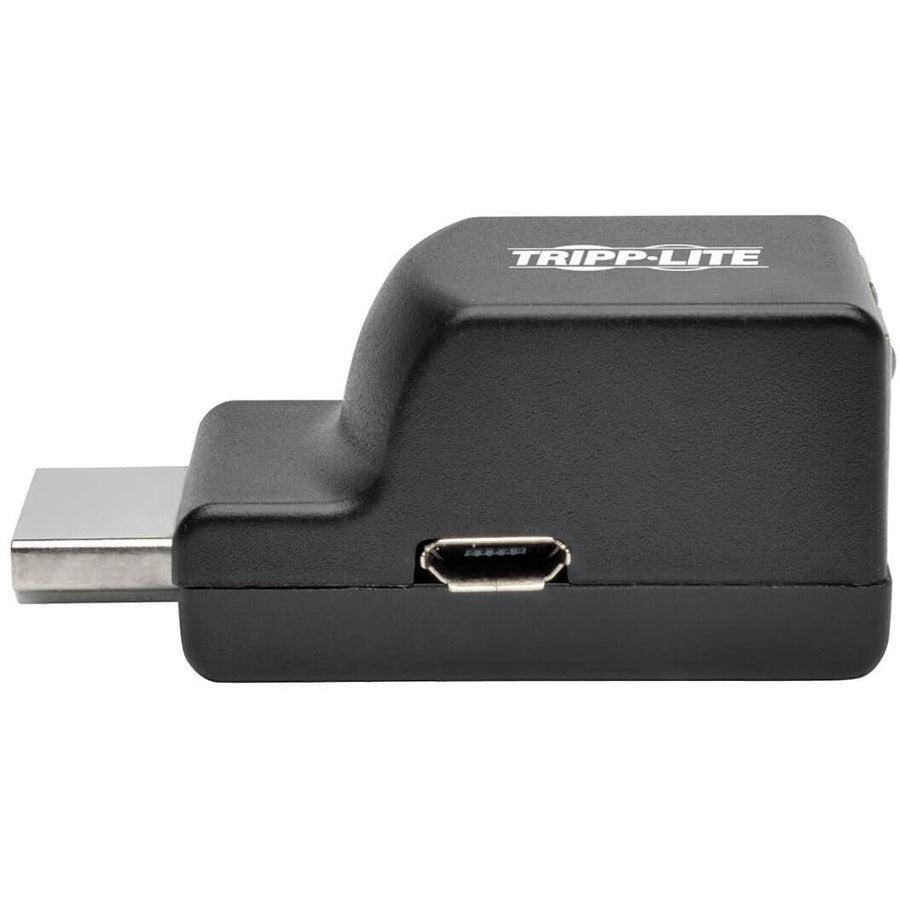

          No external power required; included USB Micro-B cable provides extra power when necessary

          TAA-Compliant
          Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
