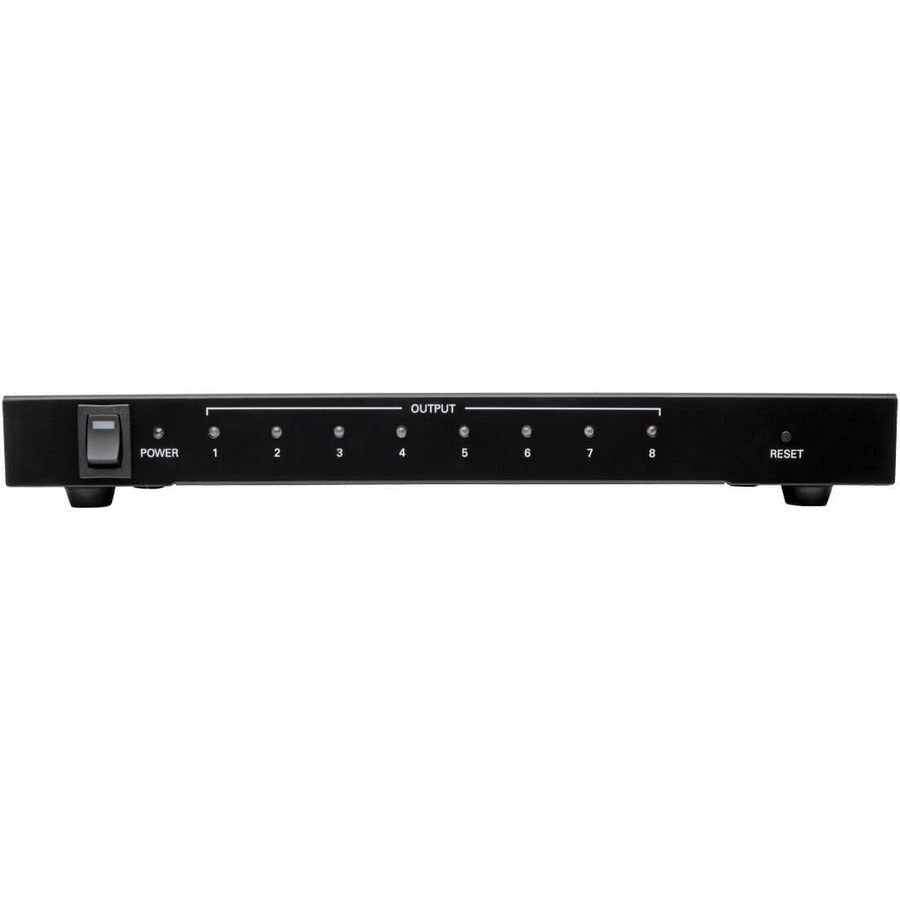

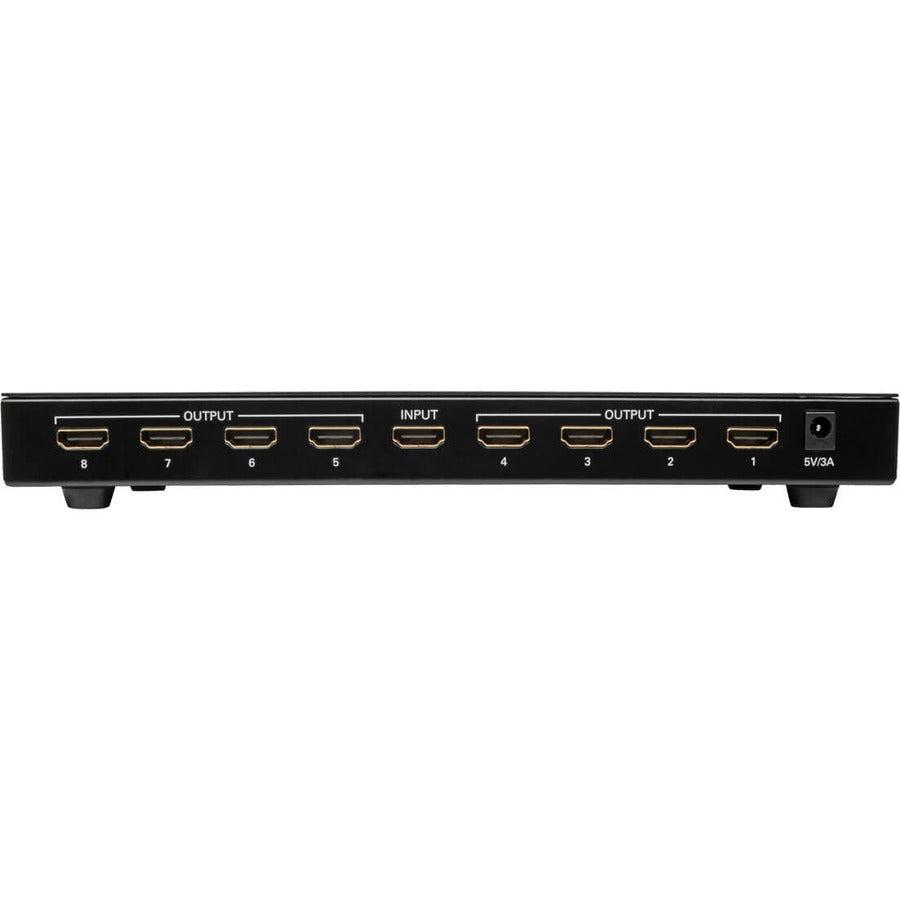

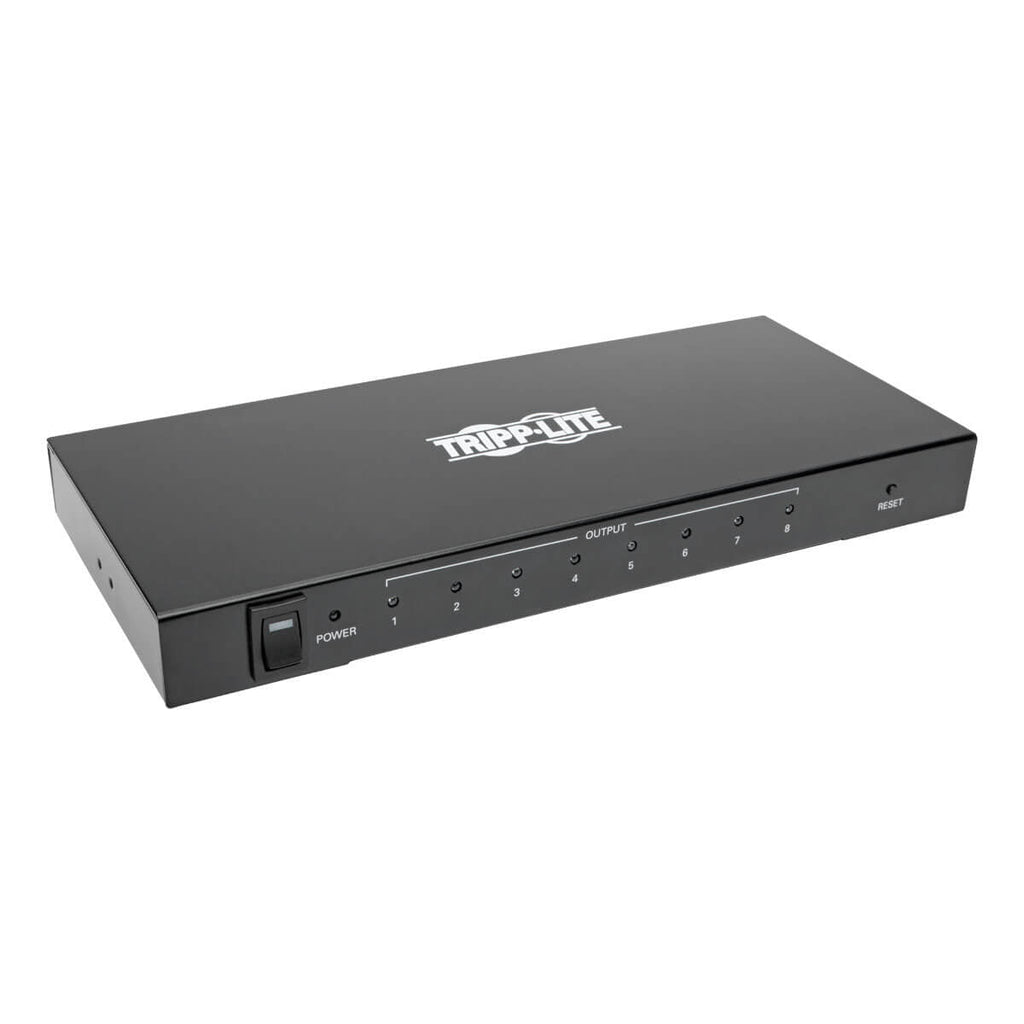

Tripp Lite B118-008-Uhd 8-Port Hdmi Splitter - 4K, Hdcp 1.3

Description :

8-Port HDMI Splitter - 4K, HDCP 1.3

Tripp Lite B118-008-UHD 8-Port HDMI Splitter - 4K, HDCP 1.3. Video port type: HDMI, Video out: 8x HDMI, Video in: HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Maximum operating distance: 12 m. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 1.5 A. Width: 154.9 mm, Depth: 68.6 mm, Height: 22.9 mm. Package width: 325.1 mm, Package depth: 259.1 mm, Package height: 71.1 mm

Tripp Lite's B118-008-UHD HDMI Splitter allows the 4K signal from a Blu-Ray player or other HDMI source device to be displayed on up to eight HDMI displays. You can also connect a DVI-D single-link display using an HDMI to DVI adapter, such as Tripp Lite's P566-Series. Installation is quick and simple with no software or drivers to install. Locate your HDMI source up to 16.4 feet (5 meters) from the splitter and the splitter up to 23 feet (7 meters) from the display for a maximum distance of 39.4 feet (12 meters) between splitter and display. Supports Full 3D and video resolutions up to 4K at 30 Hz (3840 x 2160). HDMI and 3D compliant with support for 36-bit Deep Color (12 bits per channel). Supports DTS-HD, Dolby True HD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio. HDCP and EDID compliant. Note: The B118-008-UHD sends the same image to all connected displays. If you would like to extend an image over multiple displays, you will need an MST hub, such as the B156-002-HD-V2.

Simultaneously transmit the video and audio from an HDMI source to multiple HDMI monitors
Supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video (3840 x 2160)
Supports 36-bit Deep Color (12 bits per channel)
Supports DTS-HD, Dolby True HD, Dolby Digital Plus and LPCM 7.1-channel surround sound
Supports video amplifier bandwidth of 340 MHz / 3.4 Gbps per channel (10.2 Gbps total)
HDCP and EDID compatible
Plug-and-play operation with no software required for easy, immediate installation
Supports Lip Sync pass-through
Supports xvYCC and x.vColor
Supports the use of DVI sources and displays with the use of an optional DVI to HDMI adapter (sold separately)
Supports a maximum distance of 16.4 ft. (5 m) from source to splitter and 23 ft. (7 m) from splitter to display for a total of up to 39.4 ft. (12 m)
Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 512.

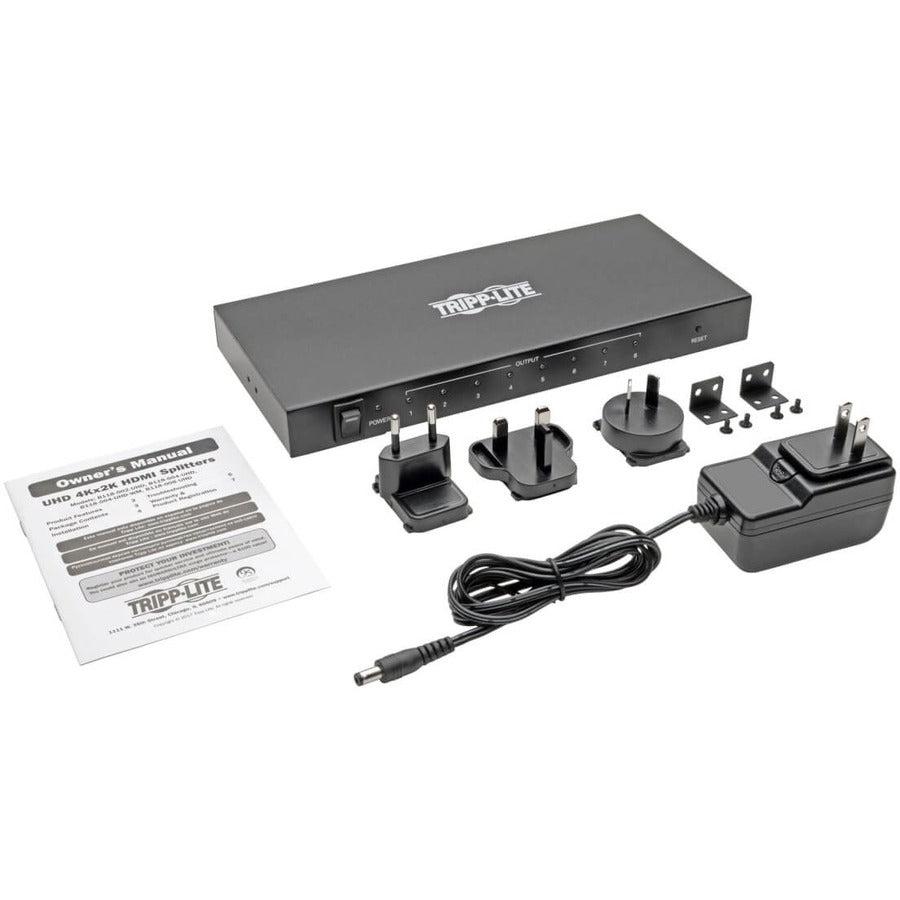

Power Supply includes international plug adapters (North America, Europe, UK and Australia)
