Tripp Lite B118-002-UHD-2 2-Port HDMI Splitter - HDCP 2.2, 4K @ 60 Hz, HDR, TAA. Video port type: HDMI, Video out: 2x HDMI, Connector(s): HDMI (FEMALE), HDMI (FEMALE) (X2). Maximum resolution: 3840 x 2160 pixels, Supported graphics resolutions: 3840 x 2160, Country of origin: Taiwan. Output voltage: 5 V, Output current: 1.2 A. Package width: 157.5 mm, Package depth: 182.9 mm, Package height: 53.3 mm. Master (outer) case width: 175.3 mm, Master (outer) case length: 569 mm, Master (outer) case height: 198.1 mm

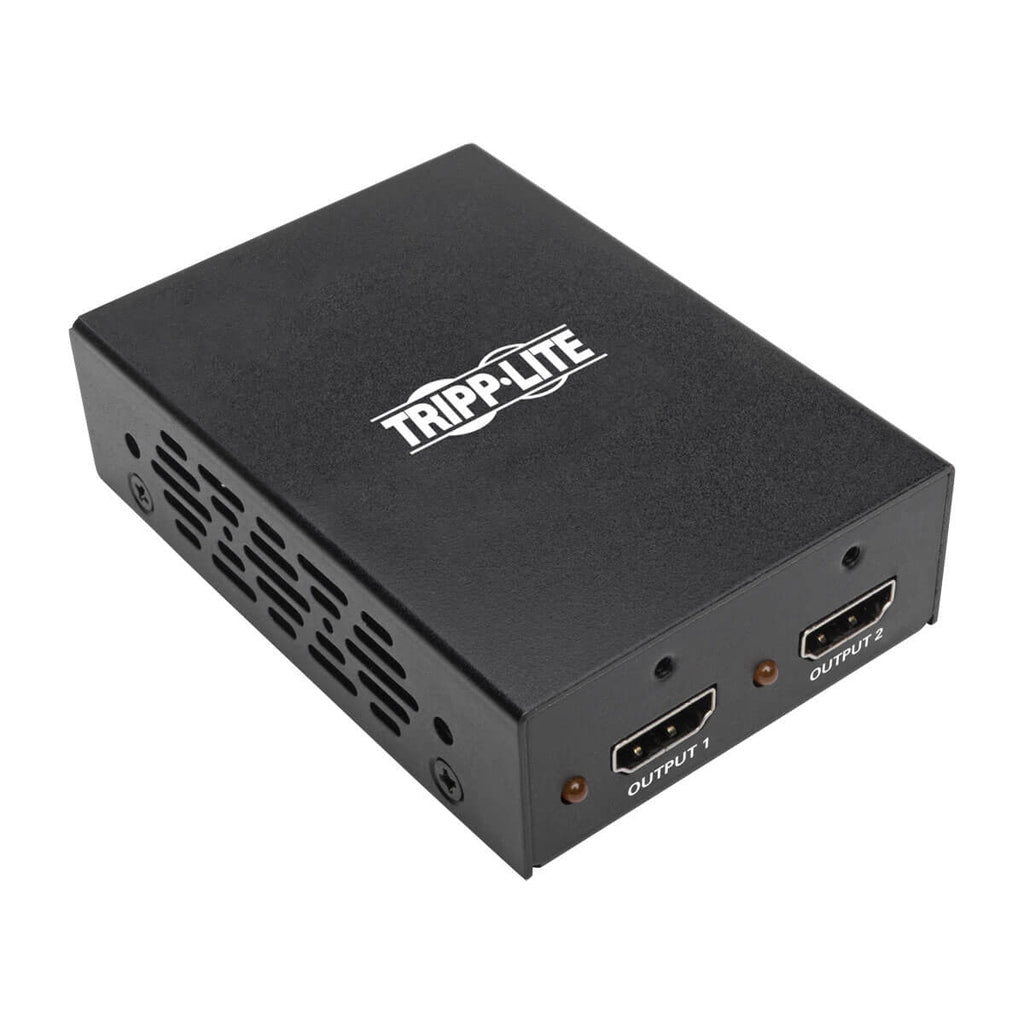

The B118-002-UHD-2 2-Port 4K 3D HDMI Splitter transmits a UHD 4K @ 60 Hz (3840 x 2160) audio/video signal from an HDMI source, such as a Blu-ray player or computer, to two HDMI monitors, projectors or televisions at the same time. Ideal for classrooms, churches, offices, restaurants, bars, trade shows and anywhere else featuring 4K x 2K digital signage, the B118-002-UHD-2 is quick and simple to install with no software or drivers necessary.
Using standard 28 AWG HDMI cabling, this splitter can transmit a 4K (3840 x 2160) signal up to 15 feet (4.6 meters). It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound, as well as 36-bit Deep Color (12 bits per channel). The Full 3D-compliant B118-002-UHD-2 also supports HDCP 2.2 for up-to-date content protection.
Note: The B118-002-UHD-2 sends the same image to all connected displays. If you would like to extend an image over multiple displays, you will need an MST hub, such as the B156-002-HD-V2.
Transmits a 4K HDMI A/V Signal to 2 HDMI Displays Simultaneously Recommended for 4K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc. Distributes A/V signals up to 15 ft. (4.6 m) when used with standard 28 AWG HDMI cable Supports UHD resolutions up to 4K @ 60 Hz for crystal-clear video Compliant with HDCP 2.2 and EDID to ensure compatibility with latest A/V hardware Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 32.
Supports the Most Up-To-Date Features and Formats Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy Full 3D DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio 36-bit Deep Color (12 bits per channel) Video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total) Lip sync pass-through, xvYCC and x.vColor

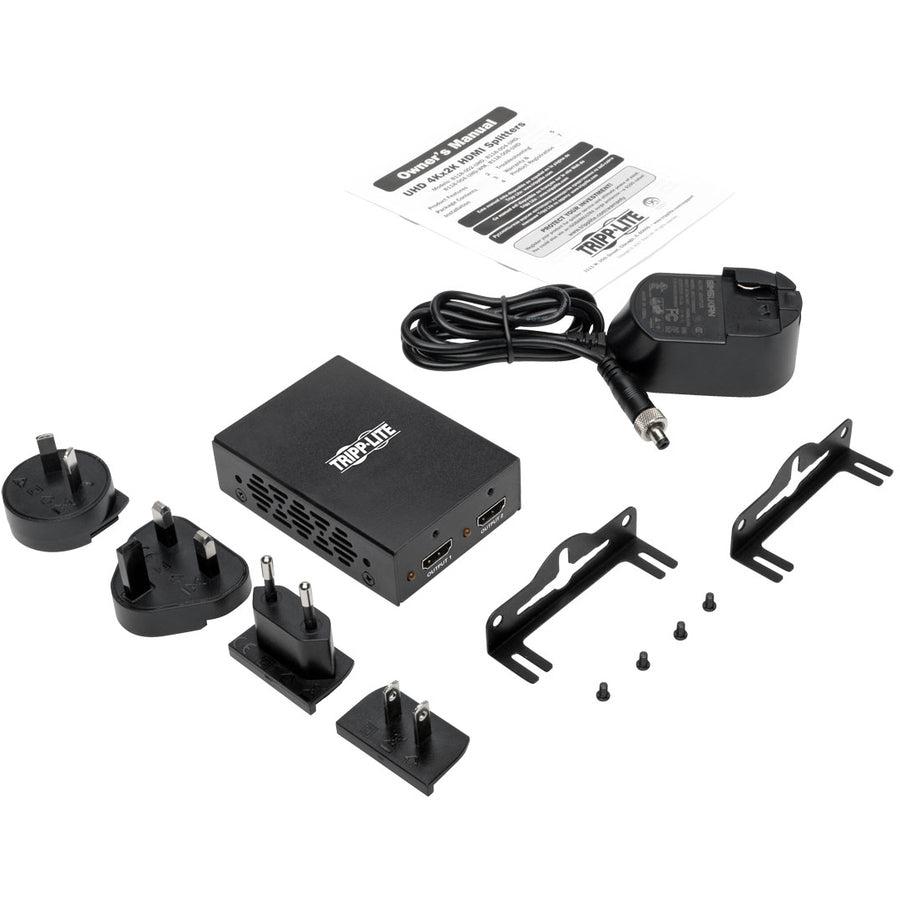

Easy to Use Almost Anywhere Plug-and-play operation with no software required for easy, immediate installation Supports desktop use or wall-mounting using included hardware Power supply includes international plug adapters (North America, Europe, U.K. and Australia)
TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
