Tripp Lite 8-Port Vga + Audio Over Cat5/Cat6 Extender/Splitter, Box-Style Transmitter W/Edid, 1920 X 1440 @ 60 Hz, Up To 1,000 Ft.

Description :

8-Port VGA + Audio over Cat5/Cat6 Extender/Splitter, Box-Style Transmitter w/EDID, 1920 x 1440 @ 60 Hz, Up to 1,000 ft.

Tripp Lite 8-Port VGA + Audio over Cat5/Cat6 Extender/Splitter, Box-Style Transmitter w/EDID, 1920 x 1440 @ 60 Hz, Up to 1,000 ft.. Type: AV transmitter, Maximum resolution: 1920 x 1440 pixels, Cable types supported: Cat5,Cat6. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Dimensions (WxDxH): 236 x 99.1 x 305 mm, Width: 236.2 mm, Depth: 99.1 mm. Package width: 353.1 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Cables included: Audio (3.5mm), VGA

Works with Tripp Lite’s B132-Series receivers to transmit a VGA + audio signal to 9 sets of displays and speakers (8 remote, 1 local) up to 1,000 ft. away. Ideal for digital signs, trade shows and classrooms.
- Requires Tripp Lite remote receivers (sold separately)
- Extends 1024 x 768 @ 60 Hz audio/video signal up to 1,000 ft.
- Extends 1920 x 1440 @ 60 Hz audio/video signal up to 500 ft.
- Daisy-chain up to 6 units to extend signal to 49 displays
- Plug and play—no software or drivers to install

The B132-008A-2 8-Port VGA + Audio over Cat5/Cat6 Extender/Splitter works with a B132-100A or B132-100A-WP-1 remote receiver to split a VGA audio/video signal into nine separate signals—one local and eight remote. It’s ideal for digital signs, trade shows and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.

The B132-008A-2 uses VGA cable(such as Tripp Lite’s P504-Series) to connect to the source and displays and Cat5e/6 cable to transmit to the remote receivers. For best results, use 24 AWG solid-wire N022-01K-GY(Cat5e) or N222-01K-GY(Cat6) cable.

When used with Tripp Lite’s B132-Series active remote receivers, the B132-008A-2 can extend a 1920 x 1440(60 Hz) signal up to 500 feet and a 1024 x 768(60 Hz) signal up to 1,000 feet. By daisy-chaining up to six units, one audio/video source can transmit to as many as 49 displays—48 remote and one local.

Add up to three B132-110A remote repeaters to each channel to fully extend the signal range or add more displays. You can extend a 1920 x 1440(60 Hz) signal up to 500 feet or a 1024 x 768(60 Hz) signal up to 1,000 feet from the first repeater in the chain to the last receiver.

The B132-008A-2 also delivers high-quality audio and copies EDID information from a connected display to ensure optimal compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

Transmits a Single High-Definition VGA + Audio Signal to 9 Sets of Displays/Speakers
- Ideal for applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source
- Splits one VGA + audio signal into 9 separate signals(8 remote, 1 local)
- Tripp Lite B132-100A or B132-100A-WP-1 remote receiver required for each remote signal

Daisy-Chain Units to Reach More Remote Displays
- Daisy-chain up to 6 units to extend the original audio/video signal to as many as 49 displays(48 remote, 1 local)
- Connects to next link in chain with one Cat5/Cat6 cable, such as Tripp Lite 24 AWG solid-wire N022-01K-GY(Cat5e) or N222-01K-GY(Cat6) cable
- Add up to 3 B132-110A remote repeaters to each channel to extend signal range or add displays

Extends Signals Up to 1,000 ft.
Extends a 1920 x 1440(60 Hz) signal up to 500 ft. away from the audio/video source
Extends a 1024 x 768(60 Hz) signal up to 1,000 ft. away from the audio/video source
Supports high-quality audio

Easy to Set Up and Use
- Plug-and-play engineering—no software or drivers to download and install
- Connects quickly to source and displays with VGA cable, such as Tripp Lite’s P504-Series
- LEDs indicate at a glance when the unit is receiving power and a VGA signal from the source

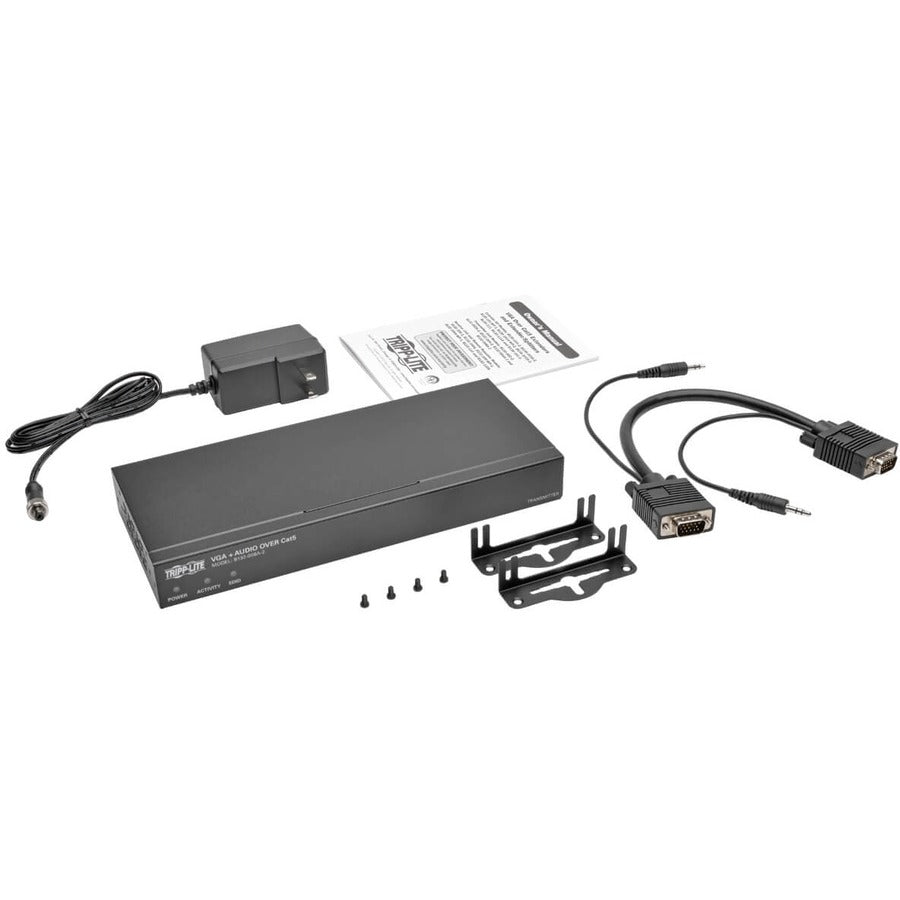

- Included mounting hardware lets you install the unit on a wall, rack or pole

TAA-Compliant
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
