Tripp Lite 4-Port Vga With Audio Over Cat5 / Cat6 Extender Splitter, Box-Style Transmitter With Edid, 1920 X 1440 At 60Hz, Up To 305 M (1,000-Ft.)

Description :

4-Port VGA with Audio over Cat5 / Cat6 Extender Splitter, Box-Style Transmitter with EDID, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.)

Tripp Lite 4-Port VGA with Audio over Cat5 / Cat6 Extender Splitter, Box-Style Transmitter with EDID, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.). Type: AV transmitter, Maximum resolution: 1920 x 1440 pixels, Cable types supported: Cat5e,Cat6. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Dimensions (WxDxH): 134.6 x 99.1 x 30.5 mm, Width: 127 mm, Depth: 101.6 mm. Package width: 160 mm, Package depth: 256.5 mm, Package height: 63.5 mm. Cables included: VGA

Tripp Lite's B132-004A-2 allows you to split a single VGA and Audio signal into 5 (1 local, 4 remote). Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) signal up to 152.4 m (500-ft.), or a 1024 x 768 (60Hz) signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 152.4 m (500-ft.) from the first repeater in the chain to the last receiver. Support for video resolutions up to 1920 x 1440 (60Hz). A 1024 x 768 (60Hz) signal can be extended up to 304.8 m (1,000-ft.) from the first repeater in the chain to the last receiver. For optimal video image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc.

- Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
- EDID copy feature ensures optimal display compatibility
- Extends a 1920 x 1440 (60Hz) signal up to 152.4 m (500-ft.), or a 1024 x 768 (60Hz) signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- Can further expand the range and number of monitors by adding B132-110A repeaters
- For optimal image quality between 500 and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

- Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
- Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together
- A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
- Support for video resolutions up to 1920 x 1440 (60Hz)
- Extends a 1920 x 1440 (60Hz) signal up to 152.4 m (500-ft.), or a 1024 x 768 (60Hz) signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- EDID copy feature ensures optimal display compatibility
- The range and number of monitors can be further expanded by adding B132-110A repeater units
- Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location
- A 1920 x 1440 (60Hz) signal can be extended up to 152.4 m (500-ft.) from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 304.8 m (1,000-ft.) from the first repeater in the chain to the last receiver.
- For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

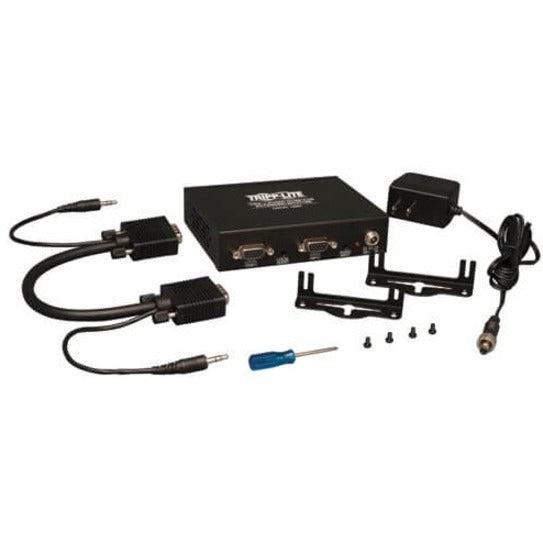

- Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted.
- Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
- Ideal for digital signage situations, such as retail, schools, churches, etc.International AC Adapter B110-INT required for use with UK, European, and Australian power connections
