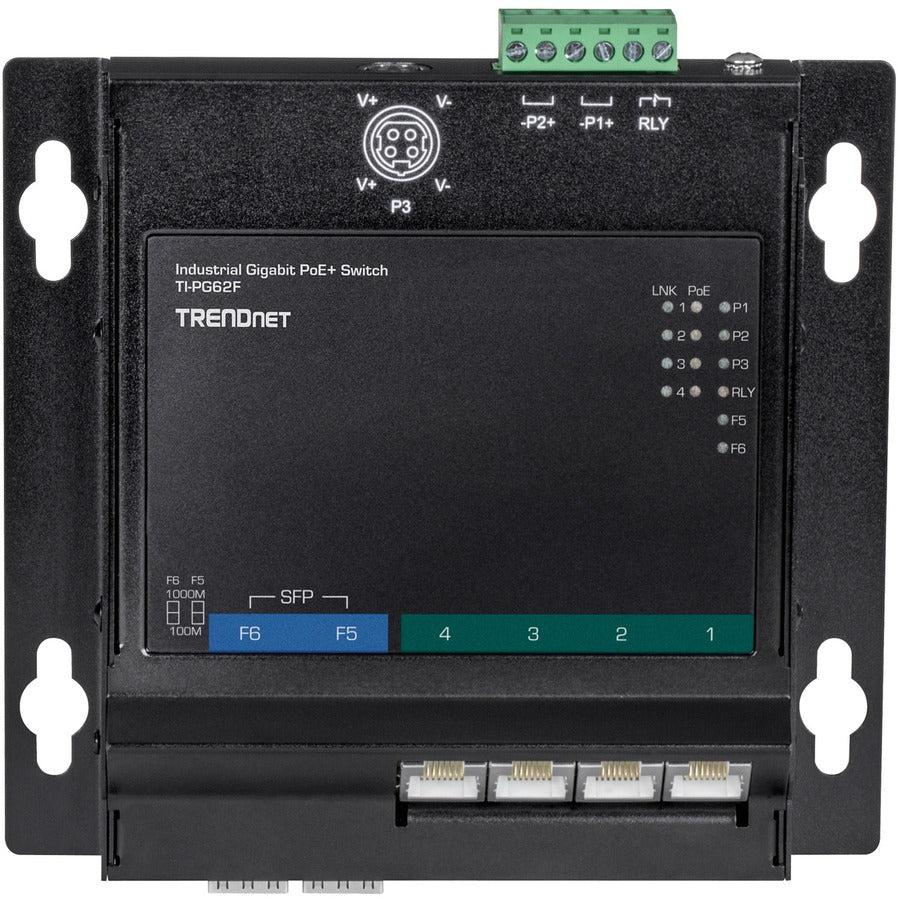

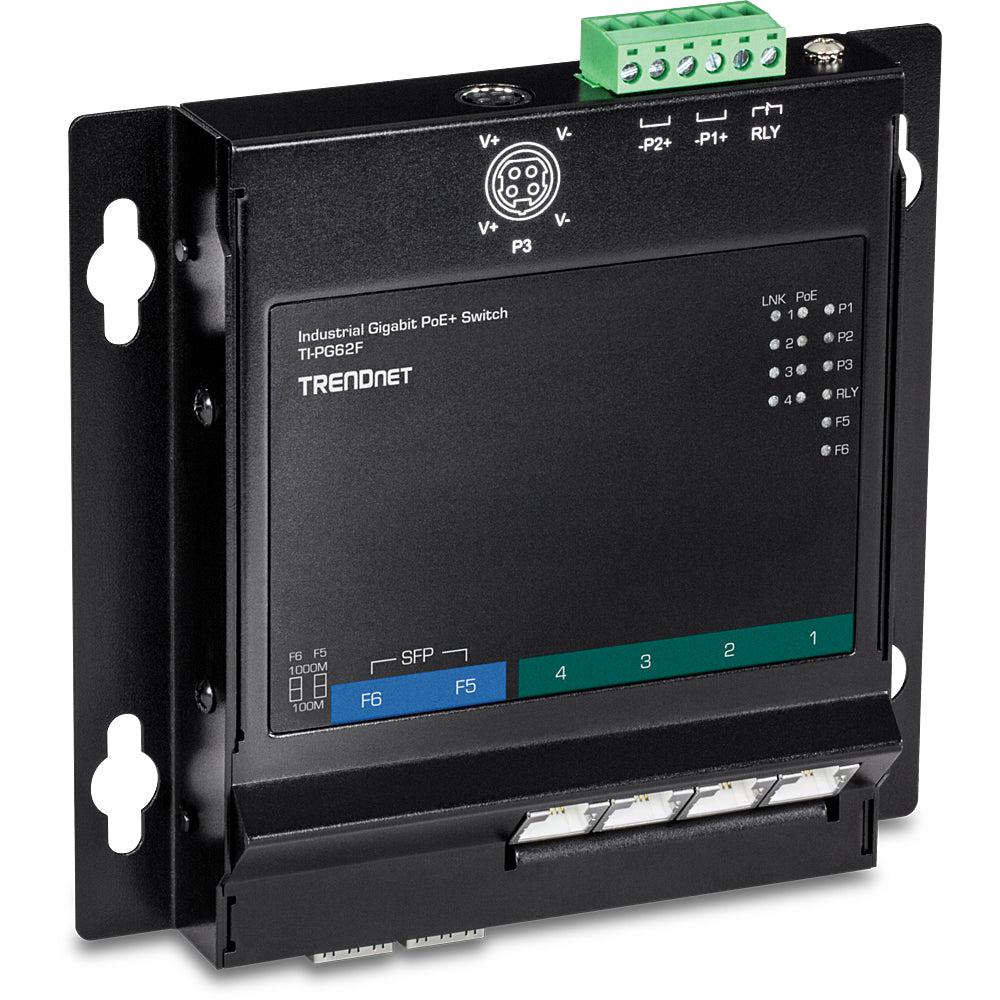

Trendnet Ti-Pg62F Network Switch Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe) Black

Description :

12Gbps, 8.9Mpps, 4x 1G RJ-45 PoE+, 2x 1G SFP, IP30, 150x145x26.7 mm

Trendnet TI-PG62F. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 1000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.

PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.

Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

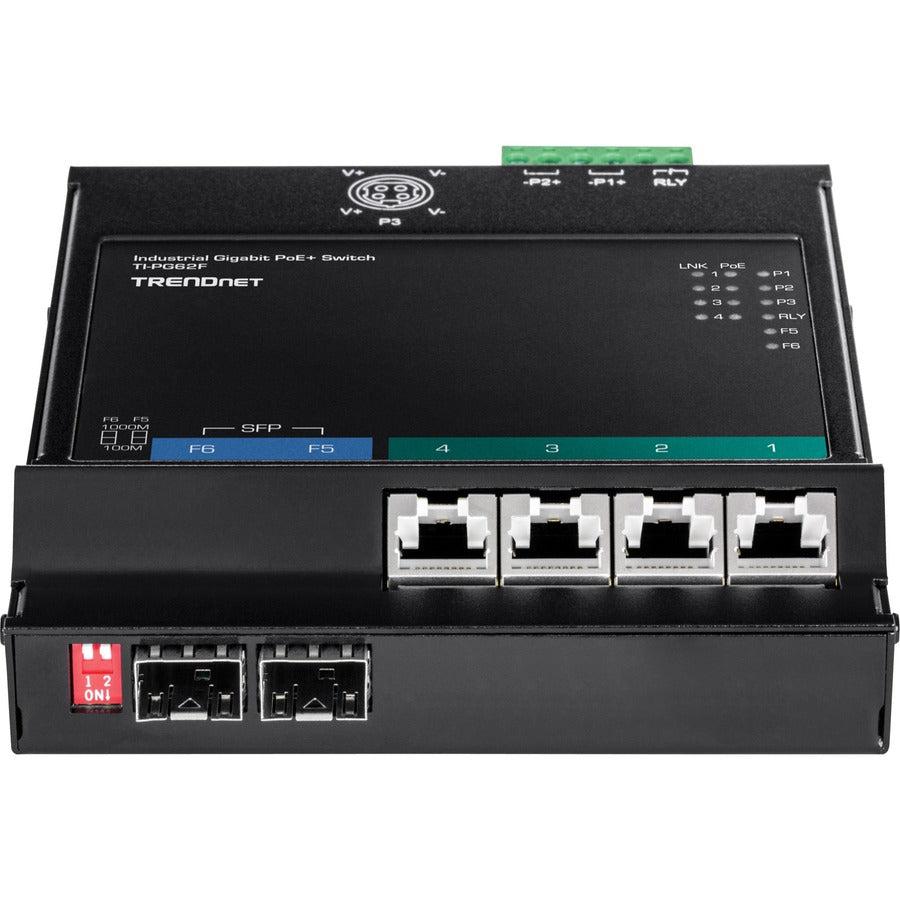

Network Ports
4 x Gigabit PoE+ ports, and 2 x Gigabit SFP Slots

PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget

Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation

Compact
The flat and compact size is ideal for cabinet installations where space is limited

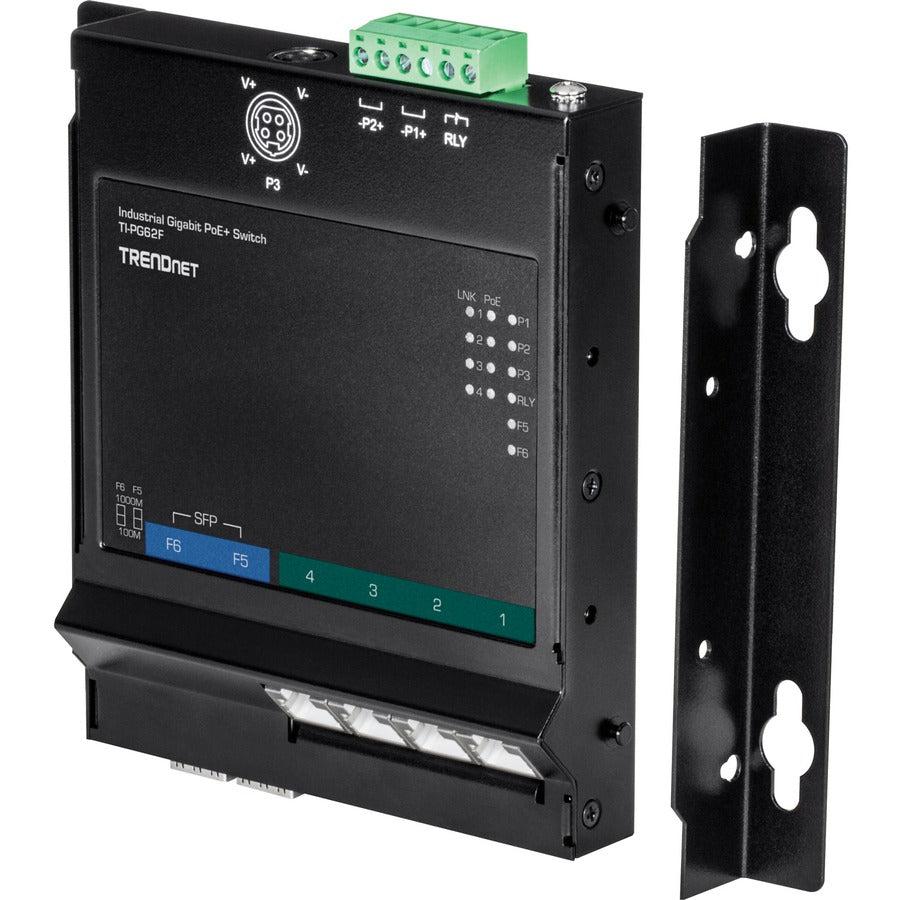

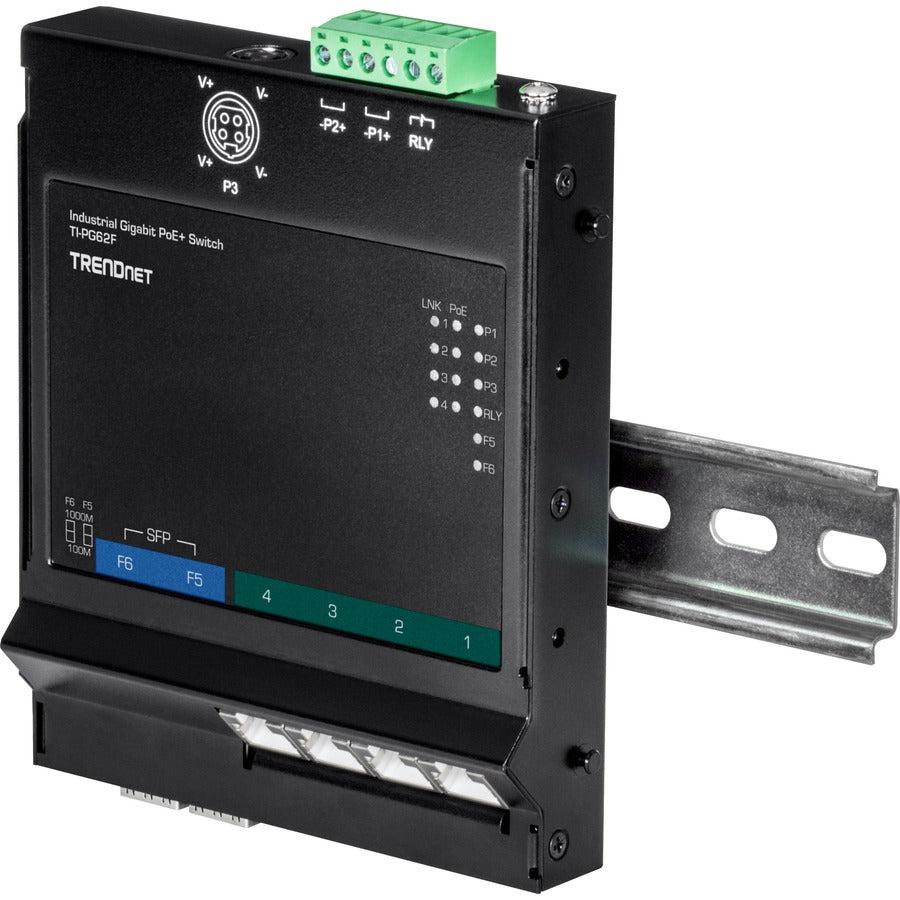

Mounting Hardware
Includes DIN-Rail bracket and magnetic wall mount kit

Switching Capacity
12Gbps switching capacity

Redundant Power
Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (Power supply sold separately, models: TI-S12048, TI-S24048, and 48VDC3000)

Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs

Jumbo Frames
Sends larger packets, or jumbo frames (up to 10KB), for increased performance

Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments

Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings

Electro Magnetic Compliance
Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV

LED Indicators
LED indicators convey power and port status

Grounding Point
Grounding point protects equipment from external electrical surges
