Trendnet Ti-Pg50 Network Switch Unmanaged Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe) Black

Description :

5-Port Industrial Gigabit PoE Switch with DIN mount kit

Trendnet TI-PG50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable, Rack mounting

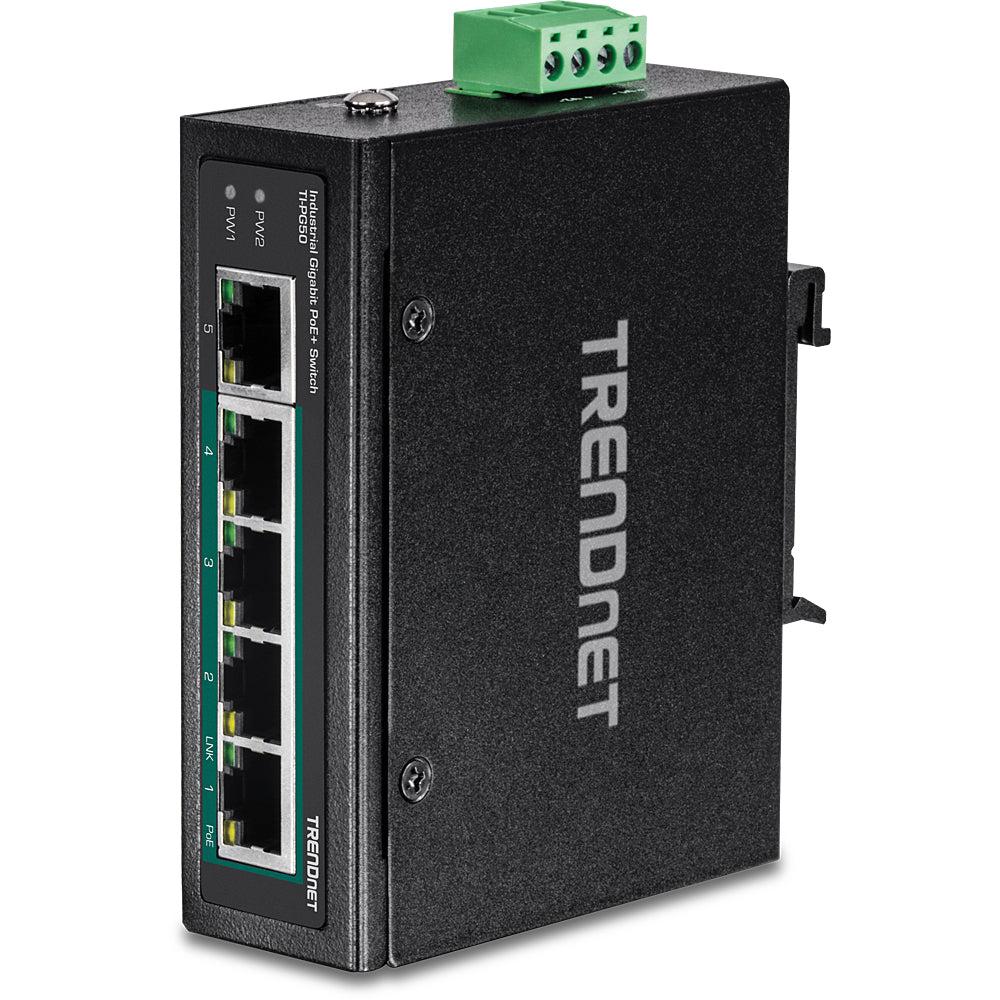

TRENDnet’s 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.


PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance
The industrial switch features redundant power inputs with overload current protection.

Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port on the industrial PoE switch with a 120W PoE power budget

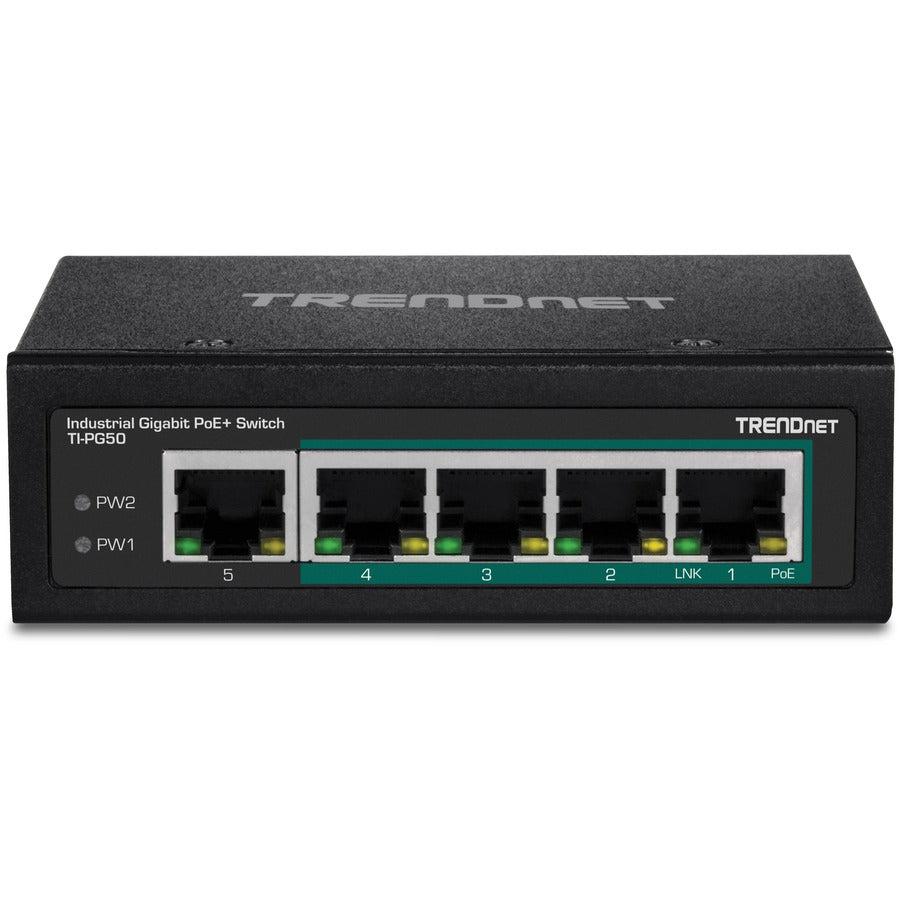

Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port

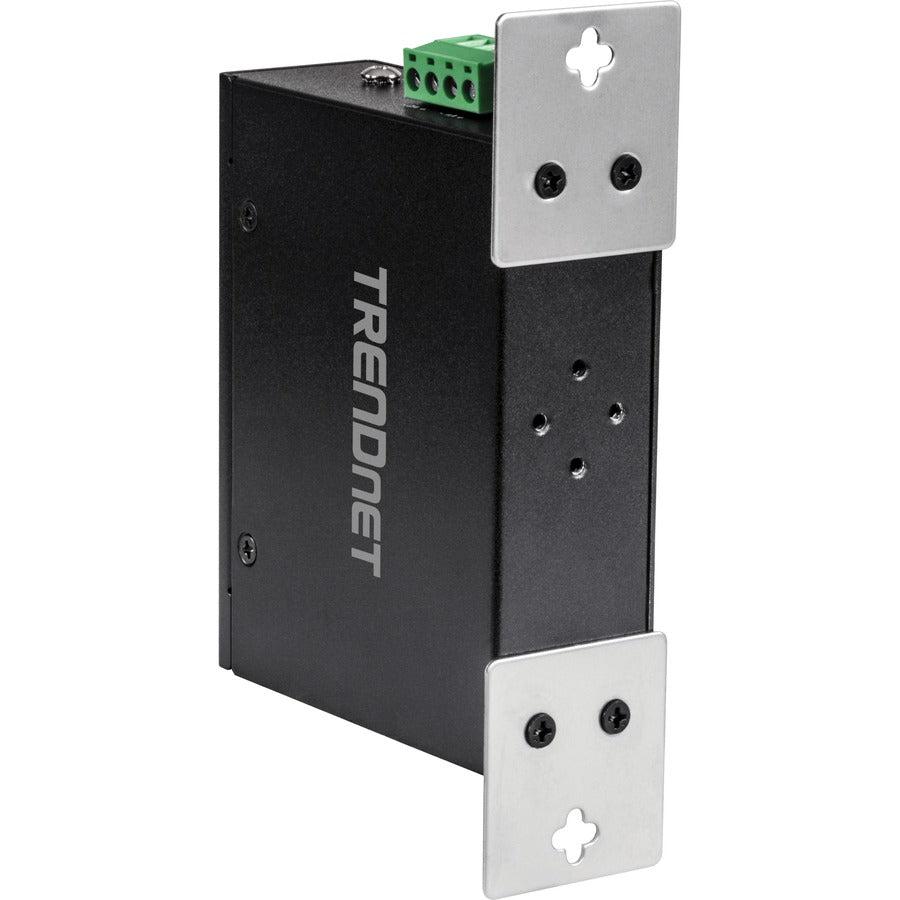

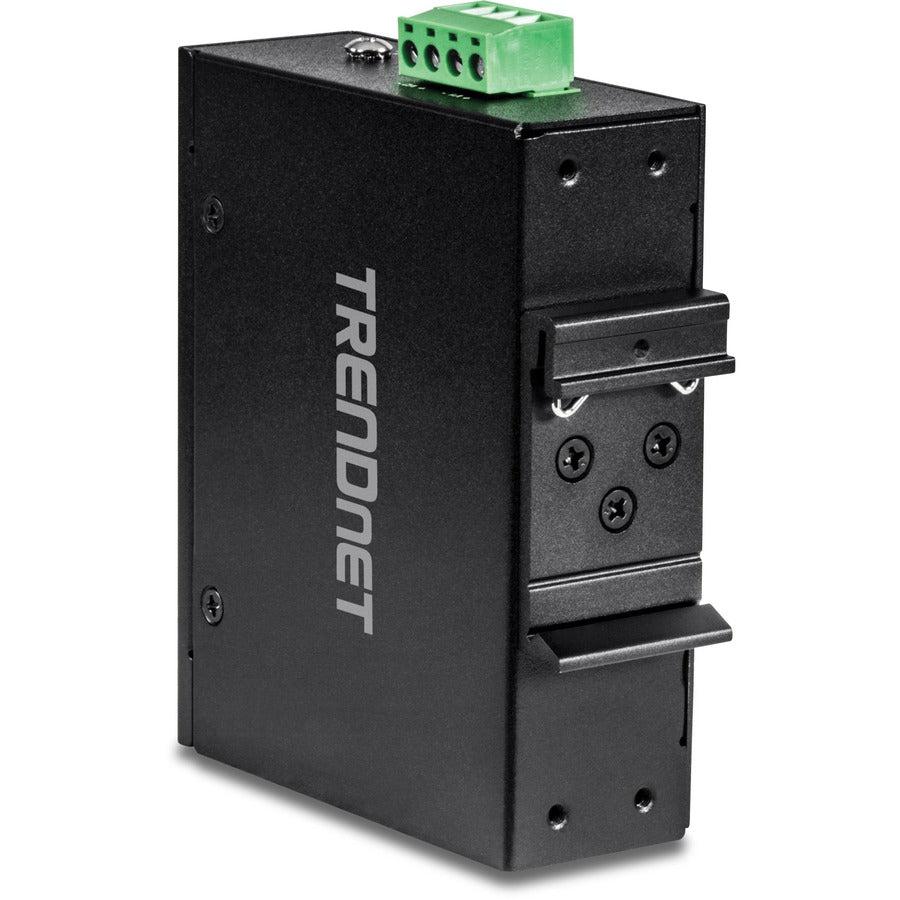

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity
10Gbps switching capacity

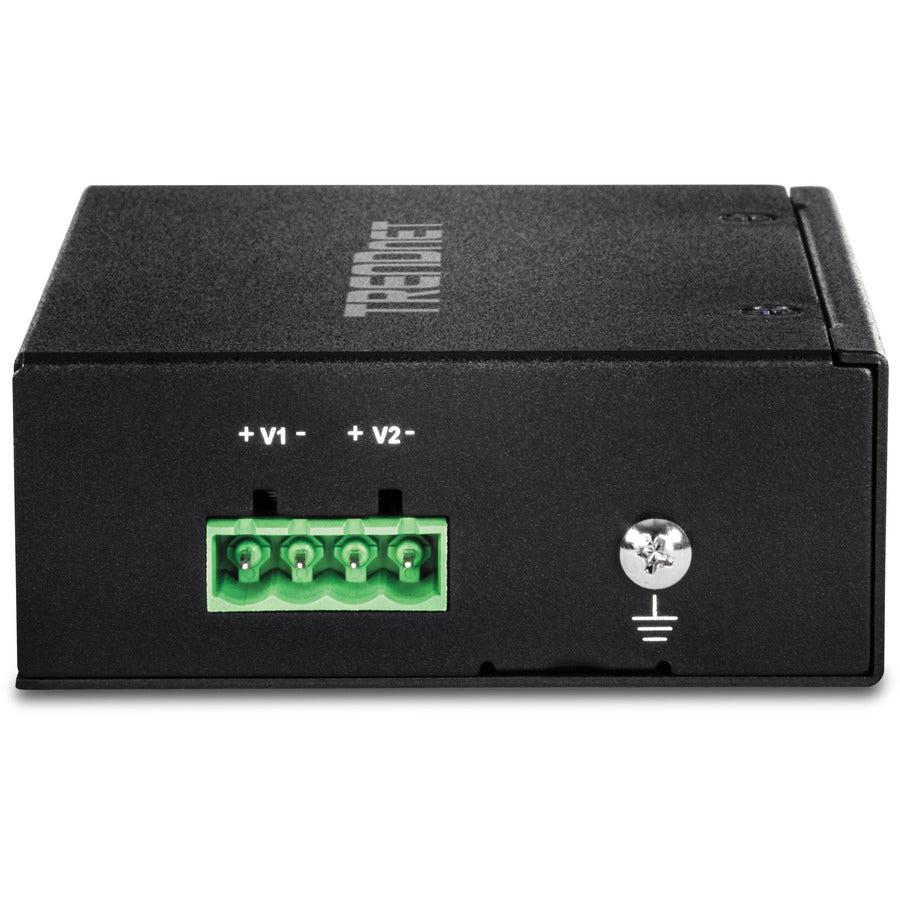

Redundant Power
Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures
Industrial switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges
