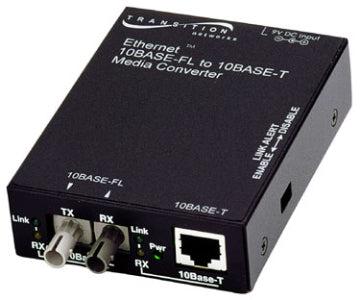

Transition Networks E-Tbt-Frl-05(Sc) Network Media Converter 10 Mbit/S 850 Nm Multi-Mode

Description :

Ethernet Copper to Fiber Media Converter, 10BASE-T (RJ-45) [100 m/328 ft.], 10BASE-FL 850nm multimode (SC) [2 km/1.2 mi.]

Transition Networks E-TBT-FRL-05(SC). Maximum data transfer rate: 10 Mbit/s, Converter input interface: 10Base-T, Networking standards: IEEE 802.3. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Safety: UL, C-UL, Certification: FCC A, CISPR22/EN55022 A, EN55024, EN61000, CE. Package weight: 900 g

Extend Network Distance
Two 10BASE-T to 10BASE-FL Media Converters used back-to-back extend the distance between two 10BASE-T devices up to 5 km (3.1 mi.) using multimode fiber or up to 40 km (24.9 mi.) using single mode fiber without a repeater.

Connect Unlike Devices
Connect your workgroup to a distant server or a central switch; or extend distances between like and unlike devices in either full or half-duplex modes.

- AutoCross™
Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
- Link Pass Through
Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.
- Automatic Link Restoration
Transition Networks's converters will automatically re-establish link in all network conditions.
