Transition Networks Crs2F3114-100 Serial Converter/Repeater/Isolator Rs-232 Fiber (Sc)
Transition Networks Crs2F3114-100 Serial Converter/Repeater/Isolator Rs-232 Fiber (Sc)
SKU:CRS2F3114-100
Regular price
$442.44
Regular price
Sale price
$442.44
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :

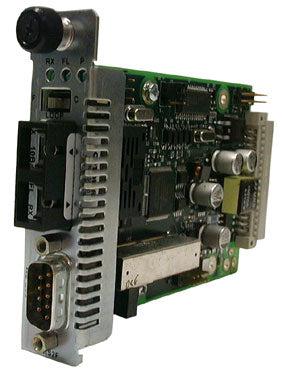

Point System Slide-In-Module Media Converter, DB-9 [15 m/49 ft.], 1310nm single mode (SC) [20 km/12.4 mi.]Transition Networks CRS2F3114-100. Dimensions (WxDxH): 22 x 127 x 86 mm. Certification: CISPR22/EN55022 A + EN55024; EN60950 A; FCC A; CE
Transition Networks's serial RS232 to Fiber Media Converter allows you to extend the distance between serial connections with the use of fiber optic cable. This full-featured converter transmits the full complement of RS232 flow control/handshaking signals optically and supports full or half-duplex asynchronous data transmission at speeds up to 115Kb/s.
The diagnostic features included on this converter make installation easy and intuitive. A DTE/DCE switch eliminates the frustration over selecting the appropriate cable. A loop-back switch allows for complete diagnostic testing prior to system turn-up or during troubleshooting. Unit and Port LEDs allow for quick status information of the converter.
Specifications :
General Information
| Manufacturer | Transition Networks, Inc |
|---|---|
| Manufacturer Website Address | http://www.transition.com |
| Brand Name | Transition Networks |
| Product Line | Point System |
| Product Model | CRS2F3114-100 |
| Product Name | Point System RS232 Copper to Fiber Media Converter |
| Product Type | Transceiver/Media Converter |
| UPC | 648177011667 |
| Height | 3.4" |
|---|---|
| Width | 3.4" |
| Depth | 5" |
| Limited Warranty | Lifetime |
|---|
