Transition Networks

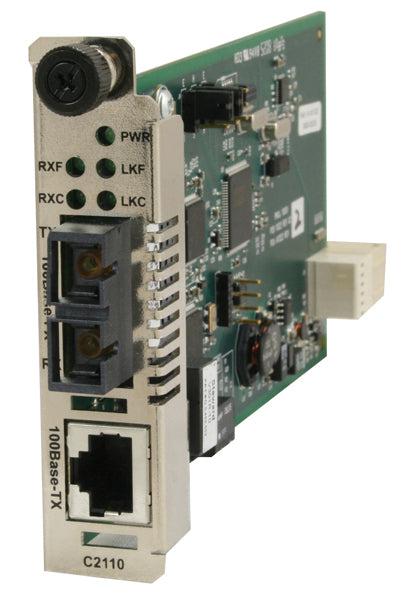

Transition Networks C2110-1039 Network Media Converter Internal 100 Mbit/S 1300 Nm Multi-Mode
Transition Networks C2110-1039 Network Media Converter Internal 100 Mbit/S 1300 Nm Multi-Mode
SKU:C2110-1039
Regular price
$256.89
Regular price
Sale price
$256.89
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
100BASE-TX (RJ-45) 100m, 100BASE-FX 1300nm multimode (LC) 2kmTransition Networks C2110-1039. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Fiber optic connector: LC. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Power consumption (typical): 2.5 W. Package weight: 450 g
- Auto-Negotiation of speed and duplex on TP port
- AutoCrossâ„¢ on TP port
- Link Pass Through (LPT) fault monitoring
- Far-End-Fault (FEF) detection
- Automatic Link Restoration
- Pause advertisement
- Remote Firmware Upgrade
- Can be used in any ION Platform Chassis
- Standards based, will link with any standard 100Base-TX and any standard 100Base-FX ports
- The following manageable features are available when used in an ION chassis along with an ION Management Module
Specifications :
General Information
| Manufacturer | Transition Networks, Inc |
|---|---|
| Manufacturer Part Number | C2110-1039 |
| Manufacturer Website Address | http://www.transition.com |
| Brand Name | Transition Networks |
| Product Series | C2110 |
| Product Model | C2110-1039 |
| Product Name | Fast Ethernet Media Converter 100BASE-TX to 100BASE-FX |
| Product Type | Transceiver/Media Converter |
| UPC | 648177030651 |
| Ethernet Technology | Fast Ethernet |
|---|
| Network (RJ-45) | Yes |
|---|
| Height | 3.4" |
|---|---|
| Width | 0.9" |
| Depth | 6.5" |
| Environmentally Friendly | Yes |
|---|---|
| Environmental Certification | WEEE |
| Limited Warranty | Lifetime |
|---|
