Thermaltake Smart Pro Rgb Ps-Spr-0650Fpcbus-R 650W 80 Plus Bronze Atx12V 2.4 & Eps12V 2.92 Power Supply W/ Active Pfc & Full Modular (Black)

Thermaltake Smart Pro Rgb Ps-Spr-0650Fpcbus-R 650W 80 Plus Bronze Atx12V 2.4 & Eps12V 2.92 Power Supply W/ Active Pfc & Full Modular (Black)


Regular price $91.54
Regular price Sale price $91.54
Sale Sold out
Shipping calculated at checkout.
          View full details
          Reviews, Que. & Ans.

          Description :

          • Intel ATX 12V v2.4 & EPS 12V v2.92
          • Full Modular
          • 80 PLUS BRONZE Certified
          • 100 - 240 V 50/60 Hz
          • +3.3V@22A, +5V@22A, +12V@54.2A, -12V@0.3A, +5VSB@2.5A

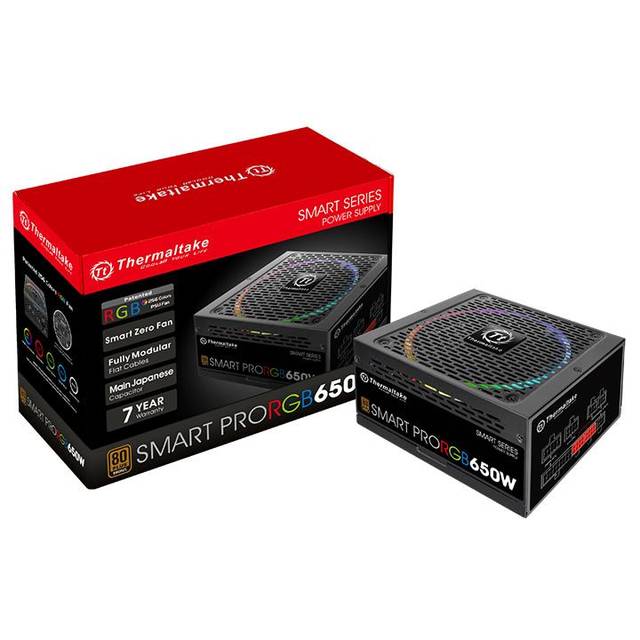

          Smart Pro RGB 650W Bronze Fully Modular

          Thermaltake, as the pioneer who incorporates RGB lights into PSU, has launched the Thermaltake Smart Pro RGB Bronze Series, coming with a pre-installed, patented 256 Colors Riing 14 RGB fan with 5 lighting modes to choose from and built-in memory.

          Featuring capacities ranging from 650W to 850W and 80 PLUS Bronze certification, Smart Pro RGB Bronze Series adopts the highest quality components and fully modular design that always accommodate any mainstream build under any circumstances.


          One Button to Your Desired Color

          By pressing the RGB lighting button, the fan color can be switched among a 256 Color RGB Cycle with variants including Solid Red, Green, Blue, White, and a LED Off mode. The fan is also constructed with a built-in memory function, saving the color applied and insuring the same color selection every time you boot your PC.

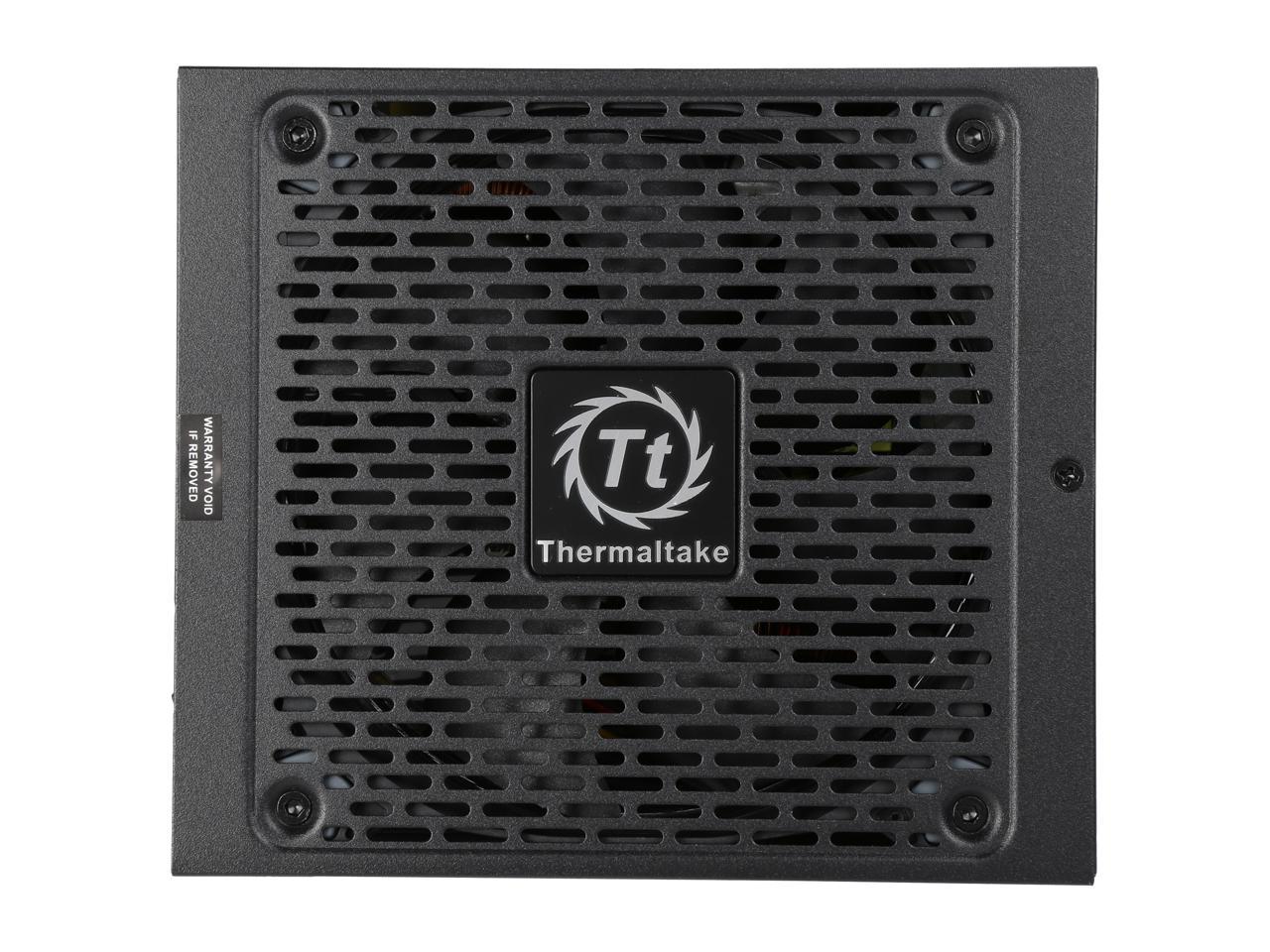

          Power Supply Fan Face-Up Placement for Better Cooling

          With the face-up placement of the fan, users can freely gaze upon their patented circular 256 multi-colored RGB fan and at the same time obtaining additional performance by using the fan as a additional exhaust mechanism, repelling unwanted heat from your chassis. As the thermal image testing shown, the temperature of PSU and computer system will decrease around 3°C (5.4 °F) by placing PSU face-up.


          Riing 14 RGB Fan with Concentrated Compression Fan Blade

          The fan blade is designed for high static pressure requirements of demanding applications; the concentrated compression blade is engineered to focus the weaker, inner circle of air outward, allowing the outer section to pressurize the air. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise, and the anti-vibration mounting system strengthens the product’s stability during operation. Moreover, In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.


          Ultra Quiet Smart Zero Fan

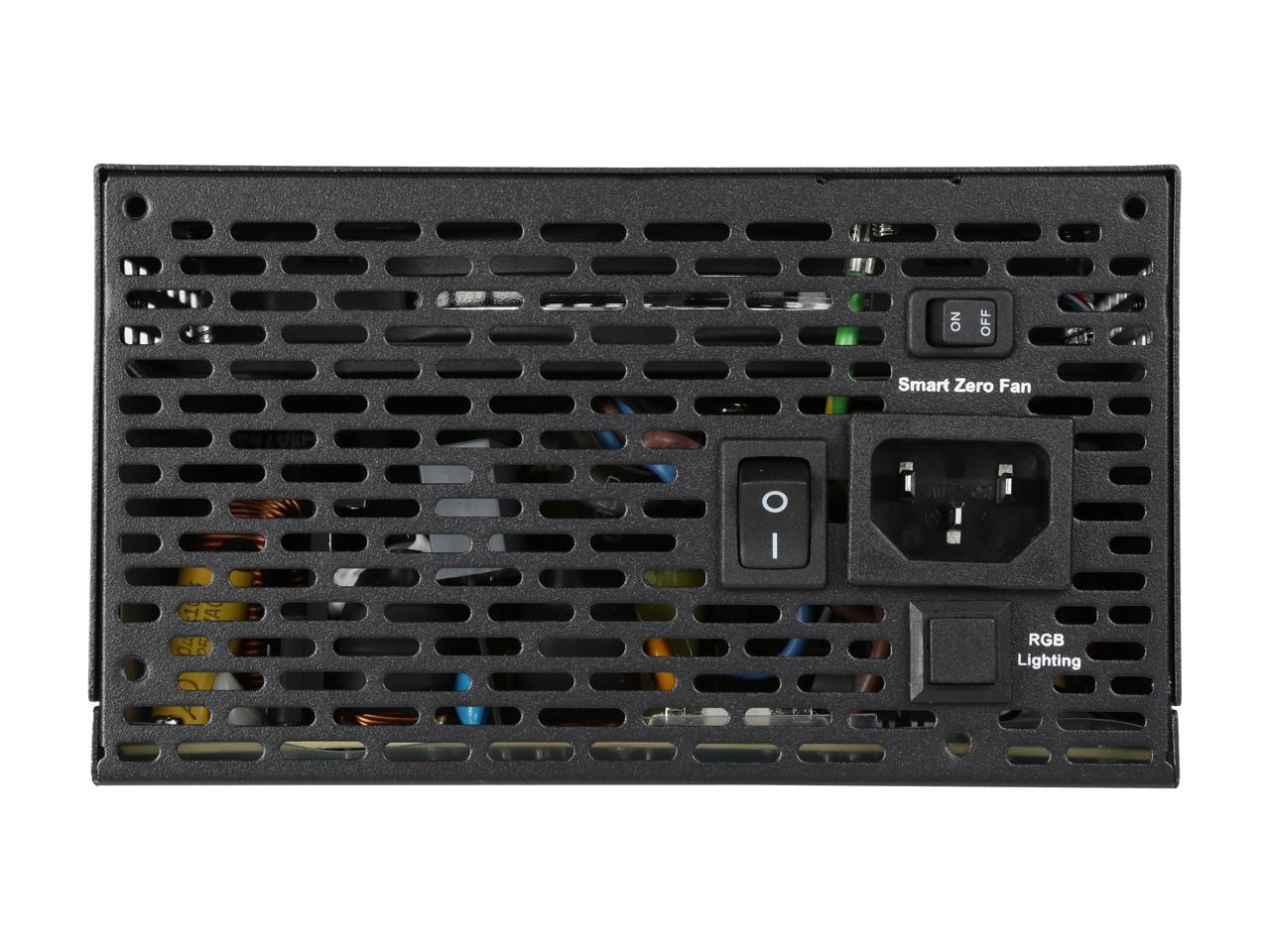

          Smart Zero Fan ensures zero noise when the fan operates below approximately 10% working load to minimize audible noise. The fan will operate when the power supply working load over 10%. A switch is provided for those who prefer the fan to spin constantly.


          < 50 mV Low Ripple Noise

          All ripples are lower than 50mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.


          Strict Voltage Regulation < ±3%

          The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the greater performance. The strict voltage regulation of the Smart Pro RGB Bronze Series is better than Intel’s standard ±5% for major rails and ±10% for -12V.


          100% High Quality Japanese 105°C/221°F Capacitors

          100% high quality 105 °C (221 ° F) Japanese made capacitors which greatly improve the durability and offer the highest stability and reliability.


          High Amperage Single +12V Rail & DC to DC Design

          Smart Pro RGB 650W Bronze is equipped with a powerful single +12V rail, eliminating the limitations caused by voltage distributions, delivering the power your CPU and VGA demand in any situations. Besides, with DC to DC design, the unit optimizes maximum energy harvest for computer systems, providing the best compatibility, conversion efficiency and stable voltage output.

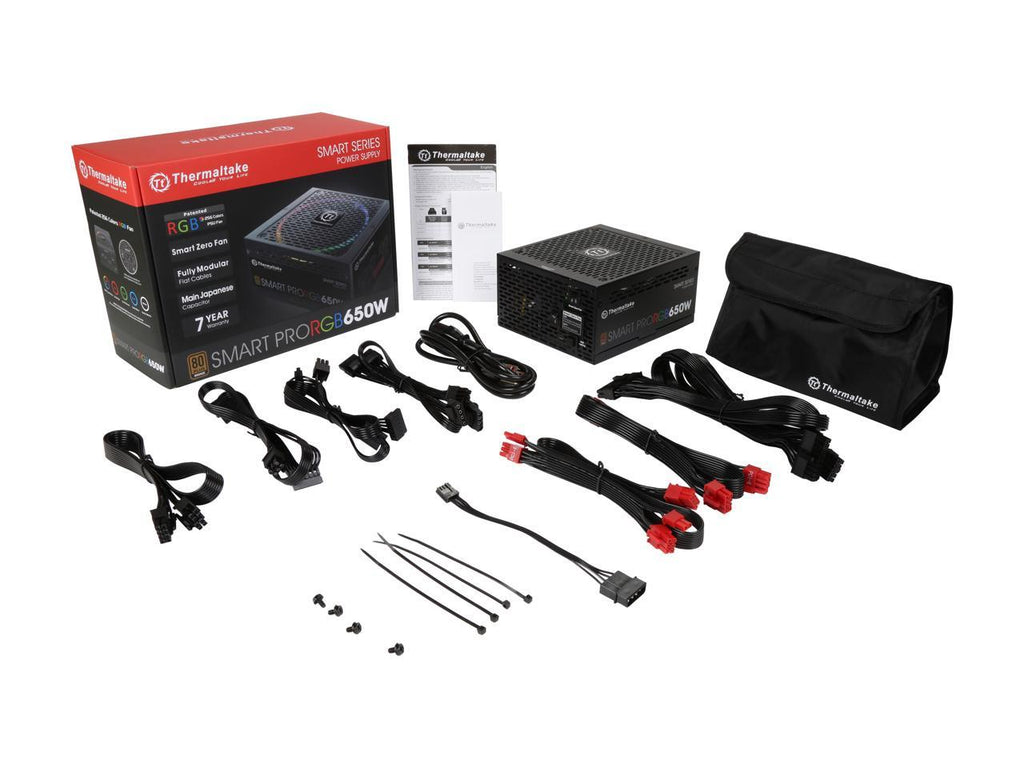

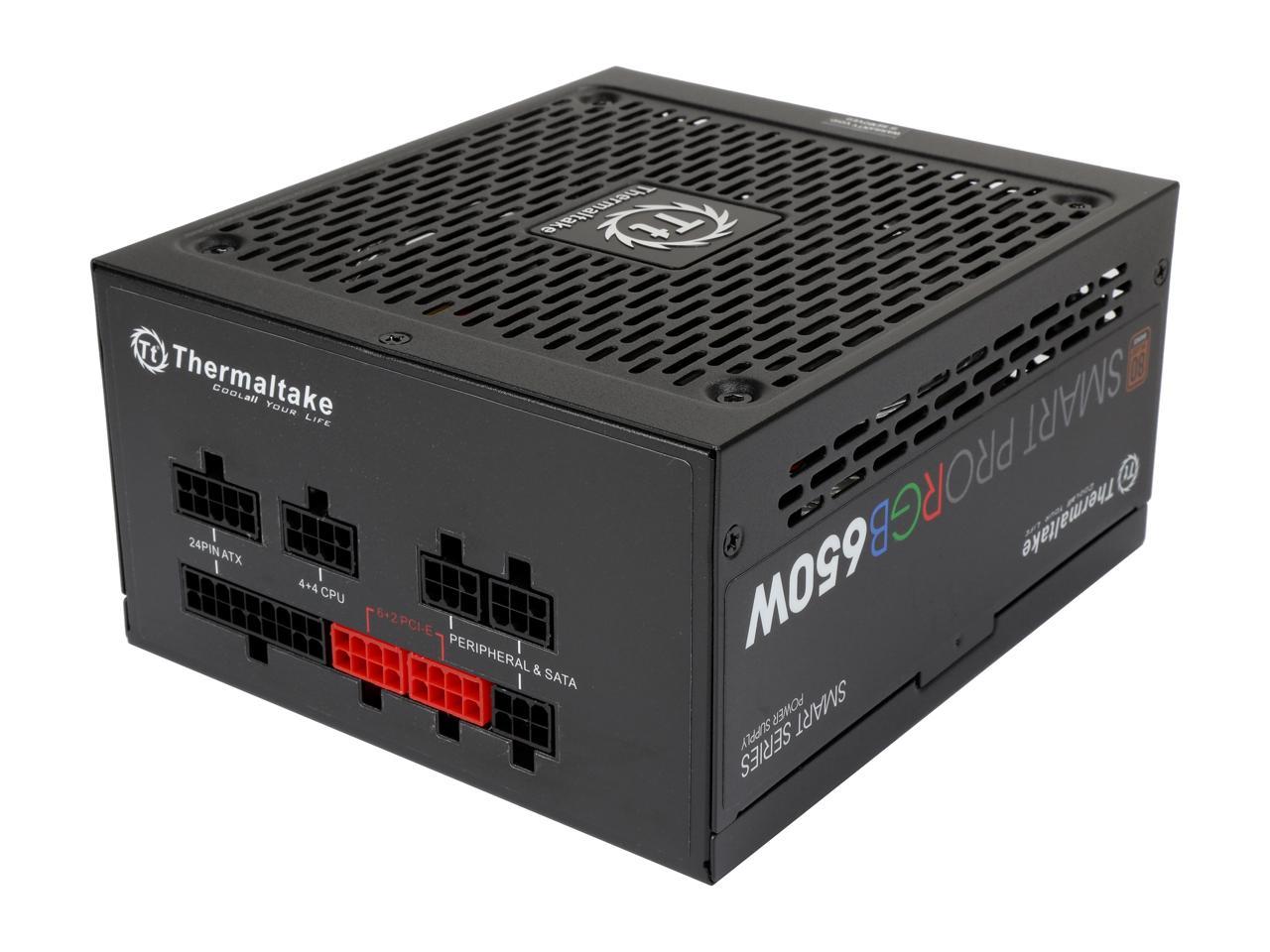

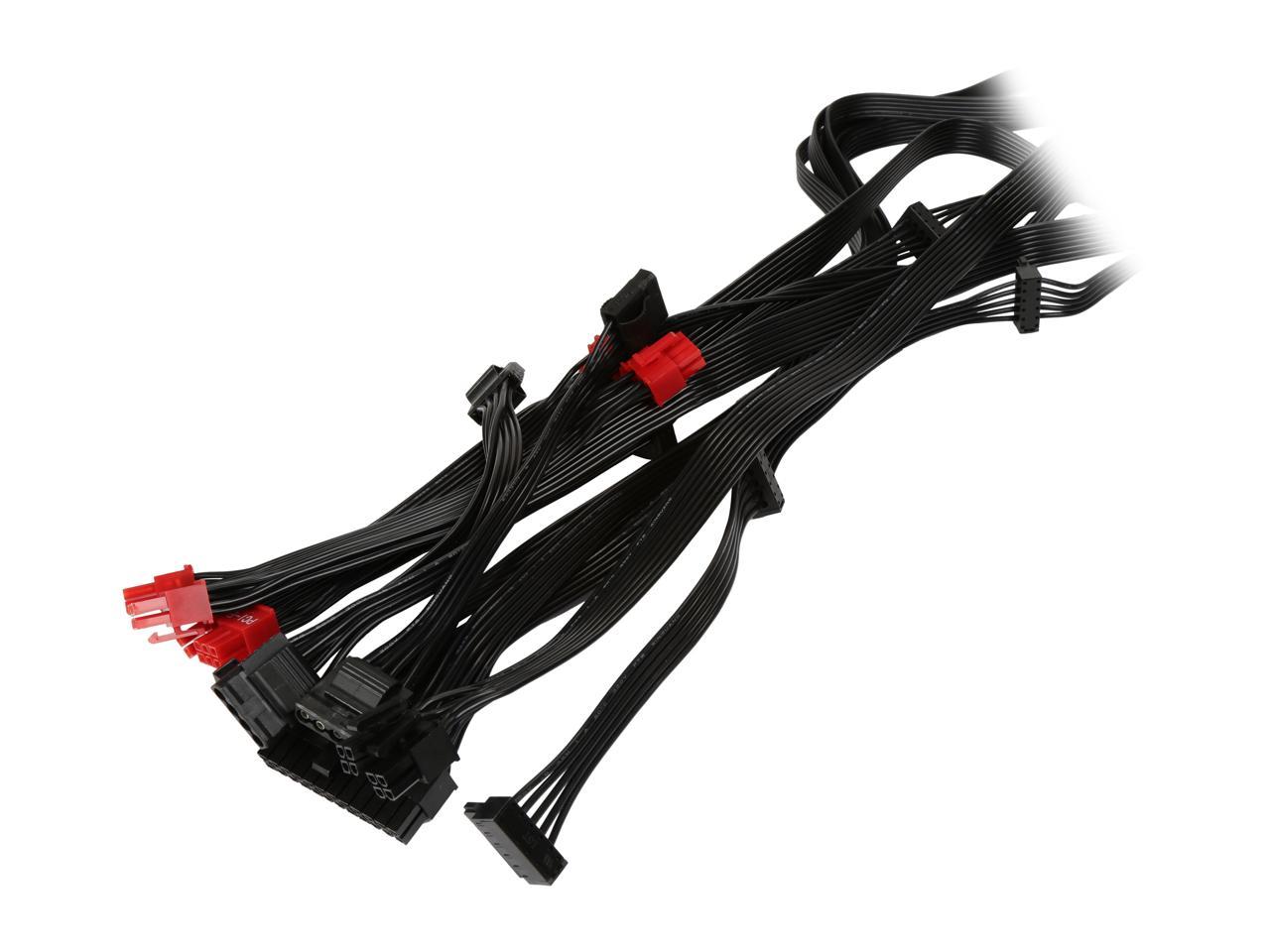

          Fully Modular Low-Profile Flat Cable

          Smart Pro RGB650W Bronze offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cables can make cable management easier, reduce clutter and increase airflow inside the chassis.


          80 PLUS Gold Certified and Skylake Ready

          Deliver up to 85% efficiency under real world load conditions to promise lowest power losses. Additionally, Smart Pro RGB 650W Bronze has been optimized to work with Intel’s latest, Sixth-generation Skylake processors to achieve maximum energy saving.

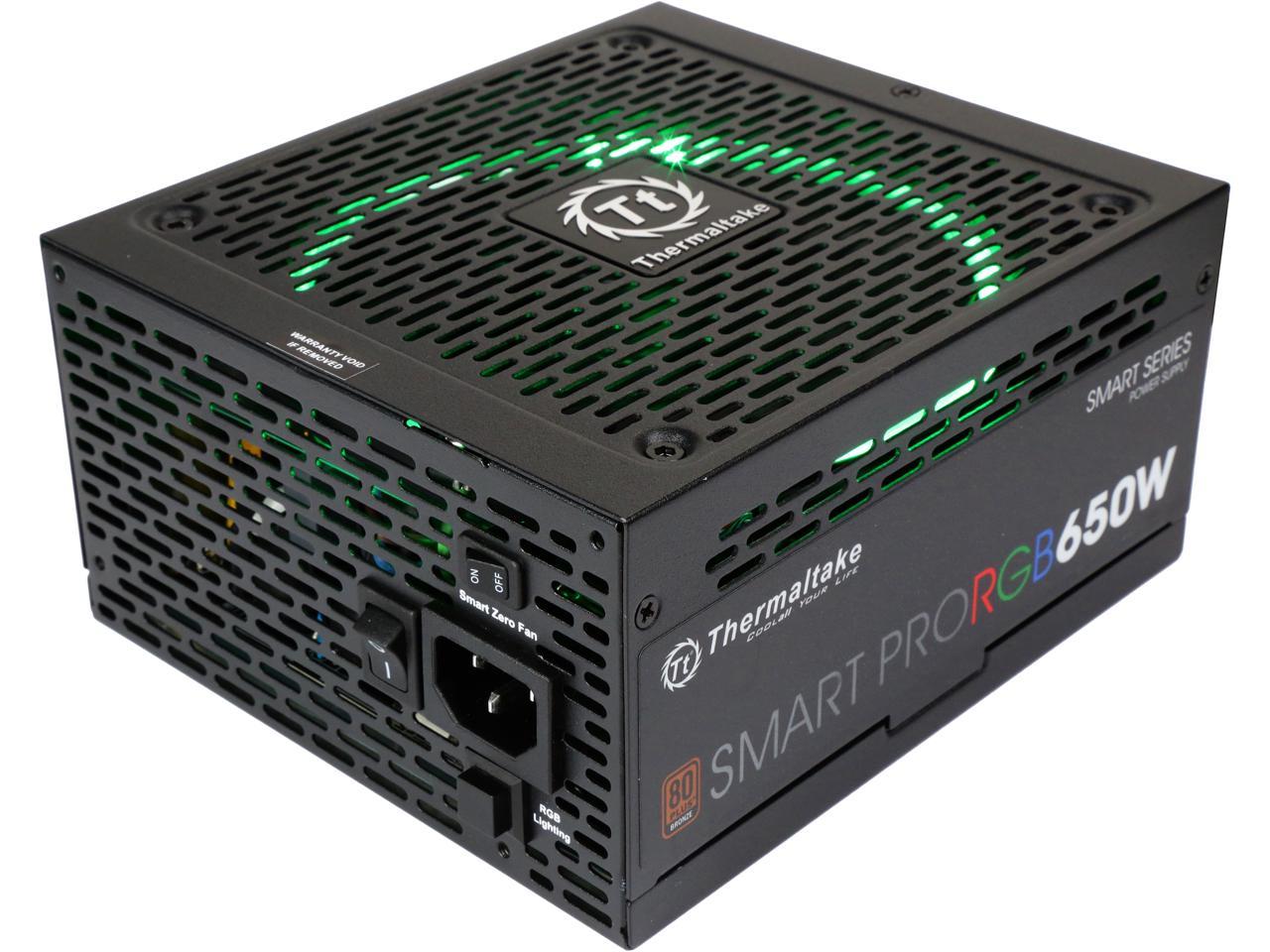

          RGB Lighting Provides Best Aesthetics for All Chassis

          Smart Pro RGB Bronze Series is the best idea for users to go with when they are looking for an RGB PSU which permits remarkable functionality and aesthetics in all cases, especially Open Frame or Tower cases.



          P/N PS-SPR-0650FPCBUS-R
          Short P/N SPR-0650F-R
          Model SPR-650AH3FSB-R
          Type ATX 12V v2.4 and EPS v2.92
          Max. Output Capacity 650W
          Peak Output Capacity 780W
          Color Black
          Dimension (H x W x D) 150mm(W) x 86mm(H) x 160mm(D)
          PFC (Power Factor Correction) Active PFC
          Power Good Signal 100-500 msec
          Hold Up Time > 16msec at 75% of full load
          Input current 10A
          Input Frequency Range 50 Hz - 60 Hz
          Input Voltage 100Vac – 240Vac
          Operating Temperature 0? to +40?
          Operating Humidity 20% to 90%,non-condensing
          Operating Temperature -40 ? to + 70 ?
          Storage Humidity 20% to 95%, non-condensing
          Cooling System 14cm hydraulic bearing fan
          Efficiency Meet 80 PLUS®Gold at 115Vac input.
          MTBF 100,000 hrs minimum
          Safety Approval CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC
          PCI-E Connector PCI-E 6+2pin X 4
