- 1500 RPM
- 1000 R.P.M (with LNC) 40.6 CFM
- 24.6 dB-A
- 18.7 dB-A (with LNC)

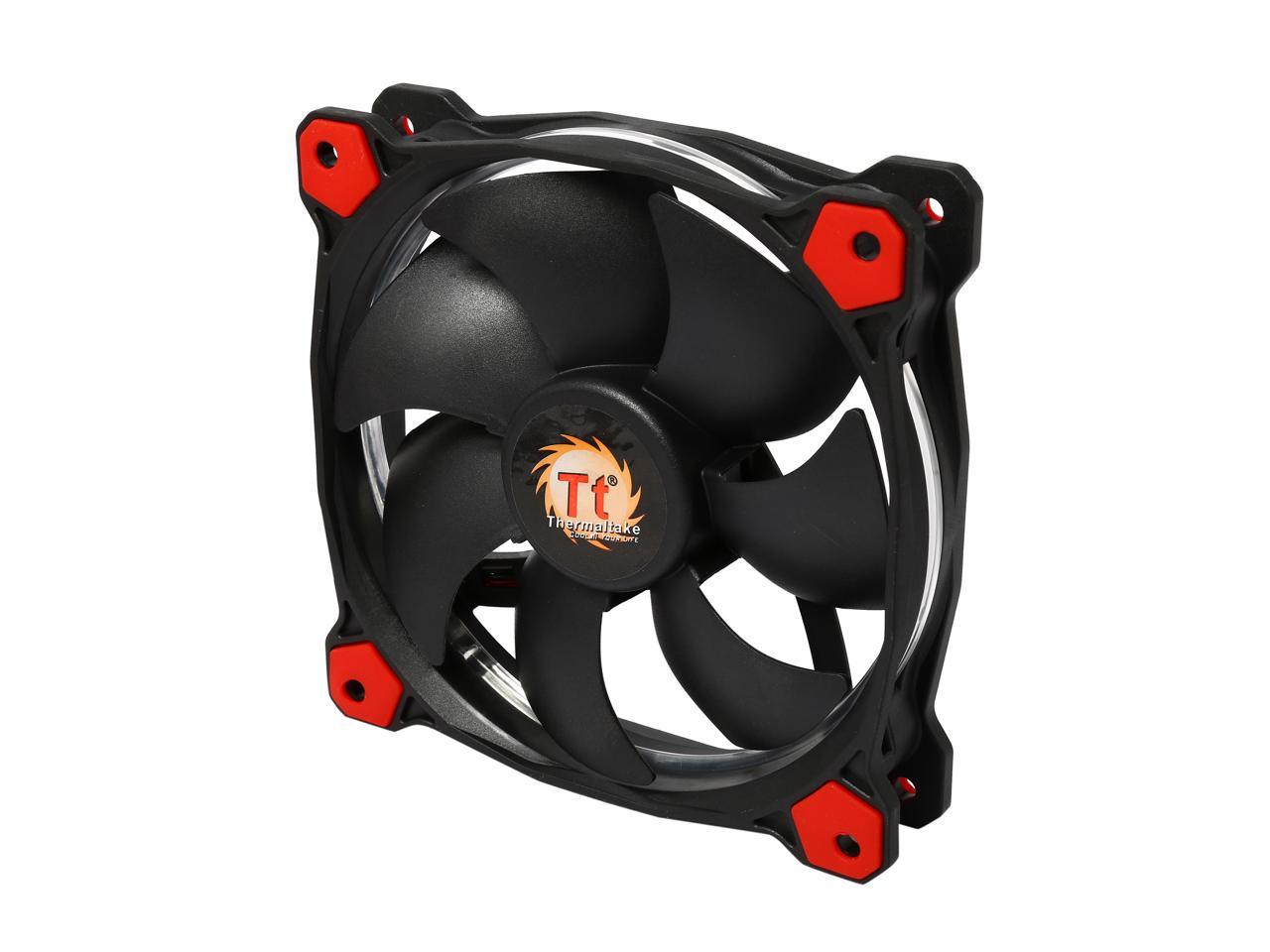

Thermaltake Riing 12 LED 120mm Case / Radiator Fan
A Perfect Marriage of Cooling Performance and LED Lighting
Great for use as case fan or radiator fan, the Thermaltake Riing 14 fan delivers enhanced static pressure with an optimized fan blade design. Its hydraulic bearing is quiet, and guarantees prolonged lifespan. The anti-vibration mounting system strengthens stability during operation, reducing noise and the risk of HDD performance degeneration caused by vibration. Beyond the robust cooling performance, this case fan comes with Thermaltake exclusive LED Ring design that maintains color and brightness uniformity, resulting in consistently beautiful lighting effect from all sides and angles.
Concentrated Compression Blade
Custom designed for high-static pressure requirements of demanding applications such as radiators, the Concentrated Compression Blade (CCB) is engineered to focus the inner weaker circle of air outwards, allowing the outer section to pressurize and compress the air.
Wind Blocker Frame
To achieve maximum static pressure in all applications, the wind blocker frame is designed to work with the Concentrated Compression Blade’s (CCB) pressure mechanism by directing airflow towards the middle section of the blade, thereby creating a compression effect and blocking any pressure from escaping. This reduces the blade’s noise and vibration, creating a perfect balance between power and sound.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance which lowers operating noise and improves efficiency. The seal cap prevents leakage of the lubricant, and improves the lifespan of the unit. The LNC (Low-Noise Cable) can reduce the noise level by 24% from 24.6dBA to 18.7dBA.
Anti-vibration Mounting System
In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.

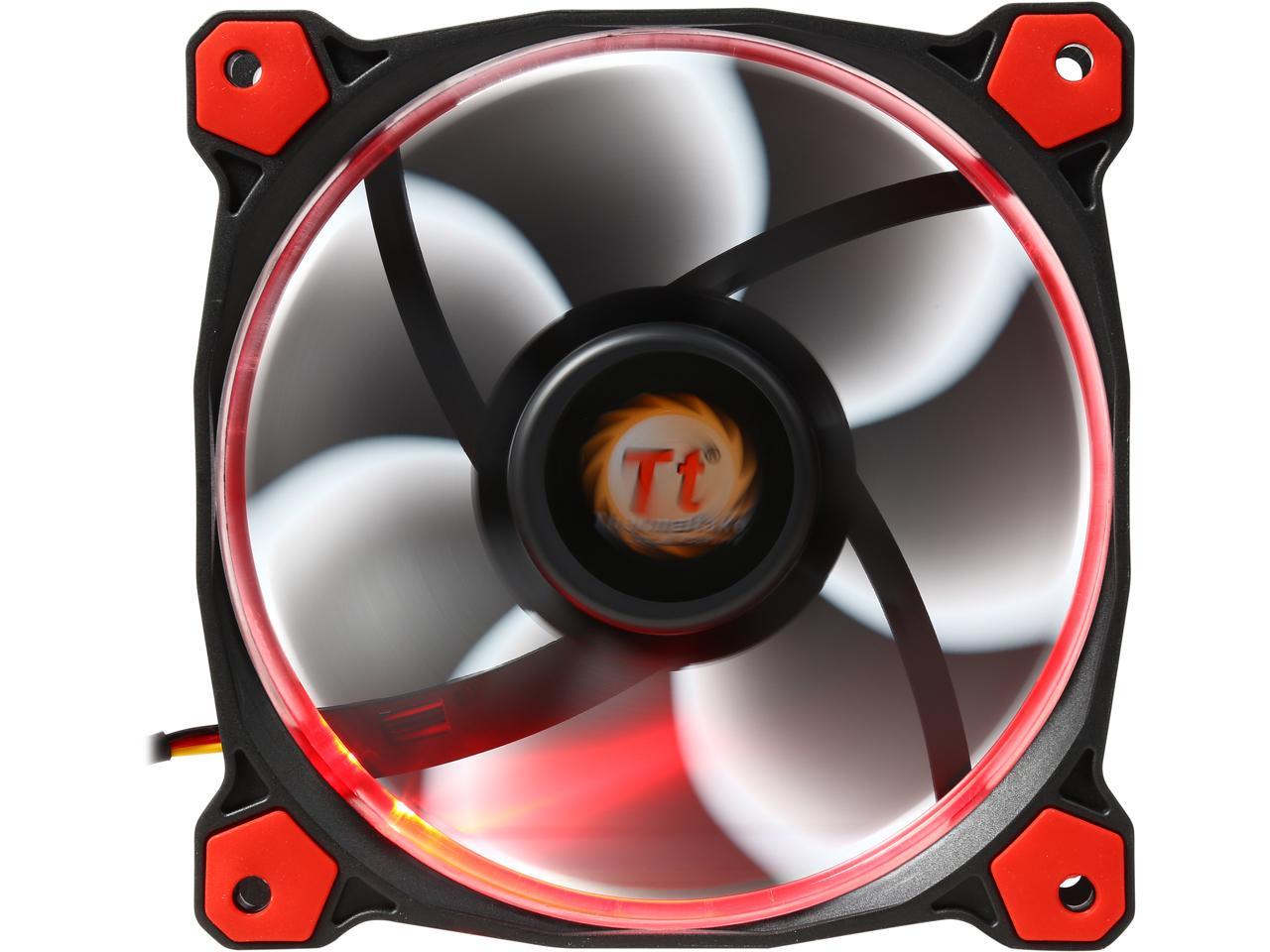

Four LED Colors Available
Riing 12 LED Series is also available with different LED versions (red, blue, green, and white), adding cooling aesthetics to the chassis.
Thermal Image Test
Compared to the standard case fan, the combination of three Riing 12 radiator fans and RL360 radiator delivers 40% better cooling performance. (Inlet and outlet temp. are 49? and 44.5? in respective, ?T= 4.5?)
(?T = Inlet temp. – Outlet temp)
* The bigger number of ?T means the better performance.
