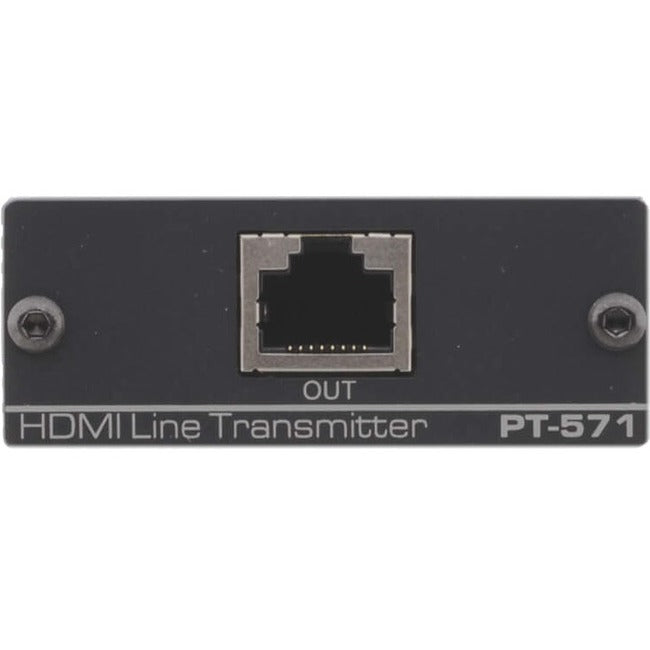

Kramer HDMI HDCP 2.2 Compact Transmitter over PoC Long-Reach DGKat
The PT-571 is a twisted pair transmitter for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572 converts the twisted pair signal back to an HDMI signal.
FEATURES
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
HDTV Compatible
HDCP Compliant
DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables
HDMI Support
3D Pass-Through
System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly
EDID PassThru - Passes EDID signals between the source and display
Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached
Power Connect™ System - A single connection to the transmitter powers the receiver
Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel) HDTV Compatible HDCP Compliant DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables HDMI Support 3D Pass-Through System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly EDID PassThru - Passes EDID signals between the source and display Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached Power Connect™ System - A single connection to the transmitter powers the receiver Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter
Product Type: Video Extender Transmitter
Transmitter Height: 0.96"
Transmitter Width: 2.45"
Transmitter Depth: 2.04"
Transmitter Weight (Approximate): 3.53 oz
Brand Name: Kramer
Form Factor: Rack-mountable
Manufacturer: Kramer Electronics LTD
Product Model: PT-571
Product Name: HDMI HDCP 2.2 Compact Transmitter over PoC Long?Reach DGKat
Manufacturer Part Number: 90-70832090
Manufacturer Website Address: http://www.kramerelectronics.com
Package Contents:
- HDMI HDCP 2.2 Compact Transmitter Over PoC Long-Reach DGKat
- Power Supply
