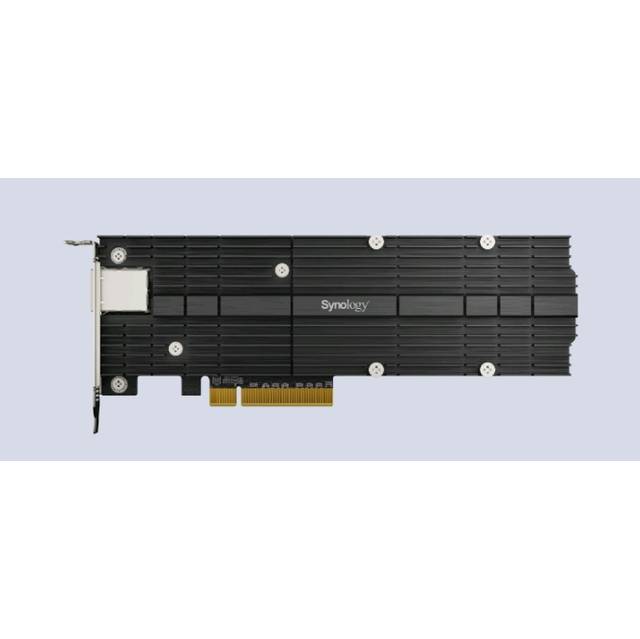

Mfr Part Number: E10M20-T1
-
General
- Host Bus Interface: PCIe 3.0 x8
- Bracket Height: Low Profile and Full Height
- Size (Height x Width x Depth): 71.75 mm x 200.05 mm x 17.70 mm
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: -20C to 60C (-5F to 140F)
- Relative Humidity: 5% to 95% RH
- Warranty: 5 Years
- Notes: The warranty period starts from the purchase date as stated on your purchase receipt.
-
Storage
-
Storage Interface: PCIe NVMe
- Supported Form Factor: 22110 / 2280
- Connector Type and Quantity: M-key, 2 Slots
-
Network
- IEEE Specification Compliance:
- IEEE 802.3an 10Gbps Ethernet
- IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3u Fast Ethernet
- IEEE 802.3x Flow Control
- Data Transfer Rates: 10 Gbps
- Network Operation Mode: Full Duplex
- Supported Features:
- 9 KB Jumbo Frame
- TCP/UDP/IP Checksum Offloading
- Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
- Notes: DSM version requirement: 6.2.3-25426 or later version
-
Compatibility
-
Applied Models: NVMe SSD
- SA series: SA3600, SA3400
- 20 series: RS820RP+, RS820+
-
19 series: DS2419+, DS1819+
- 18 series: RS2818RP+, DS3018xs, DS1618+
- Notes: The listed models support Ethernet function when used with E10M20-T1.
