Supermicro Sys-2029Tp-Hc1R Server Barebone Intel® C621 Lga 3647 (Socket P) Rack (2U) Black

Supermicro Sys-2029Tp-Hc1R Server Barebone Intel® C621 Lga 3647 (Socket P) Rack (2U) Black

SKU:SYS-2029TP-HC1R

$7,647.65
$7,647.65
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SuperServer 2029TP-HC1R (Black), 2U Rackmount, 16 DIMM slots, Dual Socket P (LGA 3647)

          Supermicro SYS-2029TP-HC1R. Motherboard chipset: Intel® C621, Processor socket: LGA 3647 (Socket P). Supported memory types: DDR4-SDRAM. Storage drive sizes supported: 2.5". BIOS type: AMI, BIOS memory size: 32 Mbit. Chassis type: Rack (2U), Product colour: Black, LED indicators: Activity, Power

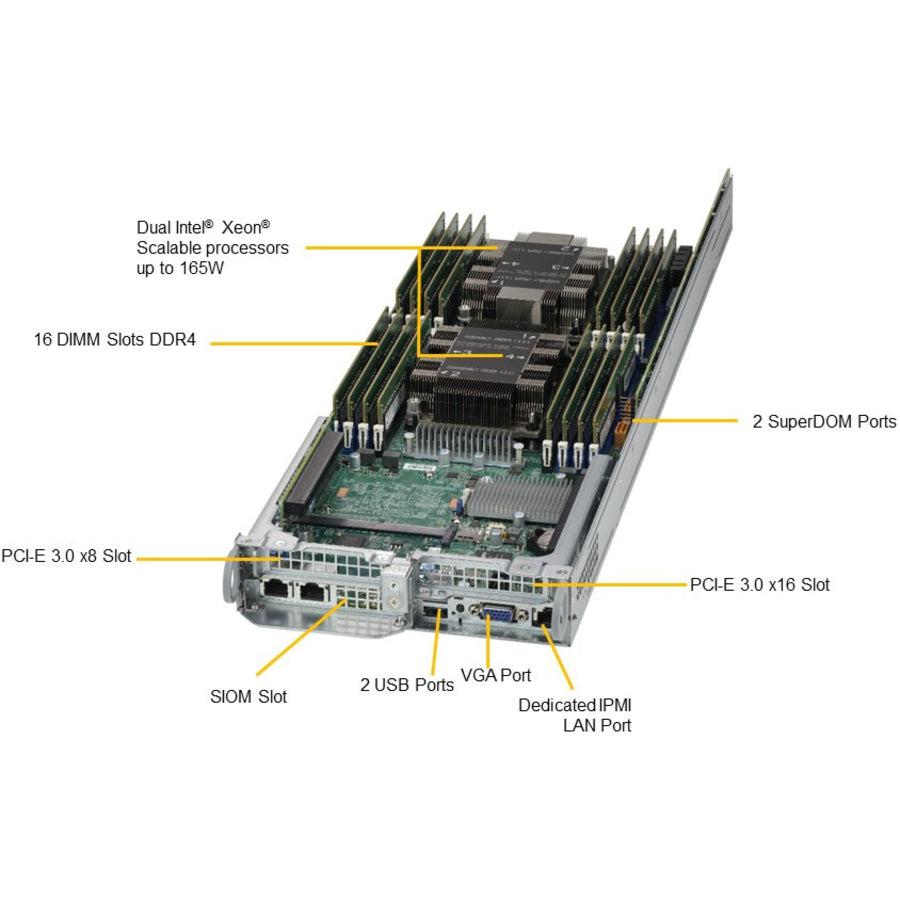

          1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
          2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots

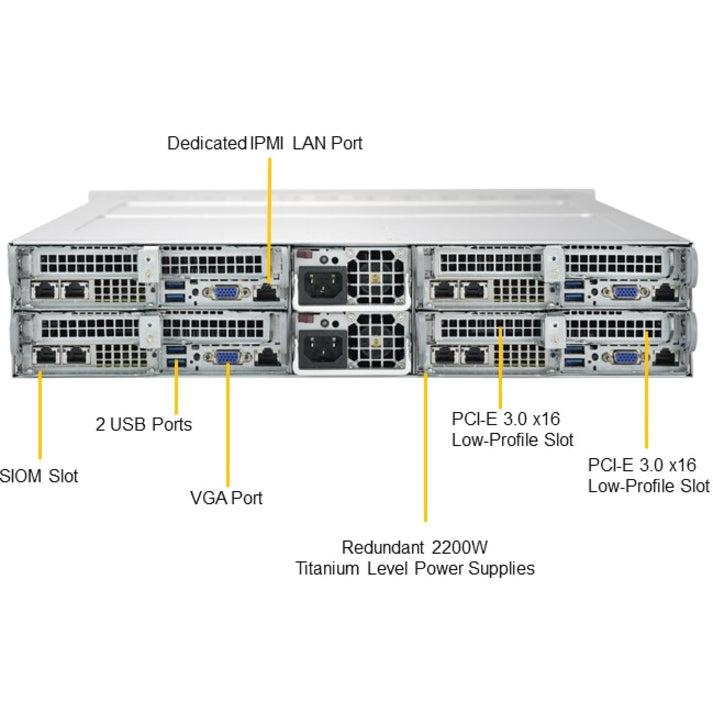

          3. 2 PCI-E 3.0 x16 (LP) slots
          4. Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN

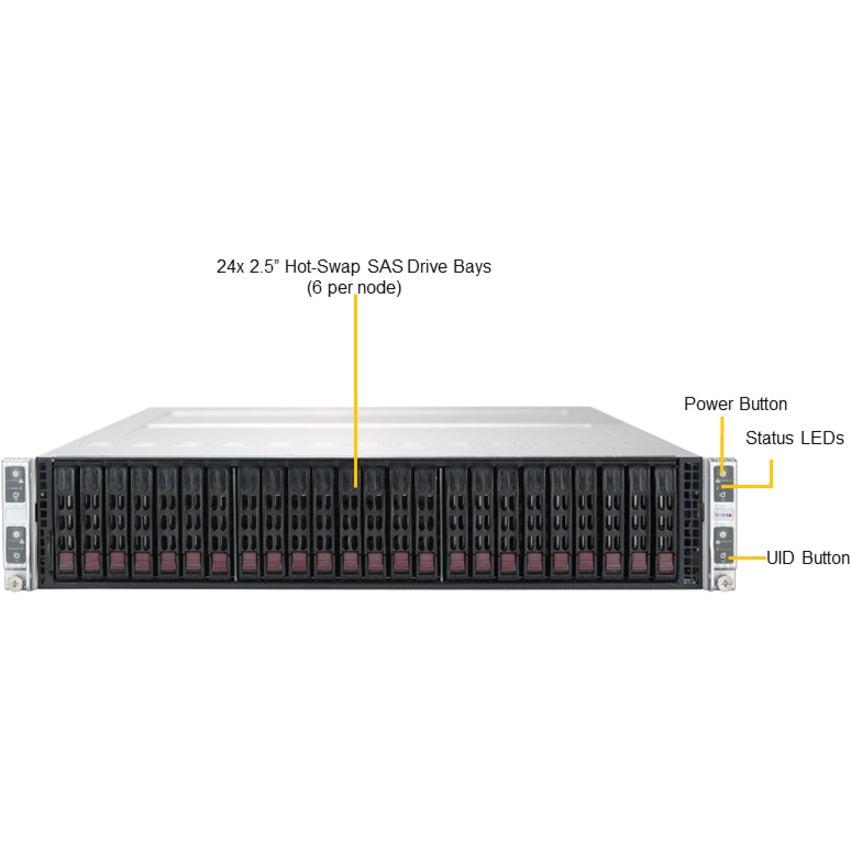

          5. 6 Hot-swap 2.5" SAS/SATA drive bays
          6. Broadcom 3108 SAS3 controller;
          RAID 0, 1, 5, 6, 10, 50, 60 with
          SuperCap option

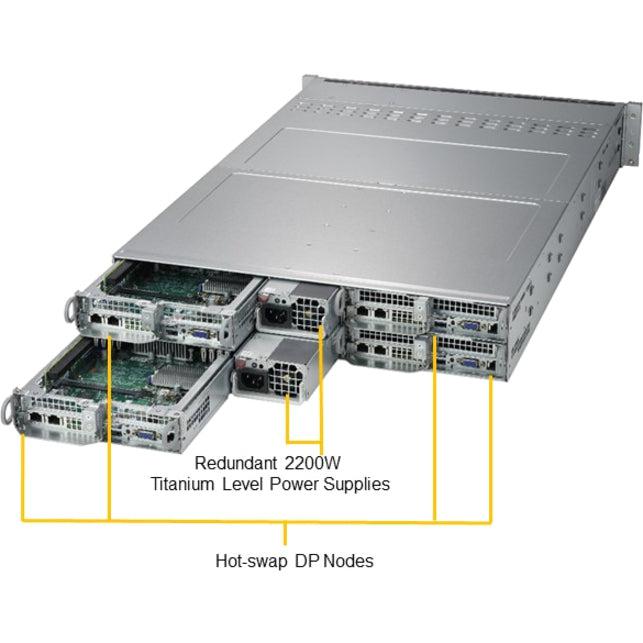

          7. Up to 2200W Redundant Power Supplies
          Titanium Level (96%

          Specifications :

          General Information

          Manufacturer Supermicro Computer, Inc
          Manufacturer Part Number SYS-2029TP-HC1R
          Manufacturer Website Address http://www.supermicro.com
          Brand Name Supermicro
          Product Line SuperServer
          Product Model 2029TP-HC1R
          Product Name SuperServer 2029TP-HC1R (Black)
          Product Type Barebone System

          Chipset

          Chipset ManufacturerIntel
          Graphics Controller ManufacturerASPEED
          Graphics Controller ModelAST2500
          Ethernet TechnologyEthernet
          Total Number of USB Ports2

          Power Description

          Maximum Power Supply Wattage2200 W
          Product ColorBlack
          Height3.5"
          Width17.3"
          Depth28.5"
          Weight (Approximate)72.09 lb

          Miscellaneous

          Package Contents
          • SuperServer 2029TP-HC1R (Black)
          • 4 x Super X11DPT-PS Motherboards
          • 1 x 2U Chassis
          • 4 x LSI 3108, SAS 12Gbps (x6 internal)
          • 1 x 2U 24-Port 4-Node Backplane Supports 6x2.5
          • 2 x PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
          • 4 x SC217HQ+ TwinPro 2pcs air shroud set for X11 DPT-PS
          • 4 x RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
          • 4 x 1U RHS TwinPro Riser card with one PCI-E x16 slot
          • 4 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
          • 4 x 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
          • 2 x 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
