Supermicro Sys-2029P-C1R Server Barebone Intel® C621 Lga 3647 (Socket P) Rack (2U) Black

Supermicro Sys-2029P-C1R Server Barebone Intel® C621 Lga 3647 (Socket P) Rack (2U) Black

SKU:SYS-2029P-C1R

$3,503.93
$3,503.93
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SuperServer 2029P-C1R (Black), Dual Socket P (LGA 3647), 16 DIMM slots, 2U Rackmount

          Supermicro SYS-2029P-C1R. Motherboard chipset: Intel® C621, Processor socket: LGA 3647 (Socket P). Supported memory types: DDR4-SDRAM. Storage drive sizes supported: 2.5". BIOS type: UEFI AMI. Chassis type: Rack (2U), Product colour: Black, LED indicators: Activity, Power

          1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
          2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
          3. 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots, support 5 low-profile AOCs

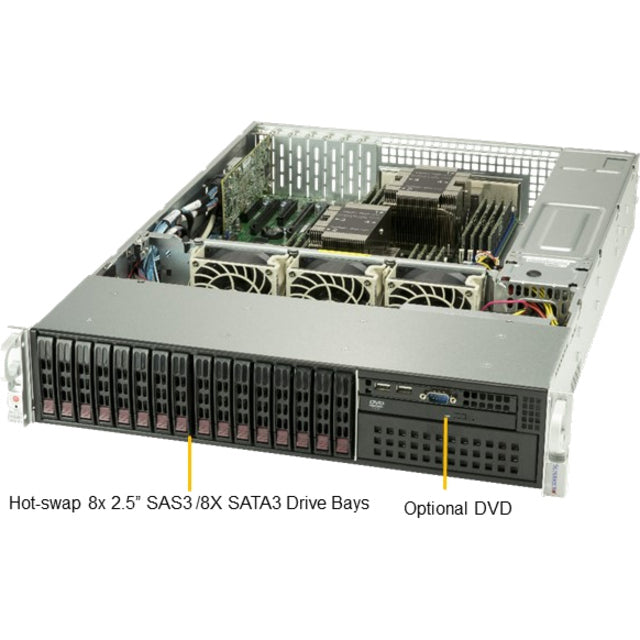

          4. 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swap
          Drive Bays, optional DVD-ROM drive,
          optional support 2 NVMe/SSD/HDD 2.5"
          fix drives, 1 M.2 support
          5. 2x 1GbE LAN ports with Intel® X722
          6. Integrated IPMI 2.0 with KVM and Dedicated LAN
          7. 2 SuperDOM, 1 VGA, 2 COM,
          2 USB 3.0, 4 USB 2.0, 1 Type A
          8. 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control
          9. 1200W Redundant Power Supplies
          Titanium Level (96%)

          Specifications :

          General Information

          Manufacturer Supermicro Computer, Inc
          Manufacturer Part Number SYS-2029P-C1R
          Manufacturer Website Address http://www.supermicro.com
          Brand Name Supermicro
          Product Line SuperServer
          Product Model 2029P-C1R
          Product Name SuperServer 2029P-C1R (Black)
          Product Type Barebone System
          UPC 0672042292103

          Chipset

          Chipset ManufacturerIntel
          Graphics Controller ManufacturerASPEED
          Graphics Controller ModelAST2500
          Ethernet TechnologyGigabit Ethernet
          Total Number of USB Ports7

          Power Description

          Maximum Power Supply Wattage1200 W
          Product ColorBlack
          Height3.5"
          Width17.2"
          Depth24.8"
          Weight (Approximate)38 lb

          Miscellaneous

          Package Contents
          • SuperServer 2029P-C1R (Black)
          • 1 x Super X11DPi-N Motherboard
          • 1 x 2U Black SC213AC Chassis
          • 1 x LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
          • 1 x 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
          • 2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
          • 2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
          • 1 x MINI SAS HD,12G,INT,50CM,30AWG
          • 1 x MINI SAS HD,12G,INT,35CM,30AWG
          • 1 x Black USB/COM port tray for SC825, 836
          • 1 x STD I/O shield for X9 socket R server MB with Gasket.
          • 1 x SYS-2029P-C1R/SYS-2029P-C1RT, QRG
          • 1 x 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
          • 1 x 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
          • 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
          • 3 x 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
