Supermicro Superserver 5019C-Wr Intel C246 Lga 1151 (Socket H4) Rack (1U) Black

Supermicro Superserver 5019C-Wr Intel C246 Lga 1151 (Socket H4) Rack (1U) Black

SKU:SYS-5019C-WR

Regular price $1,550.03
Regular price Sale price $1,550.03
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

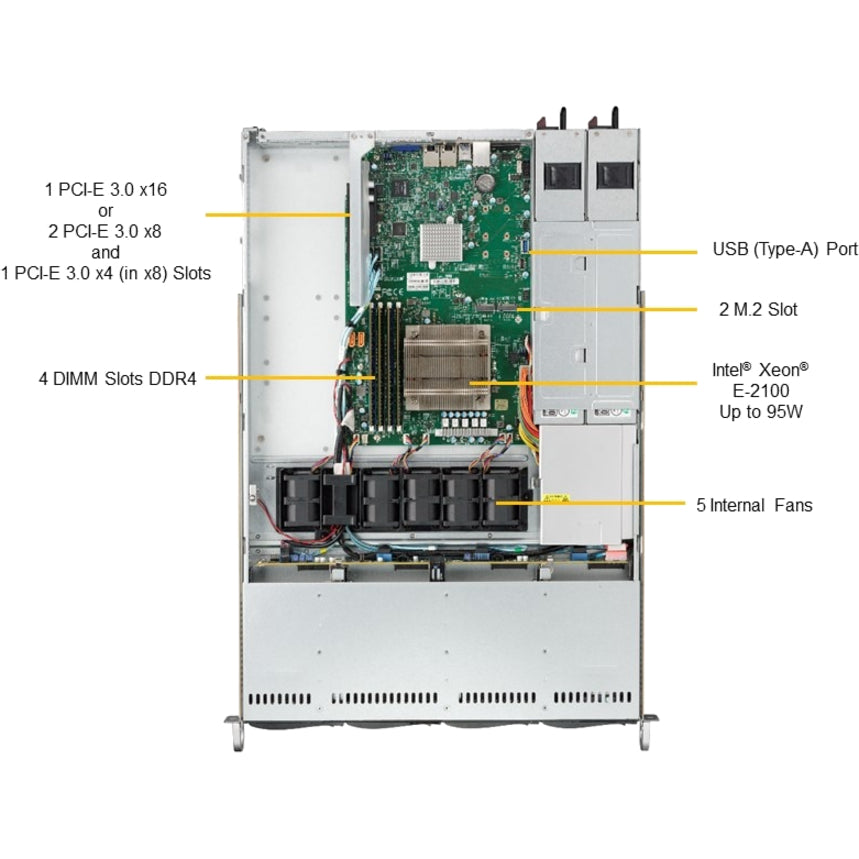

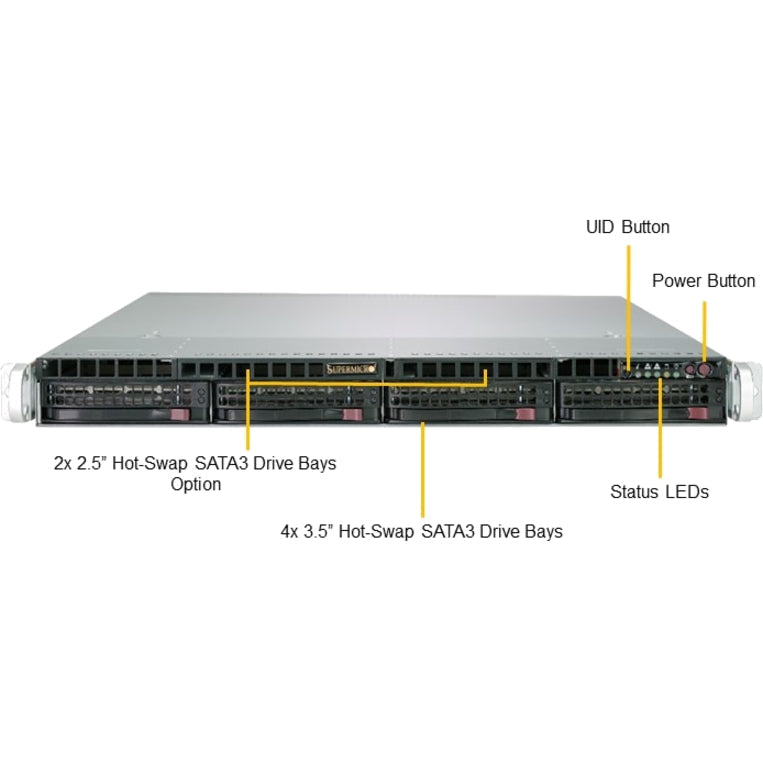

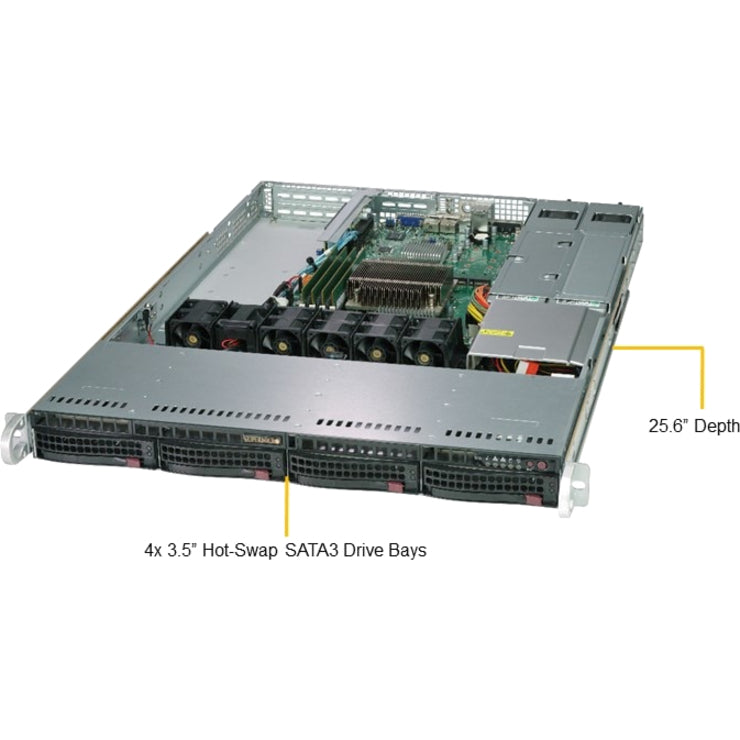

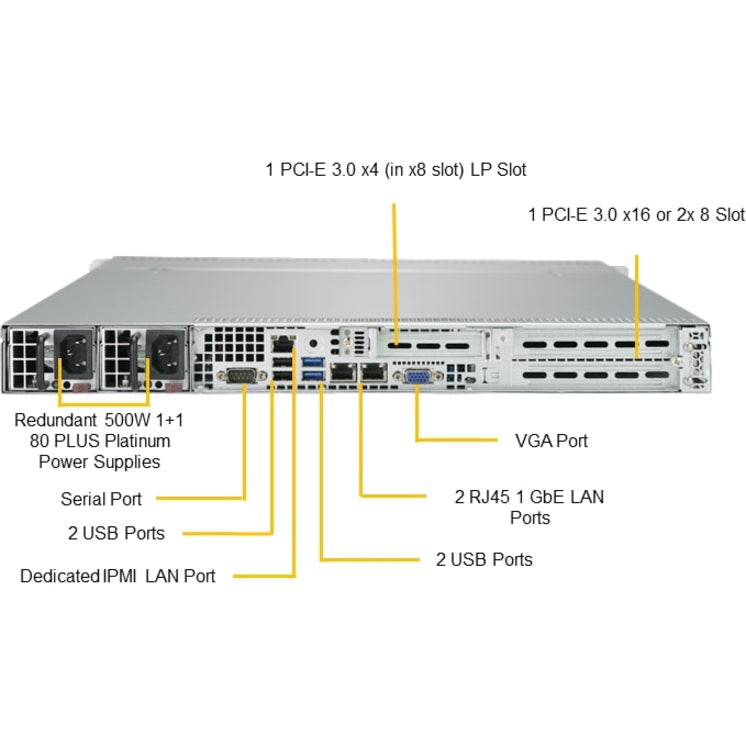

          SuperServer 5019C-WR, LGA 1151, 4x DDR4, Intel C246, 6x SATA III, RJ-45, USB 3.1, VGA, PCI-E 3.0 x16, 1U, 43x437x650 mm

          Supermicro SuperServer 5019C-WR. Motherboard chipset: Intel C246, Processor socket: LGA 1151 (Socket H4), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®. Supported memory types: DDR4-SDRAM, Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB, Maximum internal memory: 128 GB. Storage drive sizes supported: 3.5". On-board graphics adapter model: Aspeed AST2500. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® I210-AT

          SuperServers are Your Best Choice!

          SuperServer Benefits:
          - Uncompromising Quality Control
          - The most Comprehensive Line of Servers, Storage Systems, and Subsystems
          - Widest Variety of Application Optimized Solutions, from High End Clusters to MicroServers
          - Best Performance per-Watt, per-Square-Foot, and per-Dollar
          - Superior Product Design Based in Silicon Valley
          - Consistently First-to-Market
          - Best Total Cost of Ownership (TCO)
          - Highest Quality Components and Materials
          - 3-Year Limited Warranty
          - 24-Hour Support and Global Services
          - Redfish API support

          These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom™ and dual Xeon® to quad Xeon® MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

          Specifications :

          General Information

          Manufacturer Supermicro Computer, Inc
          Manufacturer Part Number SYS-5019C-WR
          Manufacturer Website Address http://www.supermicro.com
          Brand Name Supermicro
          Product Line SuperServer
          Product Model 5019C-WR
          Product Name SuperServer 5019C-WR (Black)
          Product Type Barebone System
          UPC 0672042326105

          Chipset

          Chipset ManufacturerIntel
          Graphics Controller ManufacturerASPEED
          Graphics Controller ModelAST2500
          Ethernet TechnologyGigabit Ethernet
          Total Number of USB Ports4

          Power Description

          Maximum Power Supply Wattage500 W
          Product ColorBlack
          Height1.7"
          Width17.2"
          Depth25.6"
          Weight (Approximate)25 lb

          Miscellaneous

          Package Contents
          • SuperServer 5019C-WR (Black)
          • 1 x Super X11SCW-F Motherboard
          • 1 x 1U Chassis
          • 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5
          • 1 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
          • 2 x SATA,INT,ROUND,ST-RA,55CM,30AWG
          • 1 x SATA,INT,ROUND,ST-RA,70CM,30AWG
          • 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG
          • 1 x SATA,INT,ROUND,ST-RA,45CM,30AWG
          • 2 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
          • 1 x SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
          • 1 x 5019C-WR Quick Reference Guide
          • 1 x 1U RHS WIO Riser card with one PCI-E x8 slot
          • 1 x 1U LHS WIO w/ 2 PCI-E x8 slots or PCI-E x16 slot
          • 1 x 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
          • 2 x 500W 1U Redundant PWS W/ 54.5MM Wide
          • 1 x WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
          • 1 x CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
          • 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
          • 1 x FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
          • 1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
          • 3 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
          • 1 x 815 UIO front control board (U)
          • 1 x Blank LP L-bracket (1 raw of capsule hole)
          • 2 x Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
          • 4 x Black gen 5.5 hot-swap 3.5"; HDD tray
          • 1 x WIO rear window for SC113,SC116, SC815 Redundant PWS
          • 1 x SC815 Redundant Power Distributor Cover
          • 1set x Rail set, quick/quick, optional for 1U 17.2
          • 3 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
