Supermicro

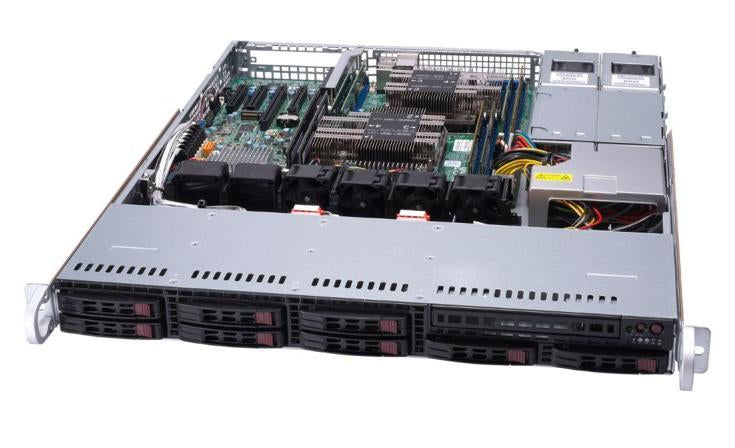

Supermicro Superserver 1029P-Mtr Intel® C621 Lga 3647 (Socket P) Rack (1U) Black

Supermicro Superserver 1029P-Mtr Intel® C621 Lga 3647 (Socket P) Rack (1U) Black

SKU:SYS-1029P-MTR

Regular price $1,921.42
Regular price Sale price $1,921.42
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

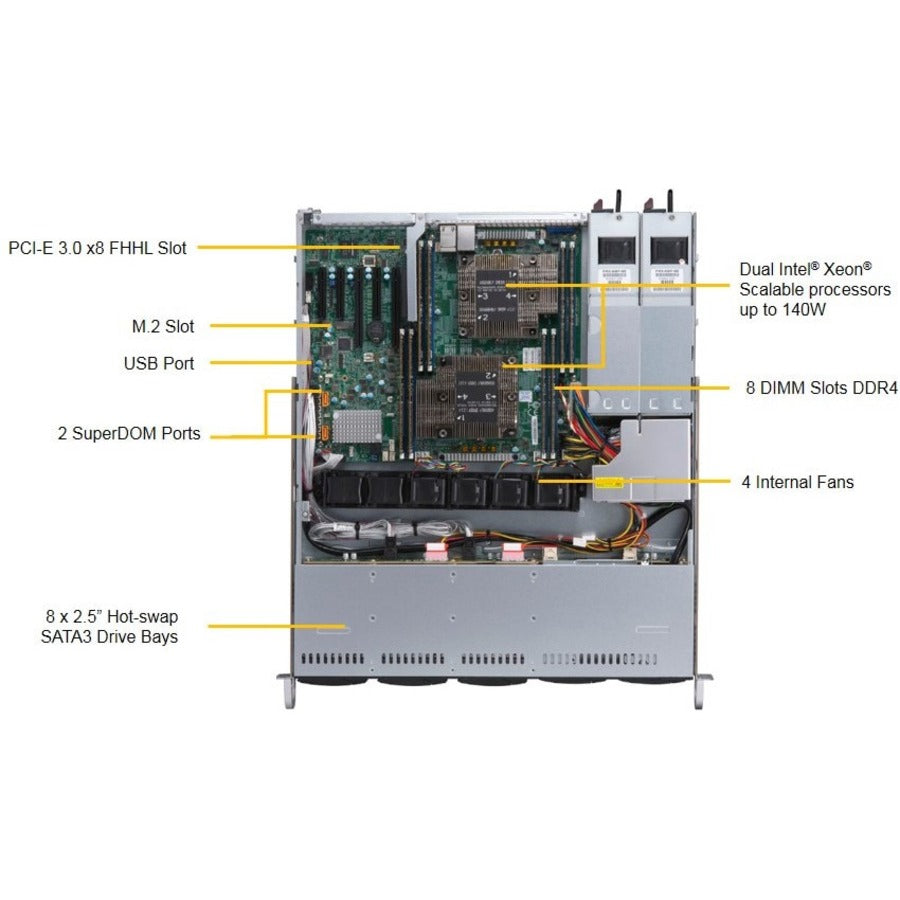

          Dual Socket P (LGA 3647), 8x DIMM DDR4, Intel C621, 8x SATAIII, 2x RJ-45, IPMI LAN, 2x USB 2.0, VGA, 1U, 437x43x508 mm

          Supermicro SuperServer 1029P-MTR. Motherboard chipset: Intel® C621, Processor socket: LGA 3647 (Socket P), System bus rate: 10.4 GT/s. Supported memory types: DDR4-SDRAM, Maximum internal memory: 1000 GB, Maximum RDIMM memory: 512 GB. Storage drive sizes supported: 2.5", Supported storage drive interfaces: Serial ATA III. On-board graphics adapter model: Aspeed AST2500. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T

          SuperServers are Your Best Choice!

          SuperServer Benefits:
          - Uncompromising Quality Control
          - The most Comprehensive Line of Servers, Storage Systems, and Subsystems
          - Widest Variety of Application Optimized Solutions, from High End Clusters to MicroServers
          - Best Performance per-Watt, per-Square-Foot, and per-Dollar
          - Superior Product Design Based in Silicon Valley
          - Consistently First-to-Market
          - Best Total Cost of Ownership (TCO)
          - Highest Quality Components and Materials
          - 3-Year Limited Warranty
          - 24-Hour Support and Global Services
          - Redfish API support
          These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom and dual Xeon to quad Xeon MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

          Specifications :

          General Information

          Manufacturer Supermicro Computer, Inc
          Manufacturer Part Number SYS-1029P-MTR
          Manufacturer Website Address http://www.supermicro.com
          Brand Name Supermicro
          Product Line SuperServer
          Product Model 1029P-MTR
          Product Name SuperServer 1029P-MTR (Black)
          Product Type Barebone System
          UPC 0672042291298

          Chipset

          Chipset ManufacturerIntel
          Graphics Controller ManufacturerASPEED
          Graphics Controller ModelAST2500
          Ethernet TechnologyGigabit Ethernet
          Total Number of USB Ports2

          Power Description

          Maximum Power Supply Wattage600 W
          Product ColorBlack
          Height1.7"
          Width17.2"
          Depth20"

          Miscellaneous

          Package Contents
          • SuperServer 1029P-MTR (Black)
          • 1 x Super X11DPL-i Motherboard
          • 1 x 1U Chassis

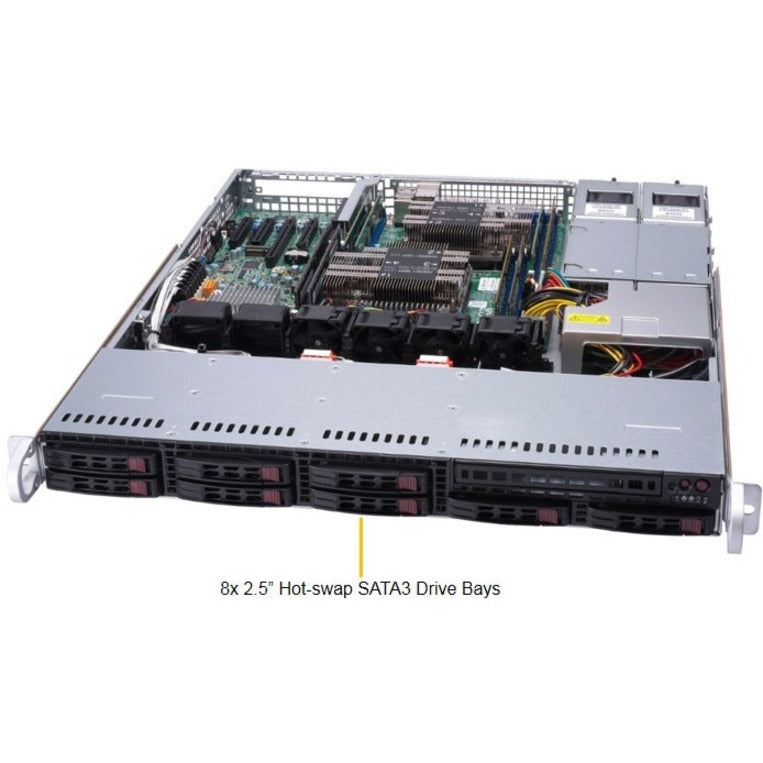

          • 1 x 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
          • 2 x MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG
          • 1 x 1U I/O Shield for X11DPL-i with EMI Gasket
          • 1 x SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12
          • 1 x 1029P-MT/MTR Quick Reference Guide
          • 1 x RSC-RR1U-E8
          • 2 x 1U Passive Proprietary CPU Heat Sink for X11DPL Motherboard Equipped with a Square Retention Mechanism
          • 2 x AC-DC 600W single output power supply Platinum Level, Redund
          • 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
