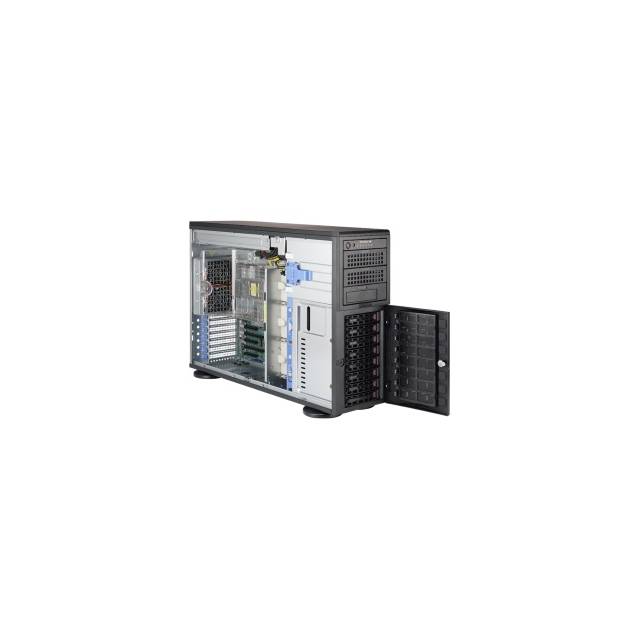

Name: Supermicro A+ Server As-4023S-Trt Socket Sp3 1280W 4U Rackmount/Tower Server Barebone System
Brand: Supermicro
SKU: AS -4023S-TRT
Price: 2695.06 USD
Availability: OutOfStock

Supermicro A+ Server As-4023S-Trt Socket Sp3 1280W 4U Rackmount/Tower Server Barebone System

Roll over image to zoom in Click on image to zoom

Mfr Part Number: AS-4023S-TRT
Motherboard: H11DSi-NT
Processor: Socket SP3
- Support Dual AMD EPYC 7000-series Processors
- Support Up to 32 Cores
Chipset: System on Chip (SoC)
Memory: 16x 240pin DDR4-2666 DIMM Slots, 8 Channel, Supports up to 2TB ECC/REG Memory
Slots: 2x PCI-Express x16 Slots, 3x PCI-Express x8 Slot
SATA: 10x SATA3 Ports
SAS: 8x SAS3 ports support via optional Add-on Card
Video: ASPEED AST2500 BMC Graphics
LAN: 2x Intel X550 10GBase-T Ethernet Controllers, 1x Realtek RTL8211E PHY (dedicated IPMI)

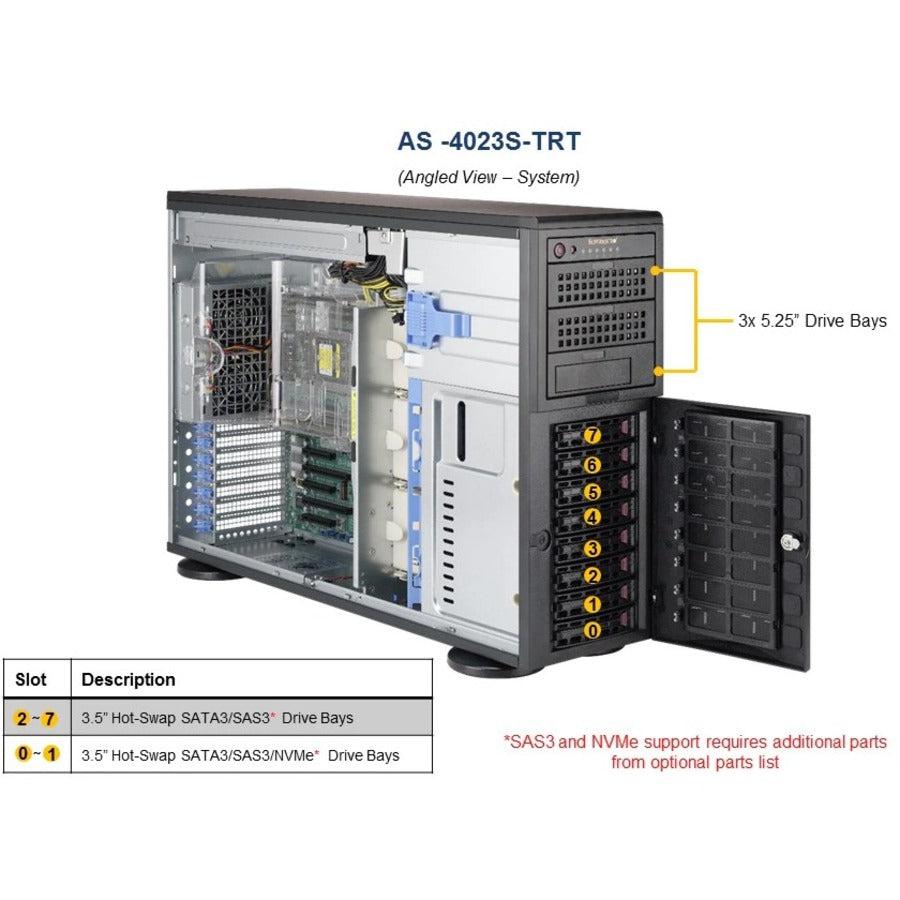

Drive Bays: 8x 3.5" Hot-swap SAS3/SATA3 Drive Bays, 3x 5.25" Peripheral Drive Bays
Backplane: Supports 8 SATA3 or 8 SAS3 HDD
Ports: 2x USB 3.0 Ports (rear), 2x USB 2.0 Ports (rear), 1x VGA Port, 2x RJ45 10G LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: 4U Rackmount / Tower
Power Supply: 1280W 80 PLUS Platinum Certified Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
System Cooling: 3x internal hot-swap 9400 RPM fans, 2x external rear hot-swap 9400 RPM fans

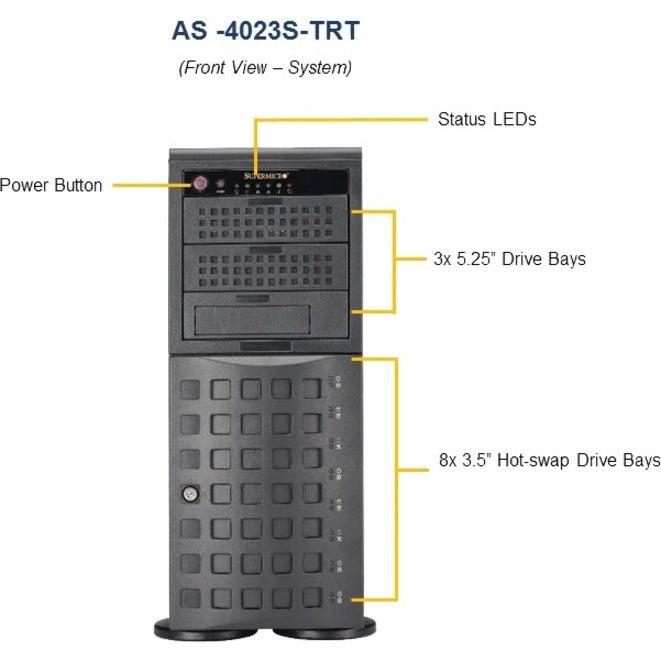

Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail, UID
Color: Black
Dimensions (WxDxH): 7.0 x 25.5 x 17.8 inch / 178.0 x 647.0 x 452.0 mm
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	AS -4023S-TRT
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	A+ Server
Product Model	4023S-TRT
Product Name	A+ Server 4023S-TRT
Product Type	Barebone System
UPC	0672042296347

Processor

Processor Manufacturer	AMD

Chipset

Chipset Manufacturer	AMD

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Ethernet Technology	10 Gigabit Ethernet

Total Number of USB Ports	4

Power Description

Maximum Power Supply Wattage	1280 W

Product Color	Black
Height	17.8"
Width	7"
Depth	25.5"
Weight (Approximate)	59 lb

Miscellaneous

Package Contents

A+ Server 4023S-TRT
1 x Super H11DSi-NT Motherboard
1 x 4U Chassis
1 x 8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps Backplane, 4 of 8 Ports Support NVMe Devices
2 x Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF
2 x 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
1 x STD I/O Shield for X9 Socket R Server MB with Gasket.
2 x 1U 1280W, Redundant Single Output Power Supply
1 x OOB Management Package (per node license)

Environmentally Friendly

Yes

Warranty

Limited Warranty	3 Year

Supermicro A+ Server As-4023S-Trt Socket Sp3 1280W 4U Rackmount/Tower Server Barebone System

Description

Supermicro A+ Server As-4023S-Trt Socket Sp3 1280W 4U Rackmount/Tower Server Barebone System
