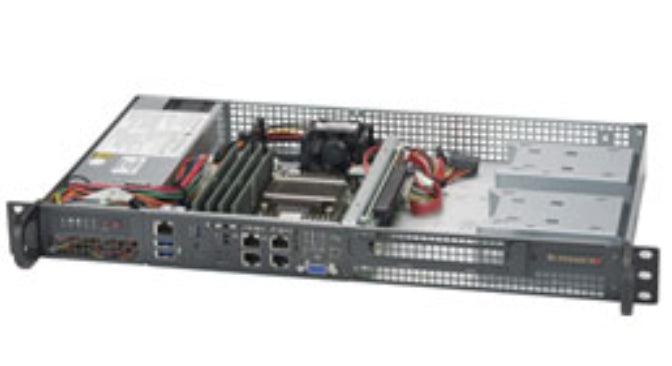

• Supermicro 5018D-Fn4T Bga 1667 Rack (1U) Black, Silver
1 1

Supermicro

Supermicro 5018D-Fn4T Bga 1667 Rack (1U) Black, Silver

Supermicro 5018D-Fn4T Bga 1667 Rack (1U) Black, Silver

SKU:SYS-5018D-FN4T

$1,843.61
$1,843.61
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Intel Xeon D-1540, Single socket FCBGA 1667, 8-Core, 45W, 2x 3.5", 4x 2.5" SATA3, 1x PCI-E 3.0 x16, Up to 128GB ECC RDIMM DDR4 2133MHz, Dual 10GbE LAN and Intel i350-AM2 dual port GbE LAN, 200W

          Supermicro 5018D-FN4T. Processor socket: BGA 1667, Processor family: Intel, Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Supported DIMM module capacities: 16GB, 32GB, 4GB, 8GB, Maximum internal memory: 128 GB. Storage drive sizes supported: 2.5,3.5", Supported storage drive interfaces: Serial ATA II. On-board graphics adapter model: Aspeed AST2400. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T,100BASE-T,10BASE-T

          Supermicro's systems based on the Intel® Xeon® processor D-1540 (8-Core) System-on-Chip are well-suited for Space-efficient, compact design, less than 10" depth, Best Performance per Watt, Fast to build and deploy.

          Specifications :

          General Information

          Manufacturer Supermicro Computer, Inc
          Manufacturer Part Number SYS-5018D-FN4T
          Manufacturer Website Address http://www.supermicro.com
          Brand Name Supermicro
          Product Line SuperServer
          Product Model 5018D-FN4T
          Product Name SuperServer 5018D-FN4T (Black)
          Product Type Barebone System
          UPC 672042188284
          Graphics Controller ManufacturerASPEED
          Graphics Controller ModelAST2400
          Ethernet TechnologyFast Ethernet
          Total Number of USB Ports2

          Power Description

          Maximum Power Supply Wattage200 W
          Product ColorBlack
          Height1.7"
          Width17.2"
          Depth9.8"
          Weight (Approximate)8 lb

          Miscellaneous

          Package Contents
          • SuperServer 5018D-FN4T (Black)
          • 1 x Super X10SDV-8C-TLN4F Motherboard
          • 1 x 1U Chassis
          • 1 x mylar air shroud for SC504/505 with X10SDV,HF,RoHS/REACH
          • 1 x 35CM end to end, SATA CABLE, PB FREE, 26AWG, flat
          • 1 x Riser card bracket for slot-7 in SC504
          • 1 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
          • 1 x Fan Warning Label 30x11mm,RoHS/REACH
          • 1 x SYS-5018D-FN4T, QRG,HF,RoHS/REACH
          • 1 x 1U I/O Shield for A1SRM-LN7F on SC510 with EMI Gasket,RoHS/REACH
          • 1 x RSC-RR1U-E16 with PCI-E x16 output
          • 1 x 1U 200W Multi-output 80Plus Gold PWS
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
