StarTech.com

Startech.Com Hdmi Over Cat5E Hdbaset Extender - Rs232 - Ir - Ultra Hd 4K - 330 Ft (100M)

Startech.Com Hdmi Over Cat5E Hdbaset Extender - Rs232 - Ir - Ultra Hd 4K - 330 Ft (100M)

SKU:ST121UTPHD2

Regular price $416.87
Regular price Sale price $416.87
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

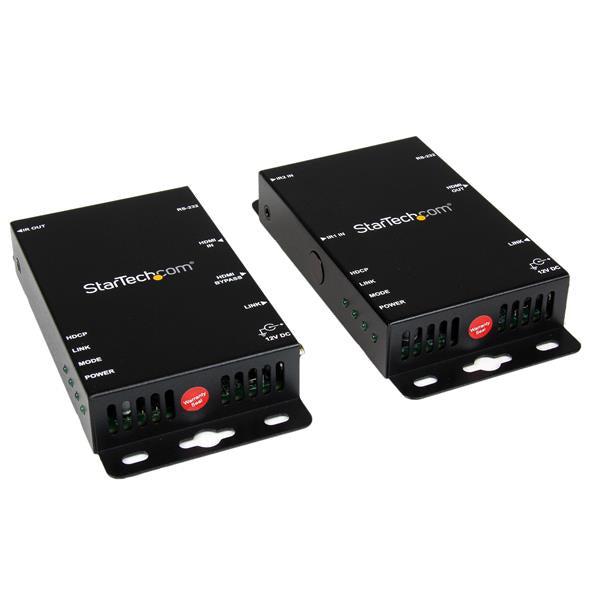

          StarTech.com 330 ft. (100 m) HDMI Over CAT5e / CAT6 HDbaseT Extender - UHD 4K - IR Extension - RS232 Extension - Power Over Ethernet (ST121UTPHD2)

          StarTech.com HDMI over CAT5e HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5,Cat5e,Cat6. AC input voltage: 110-240 V, Operating voltage: 12 V, Input current: 0.6 A. Receiver dimensions (WxDxH): 80 x 150 x 25 mm, Receiver weight: 579 g, Transmitter dimensions (WxDxH): 80 x 150 x 25 mm. Package dimensions (WxDxH): 248 x 304 x 66 mm, Package width: 309 mm, Package depth: 254 mm. Cables included: HDMI, IR

          Extend an HDMI® video and audio over standard CAT5e cabling, with support for RS232 Serial and Infrared controlThe StarTech.com HDBaseT extender kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility the transmitter and receiver can be used to transmit IR and RS232 serial communication over the same cable. The versatility of this video extender makes it an ideal solution for digital signage applications.What is HDBaseT?HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.Extend More with HDBaseTThe extender offers HDBaseT technology with HDMI, IR, and RS232 control in a single CAT 5 extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. While RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.Astonishing Picture Quality from an Impressive DistanceWith the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.With support for 4K 30Hz you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 164 feet away from your video source. Plus, because the extender is still backward compatible with High-Definition 1080p displays and video sources, you can rest assured this extender will make your video source look great in any remote digital signage application.Simplify Your SetupThis extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Mounting hardware is also built-in to both the extender and receiver for discrete, professional mounting.The ST121UTPHD2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

          Specifications :

          General Information

          Manufacturer StarTech.com
          Manufacturer Part Number ST121UTPHD2
          Manufacturer Website Address http://www.startech.com
          Brand Name StarTech.com
          Product Name HDMI over Cat5 Video Extender with Audio - RS232 and IR Control
          Product Type Video Extender Transmitter/Receiver
          UPC 065030848480
          Network (RJ-45)Yes
          Product ColorBlack

          Miscellaneous

          Package Contents
          • 1 x Local HDMI Extender Unit
          • 1 x Remote HDMI Receiver Unit
          • 1 x IR Receiver Cable
          • 1 x IR Transmitter Cable
          • 1 x HDMI Cable x 4 ft (1.2 Meters)
          • 2 x Universal Power Adapter NA / UK / EU
          • 1 x User Manual
          Environmentally FriendlyYes
          Environmental CertificationREACH

          Warranty

          Limited Warranty2 Year
