StarTech.com Extreme Networks 10056H Compatible SFP Module - 1000BASE-BX-D - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (10056H-ST). SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 286217327 h, Brand compatibility: Extreme Networks. Power consumption (typical): 1.3 W. Width: 56.6 mm, Depth: 13.7 mm, Height: 12.5 mm. Number of products included: 1 pc(s), Package width: 90 mm, Package depth: 115 mm
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

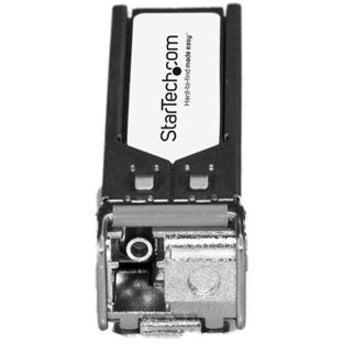

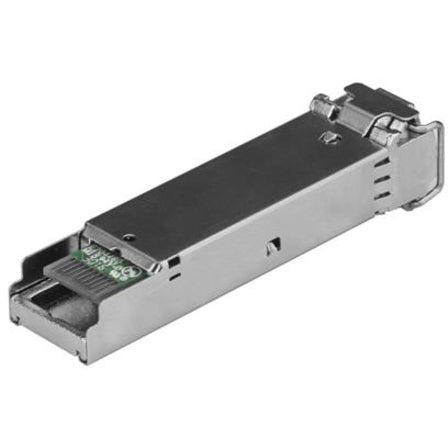

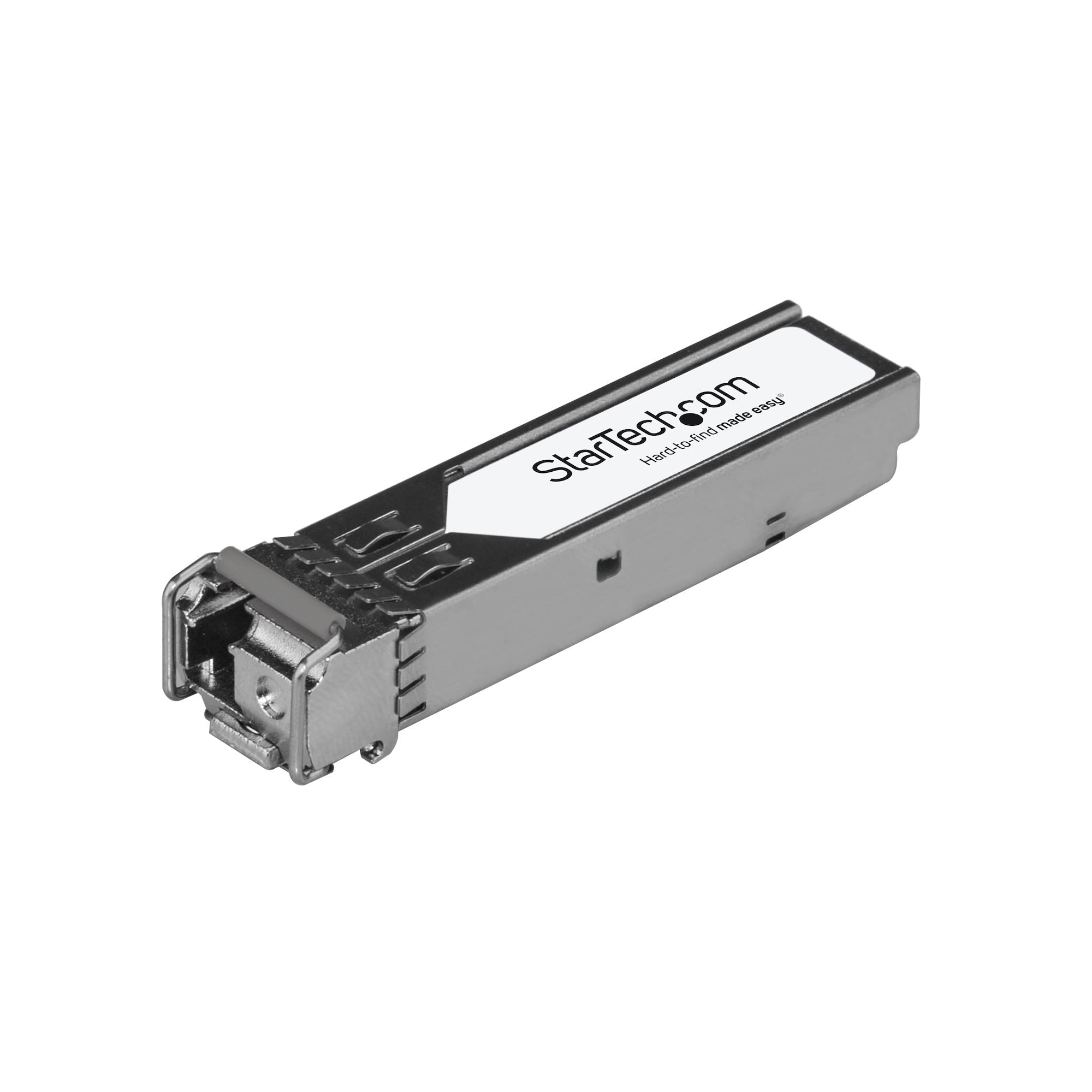

The 10056H-ST is an Extreme Networks 10056H compatible downstream fiber SFP transceiver which pairs with StarTech.com's 10057H-ST. They are designed, programmed and tested to work with 1000Base-BX-D compatible Extreme Networks switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1490nmTx/1310nmRx
Maximum Data Transfer Rate: 1Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: < 1.3W
DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% EXTREME NETWORKS 10056H COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Extreme Networks switches and routers to deliver dependable 1GbE connectivity - INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two - TECHNICAL SPECS: 1000BASE-BX-D
