StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter. Host interface: PCIe, Output interface: Firewire 800 / 400. Certification: CE, UL, FCC, TAA, REACH. Chipset: Texas Instruments - XIO2213B, Data transfer rate (max): 0.8 Gbit/s. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016. Width: 18 mm, Depth: 85 mm, Height: 120 mm
Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot

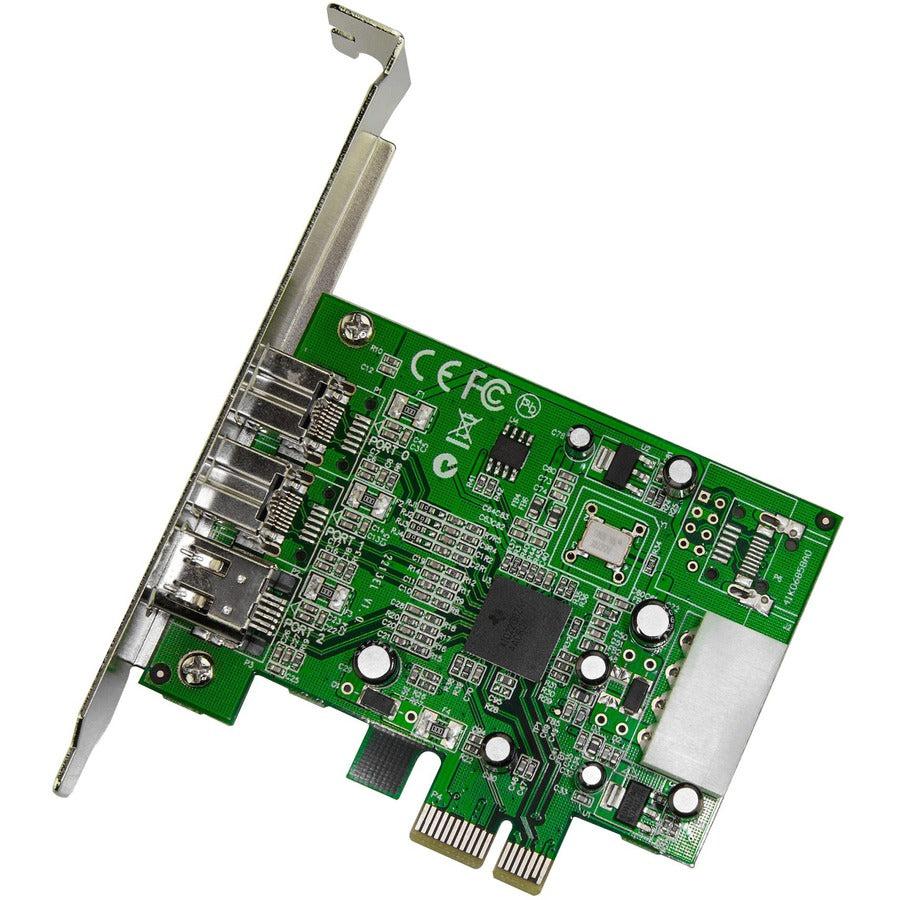

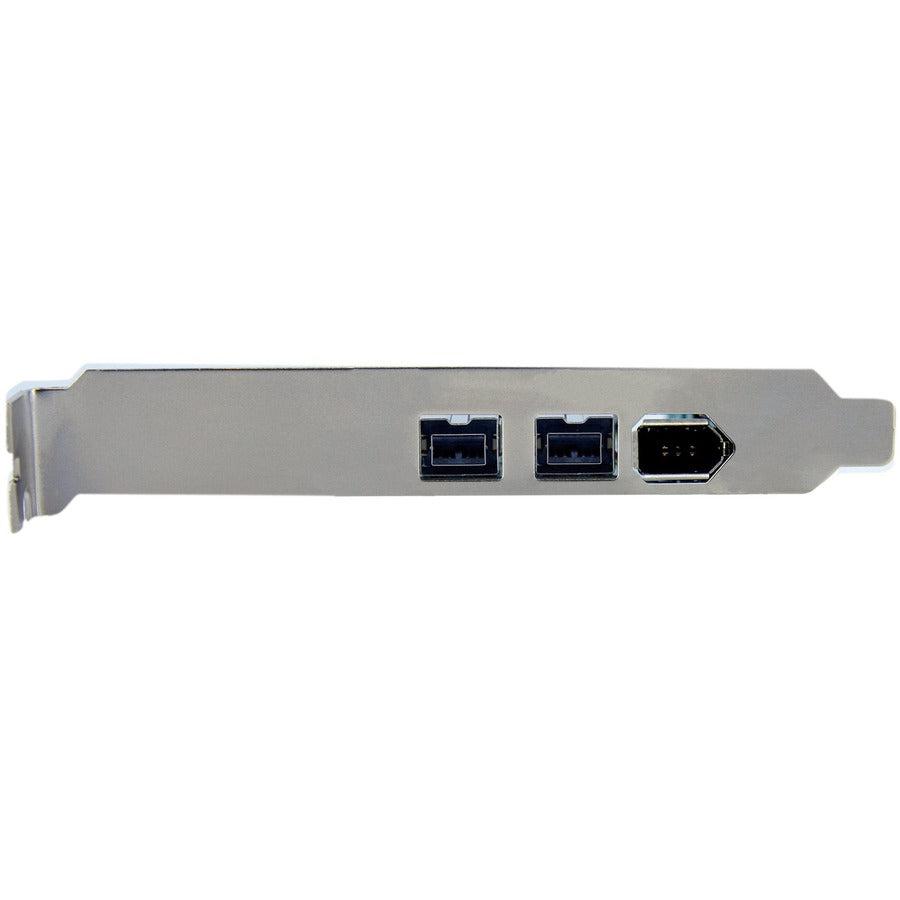

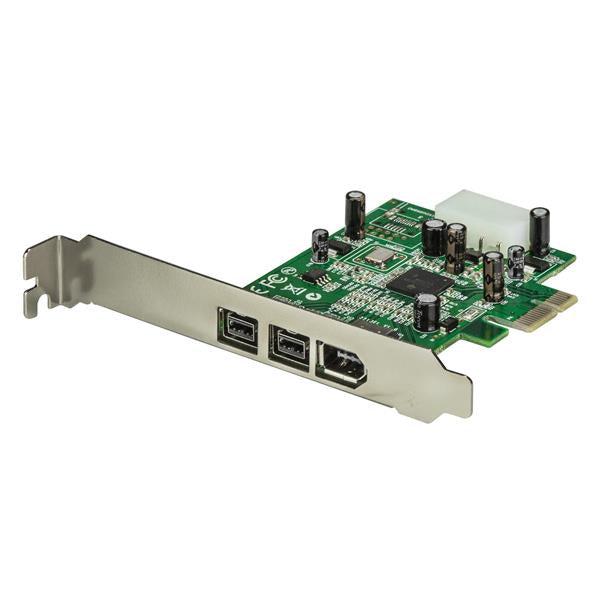

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.
The StarTech.com Advantage
- Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices - Utilizes a native PCI Express chipset design rather than a bridge chip, ensuring a fast, reliable and cost-effective FireWire expansion - Backed by a StarTech.com lifetime warranty and free lifetime technical support
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
PEX1394B3
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
3 Port 2b 1a 1394 PCI Express FireWire Card Adapter
Product Type
FireWire Adapter
UPC
065030825139
Height
4.7"
Width
0.7"
Weight (Approximate)
1.70 oz
Miscellaneous
Package Contents
3 Port 2b 1a 1394 PCI Express FireWire Card Adapter
