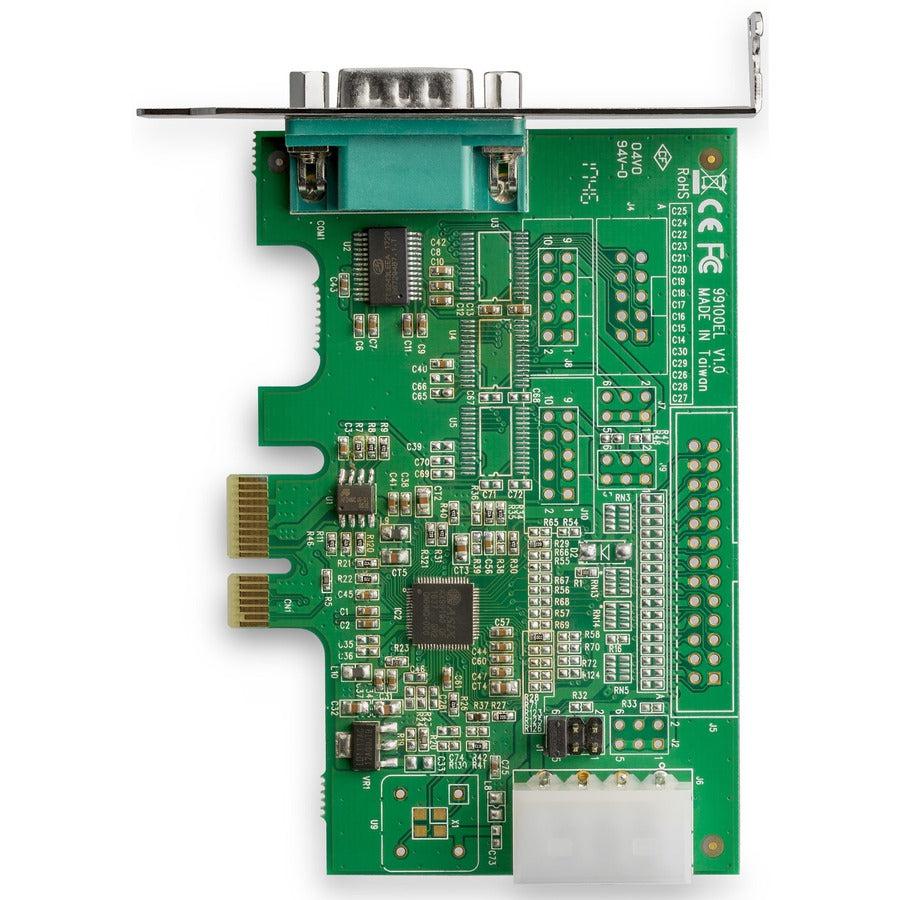

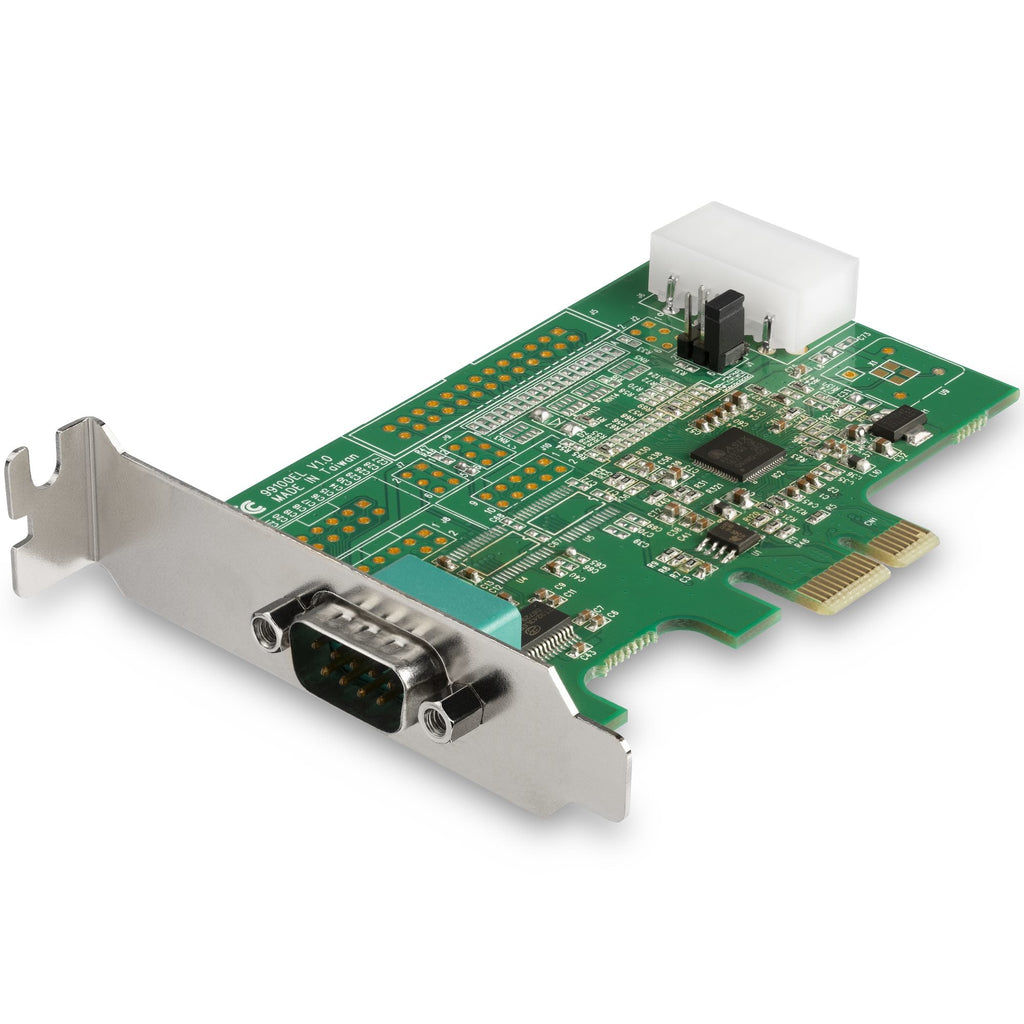

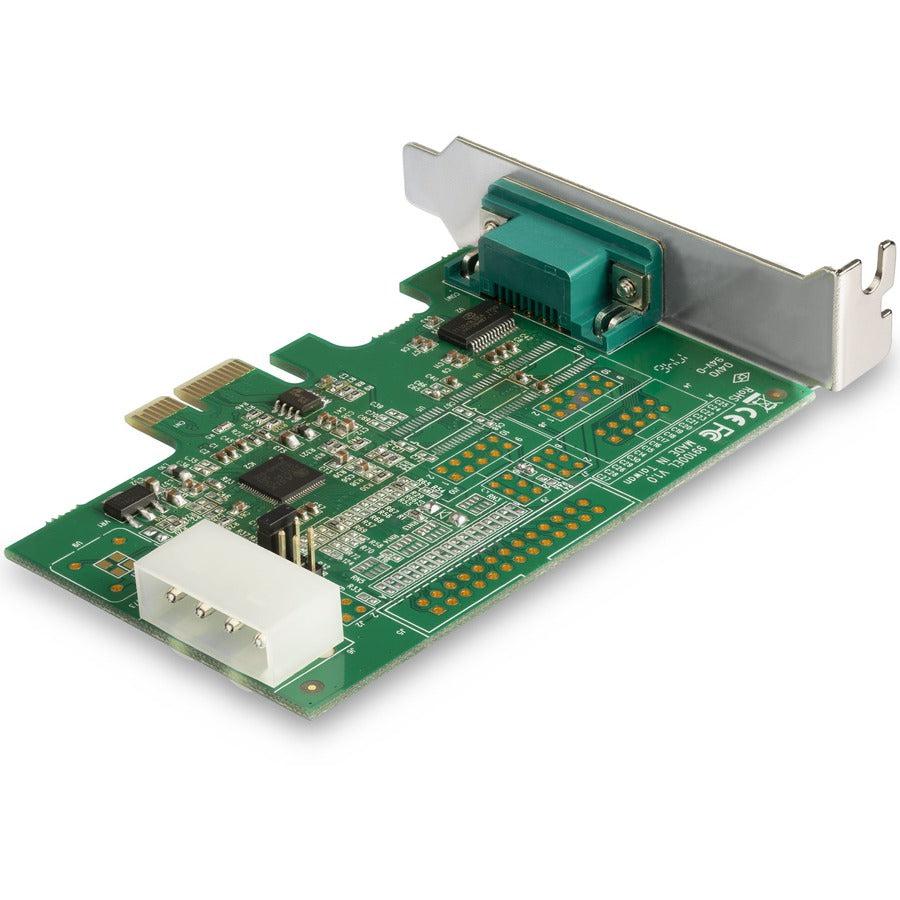

Startech.Com 1-Port Pci Express Rs232 Serial Adapter Card - Pcie Rs232 Serial Host Controller Card -

Description :

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux (PEX1S953LP)

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 277385 h, Certification: CE, FCC, Microsoft WHQL. Chipset: Asix AX99100, Baud rate: 921.4 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 67 mm, Depth: 98 mm, Height: 150 mm

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® CompatibleThis RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.Experience Optimal TechnologyThis PCIe to serial adapter supports the following features:• Compatible with industry standard 16950 UART• Supports max baud rate of up-to 921.4Kbps• Provides 5/12V power output on Pin 9 when external power is connected• 128-byte depth FIFO per transmitter and receiver• Supports 9, 8, 7, 6, 5 data bits• Asix AX99100 chipset• PCI Express 1.1 compliantPEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage
