Description :

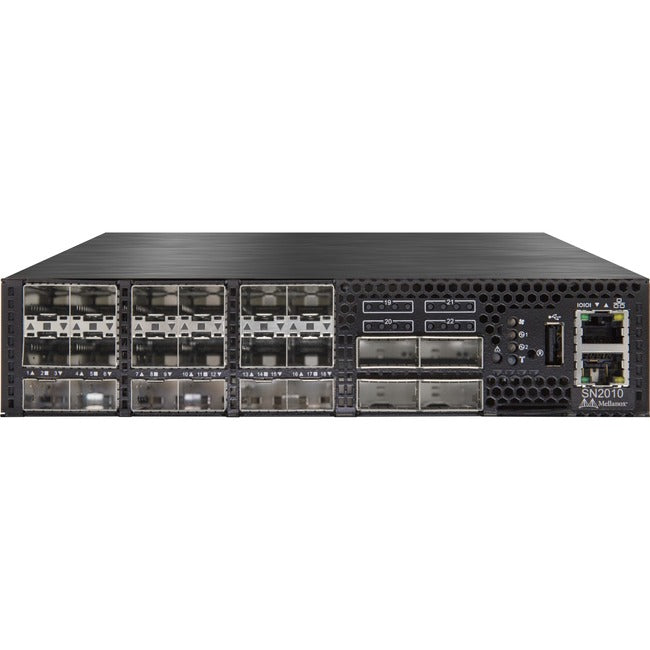

Mellanox SN2010 Ethernet Switch for Hyperconverged Infrastructures
Mellanox MSN2010-CB2F3C Mellanox Spectrum Based 25GbE/100GbE 1U Open Ethernet Switch with Cumulus Linux 18 SFP28 Ports and 4 QSFP28 Ports 2 Power Supplies x86 CPU 32G RAM and 30G SSD Short Depth P2C Airflow
Half-width 10/25GbE and 100GbE Ethernet Switch for Hyperconverged Infrastructures and ESF (Ethernet Storage Fabrics)
The SN2010 switch is the ideal top of rack (ToR) solution for hyperconverged and storage deployments. Packed with 18 ports of 10/25GbE and 4 splittable ports of 40/100GbE, the SN2010 can deliver up to 1.7Tb/s aggregate throughput.
All Spectrum-based switches, including the SN2010, support low-latency line rate traffic for all packet sizes and are ONIE bootable with support for Cumulus Linux, Mellanox Onyx (successor to MLNX-OS Ethernet) and other open-source operating systems with a broad installed base that drives the world's most innovative data center infrastructures.
SN2010 introduces low latency for 10/25GbE and 100GbE switching, features a robust implementation of data, control and management planes, and offers the most compact form factor and lowest power consumption. SN2010 supports the same features and scale as SN2700. The SN2010 design allows either stand-alone single switch installation, or side-by-side.
- 1.7Tb/s
- 1.26 billion packets per second (Bpps)
- 300nsec for 100GbE port-to-port
- Consistently low latency regardless of packet size, or L2 vs L3 forwarding
- Side by side configuration
- Small port count
- Lowest power: 57W (ATIS) power consumption
- Half-width form factor
- RoHS compliant
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Compatible Rack Unit: 1U
Product Series: SN2000
Brand Name: Mellanox
Form Factor: Rail-mountable
Manufacturer: Mellanox Technologies Ltd
Product Model: SN2010
Product Name: SN2010 Ethernet Switch for Hyperconverged Infrastructures
Product Line: Spectrum
Manufacturer Part Number: MSN2010-CB2F3C
Manufacturer Website Address: http://www.mellanox.com
Limited Warranty: 1 Year
Weight (Approximate): 10.01 lb
Specifications :
General Information
Manufacturer | NVIDIA Corporation |
---|---|
Manufacturer Part Number | MSN2010-CB2F3C |
Manufacturer Website Address | http://www.nvidia.com |
Brand Name | Mellanox |
Product Line | Spectrum |
Product Series | SN2000 |
Product Model | SN2010 |
Product Name | SN2010 Ethernet Switch for Hyperconverged Infrastructures |
Product Type | Ethernet Switch |
UPC | 7290108487480 |
Ethernet Technology | 100 Gigabit Ethernet |
---|
Height | 1.7" |
---|---|
Width | 7.9" |
Depth | 20" |
Weight (Approximate) | 10.01 lb |
Environmentally Friendly | Yes |
---|
Limited Warranty | 1 Year |
---|
