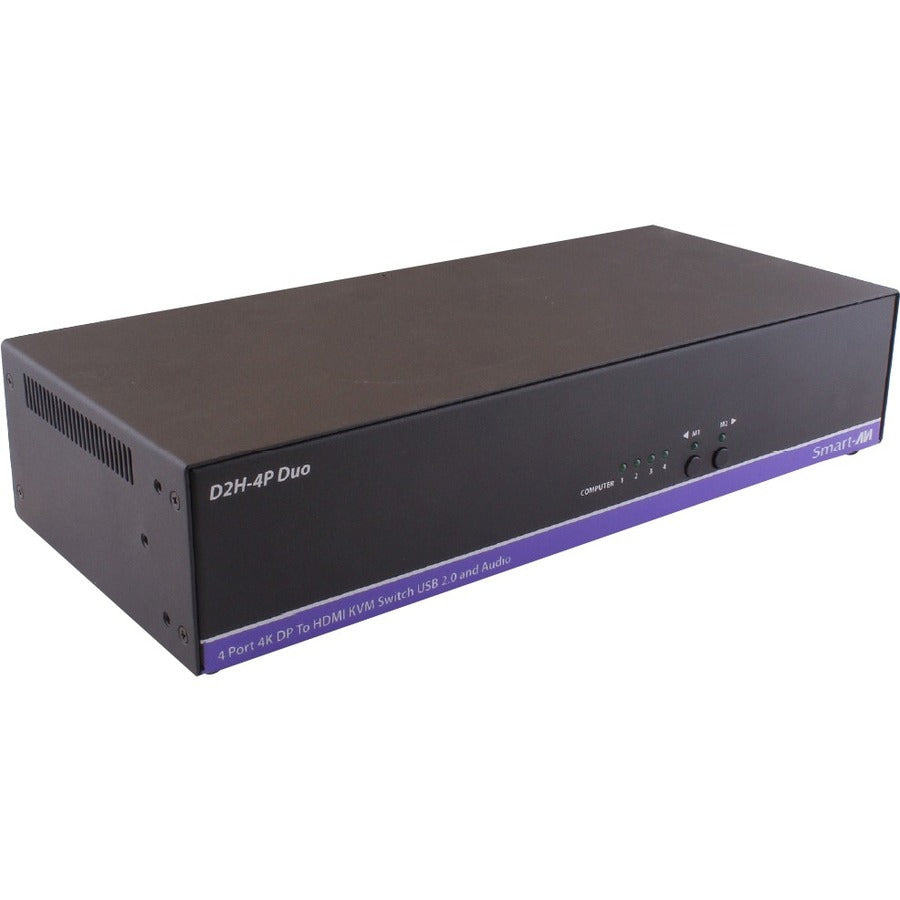

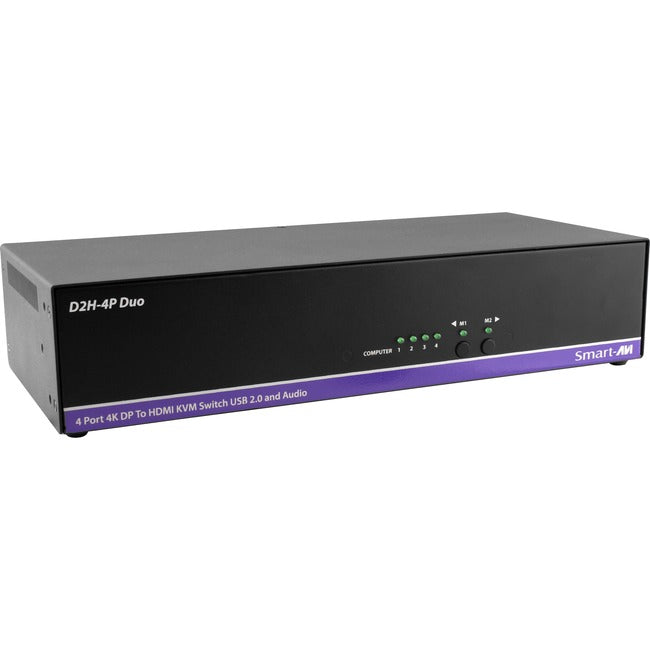

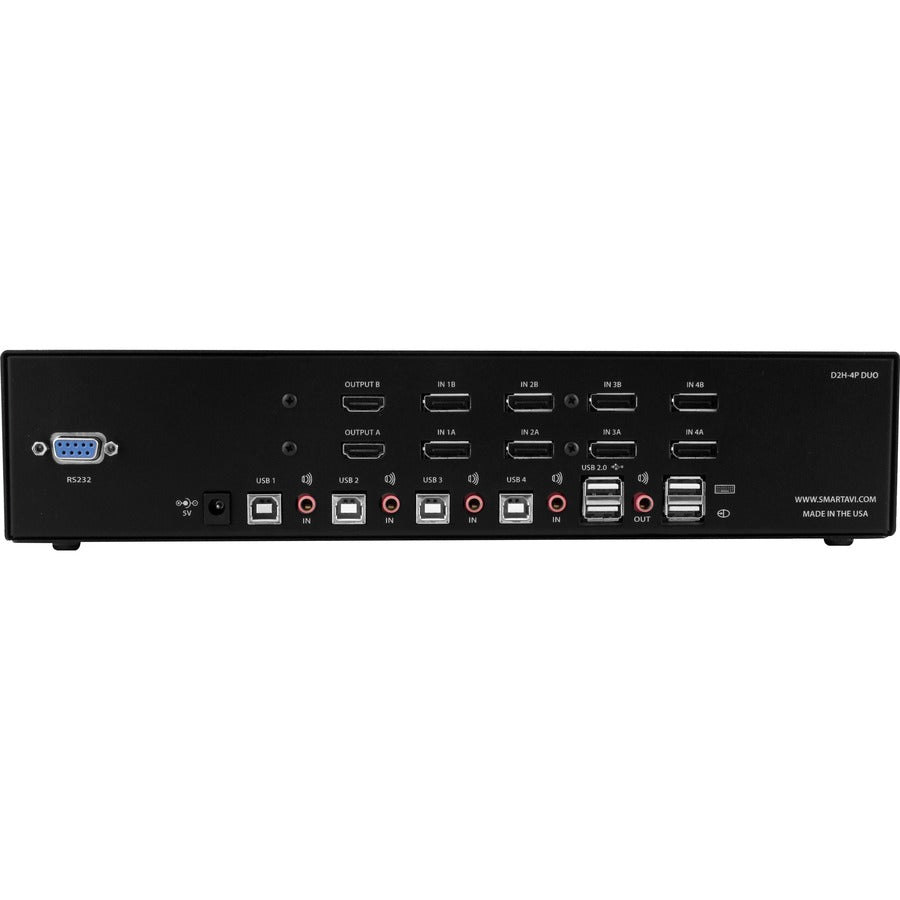

Smartavi 8-Port Displayport In And 2-Port Hdmi Out Kvm Switch

Description :

SmartAVI 8-Port DisplayPort In and 2-Port HDMI Out KVM Switch

D2H-4P-Duo is a dedicated multi-platform KVM switch capable of managing four computers with eight displays through a single, central workstation. Built with two ultra-HD ready HDMI outputs, the D2H-4P-Duo is the first Displayport switch on the market to offer full video emulation directly from the device. Up until now, DisplayPort switches lost emulated picture when disconnected from monitors, leading to confusion and disorganization upon reconnecting. With D2H-4P-Duo, full EDID-assisted HDMI video emulation ensures visual workspaces and screen resolutions are remembered every time: simple!

The D2H-4P-Duo is DisplayPort 1.2 and HDMI compliant, supporting screen resolutions up to 4K Ultra-HD (3840x2160 @ 30Hz) for remarkable and responsive video emulation. Additionally, the D2H-4P-Duo is USB peripheral-friendly, compatible with printers, keyboards, and mice. The D2H-4P-Duo is also easy to control with both a simple front-panel interface, as well as RS-232 functionality.

• Full EDID video emulation via two HDMI outputs
• KVM control between four connected computers from a single workstation
• Supports resolutions up to 4K (3840x2160 @30Hz)
• DisplayPort 1.2 and HDMI compliant
• Zero pixel loss with TMDS signal correction
• Supports all USB 2.0 devices, including keyboard and mouse
• Supports Windows, Mac and Linux
• Optionally rack mountable
• Hot key commands for quick channel selection
• Independent (asynchronous) switching of KVM and peripheral USB ports; users can scan a document and save in another computer
• Complete KVM emulation for error free booting
• Front panel keys for manual switching
• Full HDMI support and backwards compatible with prior DisplayPort versions

• With this KVM Switchbox, avoid the constant switching of cables between sources


• Switch between 4 computers and 1 local users


• 3840 x 2160 resolution for high-quality video delivery


• Hot-pluggable USB interface for a quick connection


• Designed to be used as a rack-mountable

Product Type: KVM Switchbox
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Rack-mountable
Manufacturer: Smart Audio Video Innovation
Product Model: D2H-4P-Duo
Product Name: 8-Port DisplayPort In and 2-Port HDMI Out KVM Switch
Manufacturer Part Number: D2H-4P-DUO-S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:

• 8-Port DisplayPort In and 2-Port HDMI Out KVM Switch
• PS5VDC4A Power Supply
