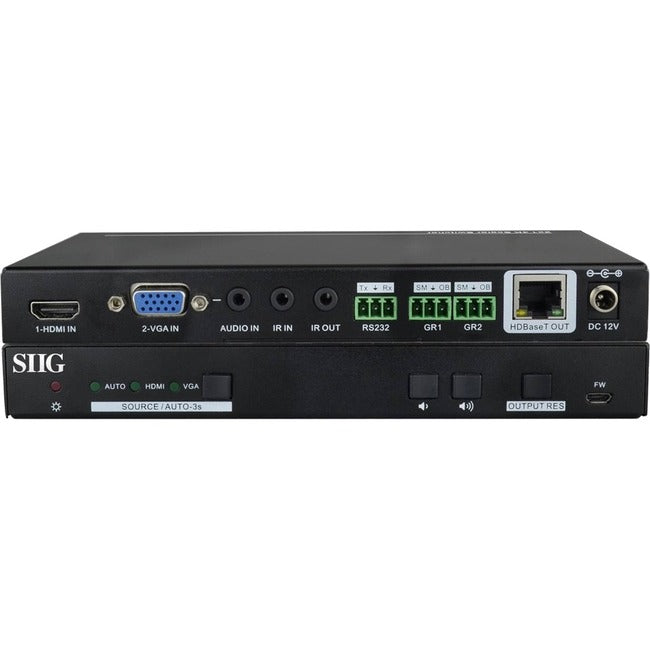

SIIG HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher CE-H24211-S1

Description :

SIIG HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher

Allows you to select and switch between any of the 2 source devices (1 HDMI & 1 VGA) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio output and IR control

• Scales and switches an HDMI or VGA input to an HDBaseT output
• Features manual or auto device switching options
• Output resolution can be selected between 720p, 4K @60Hz YUV 4:2:0 or 4K @30Hz YUV 4:4:4
• Transmits signals via HDBaseT technology up to 40m (131ft) at 4K or 70m (230ft) at 1080p
• Supports Bi-directional IR extension, RS232 control, advanced EDID management
• Supports bidirectional PoH, the HDBaseT receiver can be powered by this KIT, or this KIT can be powered by receiver via HDBaseT port
• Compliant with HDMI 1.4 and HDCP 2.2 on HDMI output

• Quickly and easily connect with the display


• Connect single display to 2 sources


• 4096 x 2160 resolution for high-quality video delivery

Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher
Manufacturer Part Number: CE-H24211-S1
Manufacturer Website Address: http://www.siig.com
Package Contents:

• HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher
• Power Adapter
• 2 x Mounting Ears
• 4 x Screws
• 4 x Plastic Cushions
• RS-232 Cable
• User Manual
