Siig Hdmi 2.0 Edid Emulator

Description :

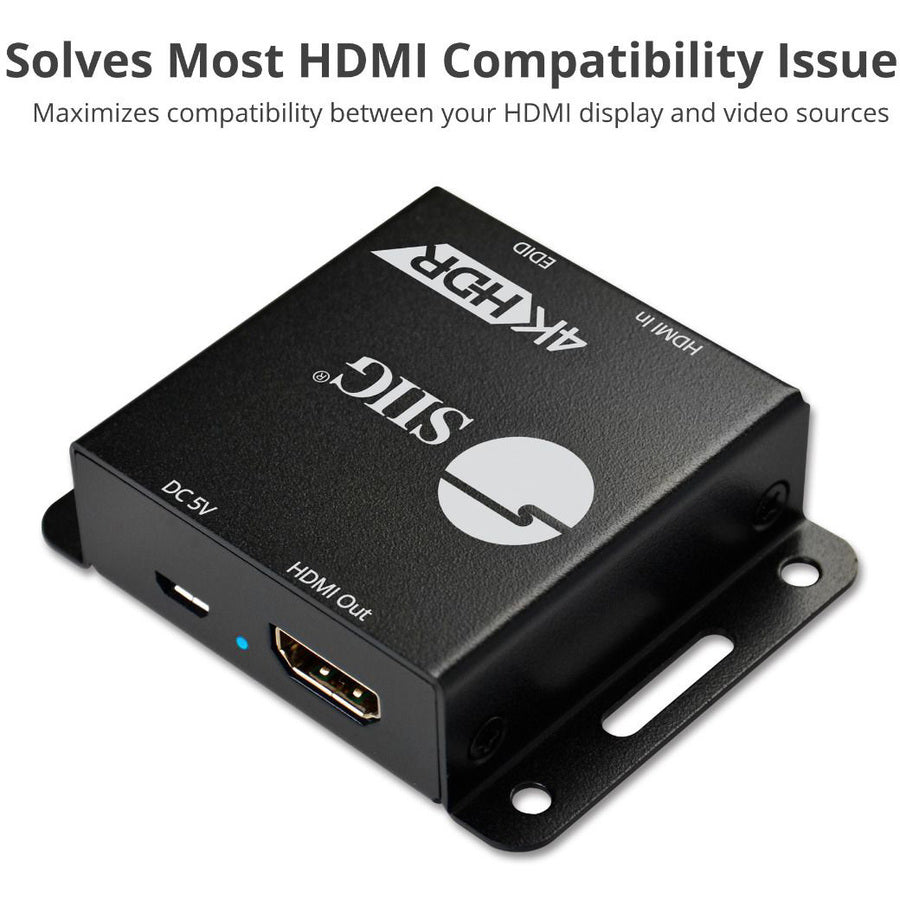

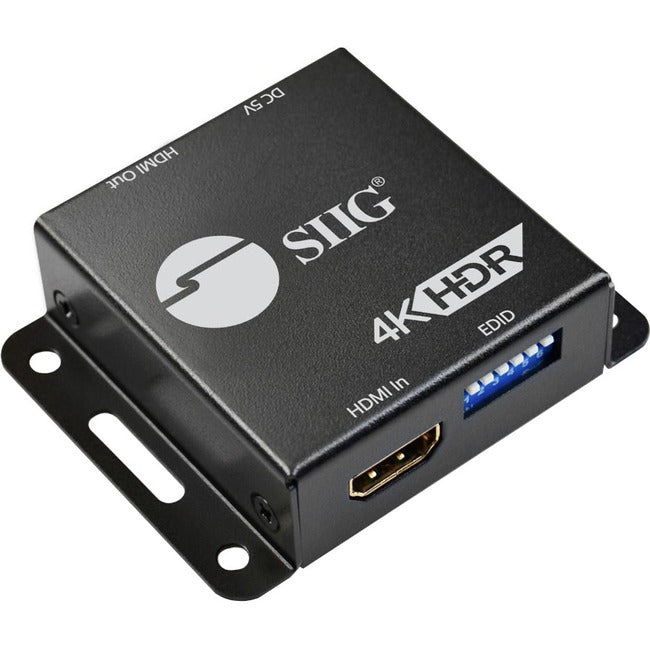

SIIG HDMI 2.0 EDID Emulator

Emulates and learns the EDID of a video display providing constant and reliable EDID data to the HDMI source device to prevent audio/video loss

• Provides reliable EDID data between the source and display to ensure audio and video signal compatibility to provide a smooth stable high quality audio and video experience
• Amplifies and equalizes the HDMI signal transmission for use with longer HDMI cables and allows for multiple layers of cascading
• Supports video resolution up to 4Kx2K 60Hz (YUV 4:4:4 8bit) or HDR 4Kx2K (YUV 4:2:0 10bit)
• Supports 3D, CEC, HDMI 2.0 and HDCP 2.2 protocols

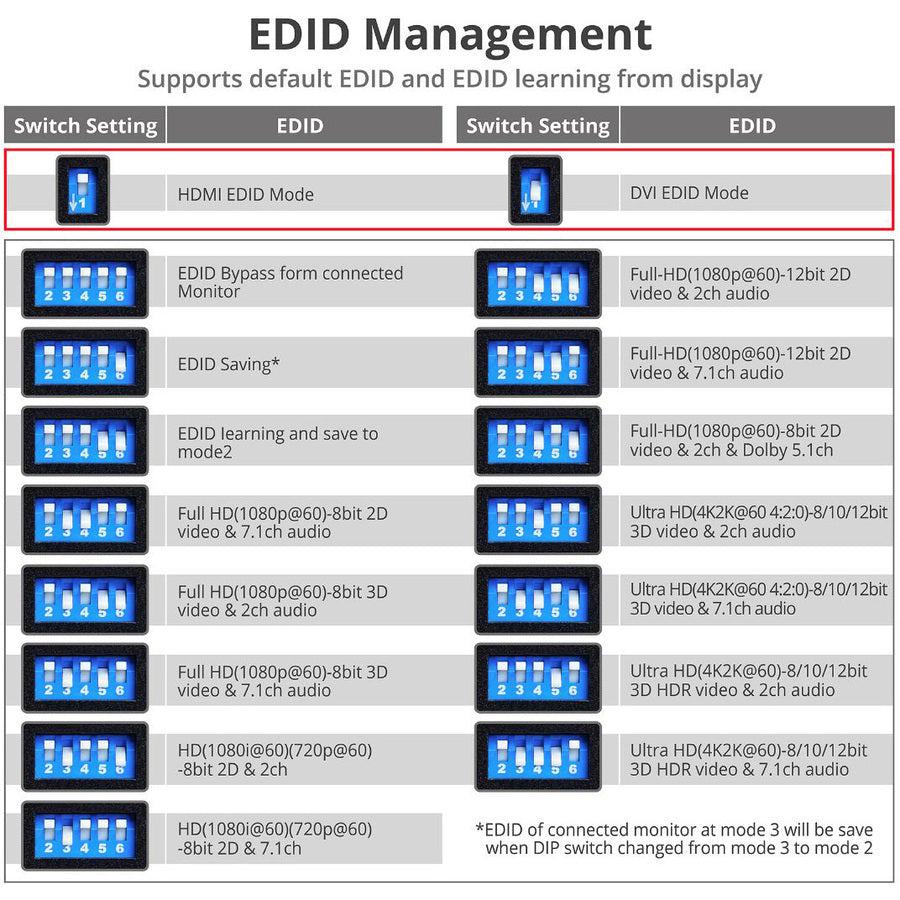

• Supports 17 EDID modes including default EDID and EDID learning from the display

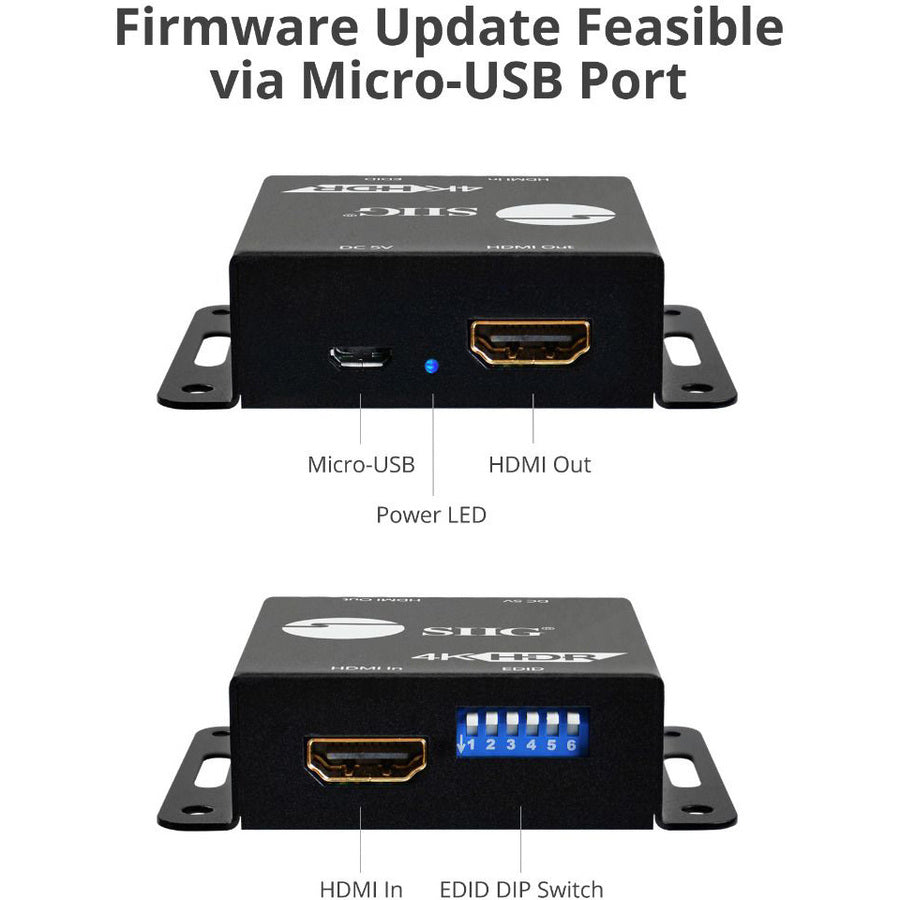

• Built-in Micro USB power connector provides external power and also can be used for firmware updating as needed
• Wall mount metal housing enhances durability and provides excellent heat dissipation for reliable performance and long lifespan

• Memorizes the display to reduce loss of signals and display quality as you disconnect or reconnect the device


• Extend in-game resolution, add post-processing effects, play with different controllers, and do all types of cool things with your games


• Mountable to a wall, saves you floor space and yet easy-to-reach

Product Type: Video Emulator
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Brand Name: SIIG
Form Factor: Wall Mountable
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 EDID Emulator
Manufacturer Part Number: CE-H24Z11-S1
Manufacturer Website Address: http://www.siig.com

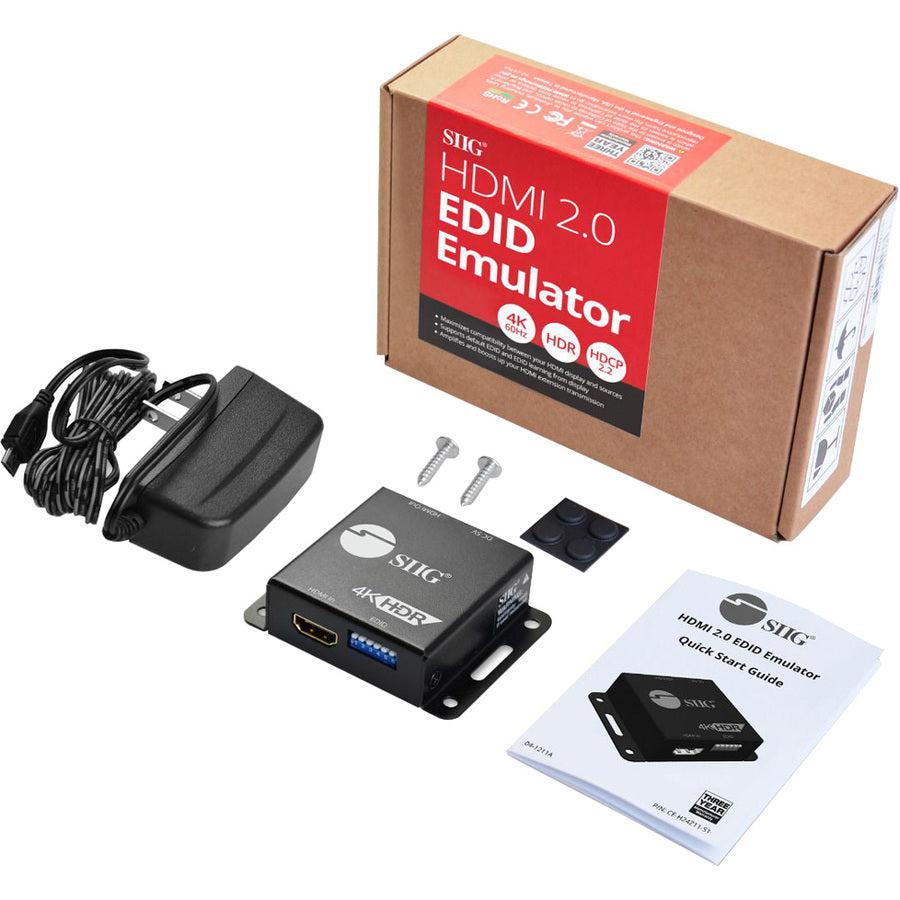

Package Contents:

• HDMI 2.0 EDID Emulator
• Power Adapter
• Quick Start Guide
