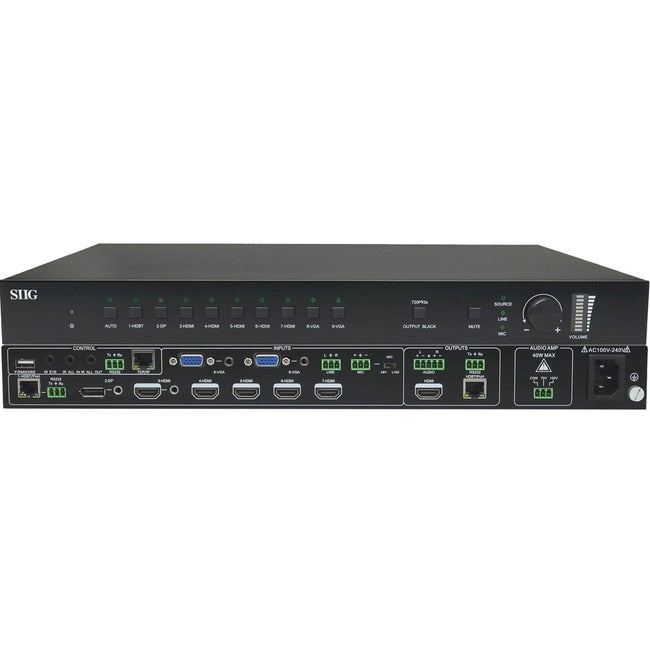

SIIG 9x1 HDBaseT 4K Scaler Switcher CE-H24311-S1

Description :

SIIG 9x1 HDBaseT 4K Scaler Switcher

Allows you to select and switch between any of the 9 source devices (1 DisplayPort, 5 HDMI, 2 VGA, 1 HDBaseT) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio and IR control

• Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously
• Output resolution can be selected between720p, 4K @60Hz YUV 4:2:0, or 4K @30Hz YUV 4:4:4
• Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p
• Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p
• Device switching controllable via push buttons, IR remote, RS232 and GUI
• Supports Bi-directional IR control and RS232 pass-through

More from the Manufacturer

• Quickly switches both video and audio between sources without physical access


• Trouble free connection with display


• Connect single display to 9 sources


• 4096 x 2160 resolution for high-quality video delivery

Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: SIIG
Form Factor: Rack-mountable
Manufacturer: SIIG, Inc
Product Name: 9x1 HDBaseT 4K Scaler Switcher
Manufacturer Part Number: CE-H24311-S1
Manufacturer Website Address: http://www.siig.com
Package Contents:

• 9x1 HDBaseT 4K Scaler Switcher
• HDBaseT Receiver
• IR Receiver
• IR Emitter
• IR Remote
• Power Cord
• 4 x Switcher Plastic Cushions
• 4 x Receiver Plastic Cushions
• 2 x Switcher Mounting Ears
• 6 x Screws
• 2 x Receiver Mounting Ears
• 2 x Screws
• 6 x 3-pin phoenix connectors
• 5-pin phoenix connectors
• 2 x RS-232 cable (3-pin to DB9)
• User manual
