Siig 4K Hdmi With Audio Extractor Converter - Analog Stereo, Toslink Optical, Coaxial S/Pdif

Description :

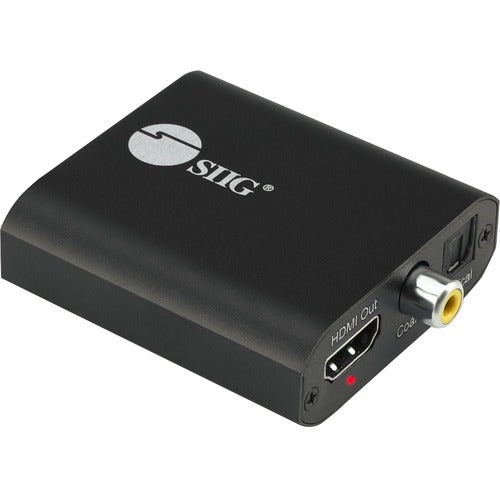

SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo, Toslink Optical, Coaxial S/PDIF

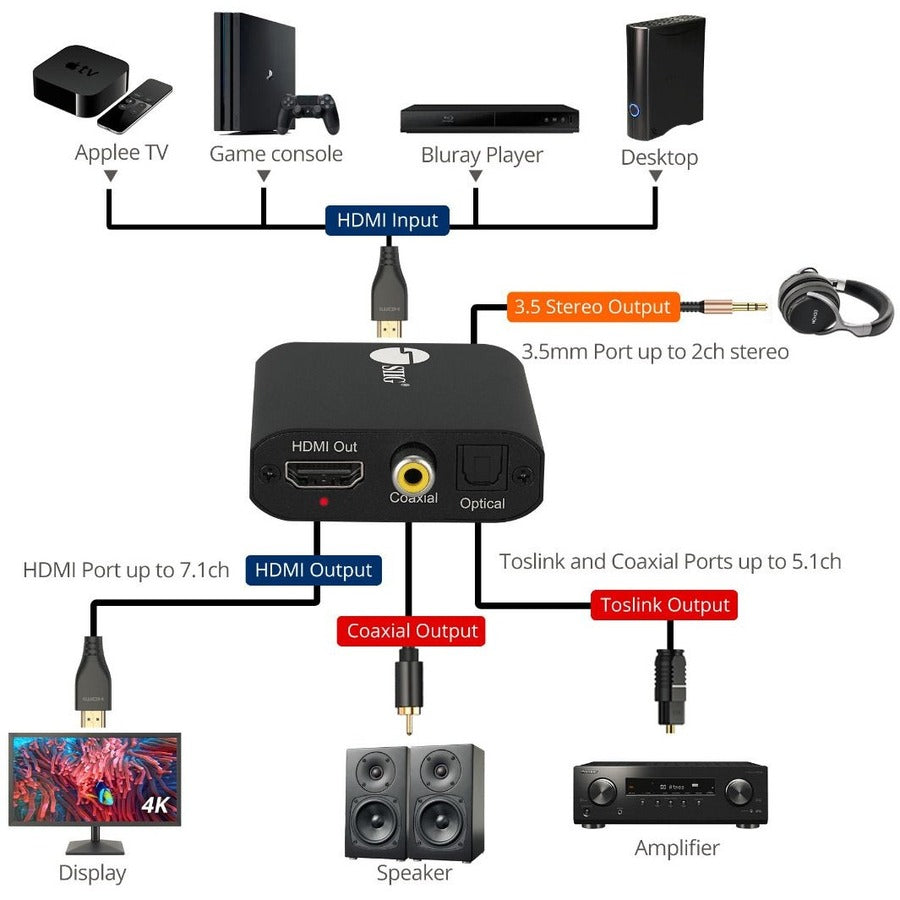

Extracts 4K HDMI audio and splits it to analog stereo, Toslink optical digital, and Coaxial S/PDIF outputs

Features

• Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or
  coaxial S/PDIF outputs
• Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
• Supports 340MHz/10.2Gbps per channel bandwidth
• Supports up to 16-bit per channel (48-bit all channel) deep color

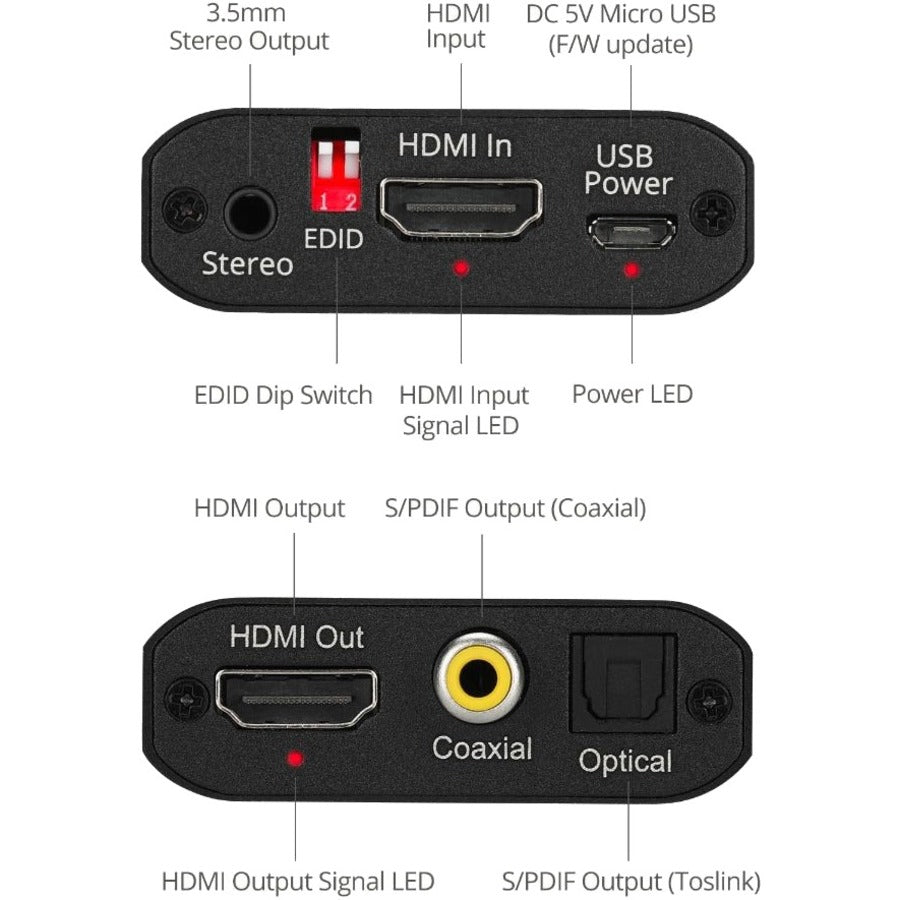

• EDID management DIP switches allows the best performance between the connected devices
• Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
• Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
• Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation

• Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or coaxial S/PDIF outputs


• Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit


• Supports 340MHz/10.2Gbps per channel bandwidth


• Supports up to 16-bit per channel (48-bit all channel) deep color


• EDID management DIP switches allows the best performance between the connected devices


• Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output


• Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital


• Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation

Product Type: Signal Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: SIIG
Form Factor: External
Manufacturer: SIIG, Inc
Product Name: 4K HDMI with Audio Extractor Converter
Manufacturer Part Number: CE-H26Q11-S1
Manufacturer Website Address: http://www.siig.com

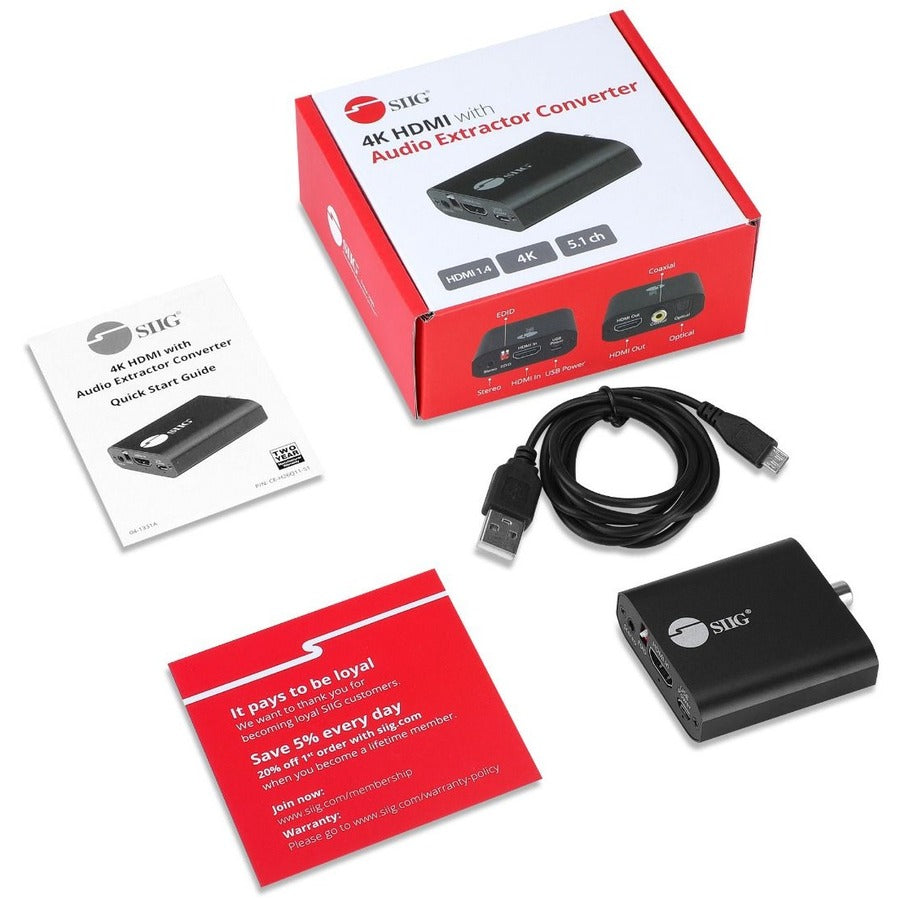

Package Contents:

• 4K HDMI with Audio Extractor Converter
• Micro USB Power Cable
• Quick Start Guide
