Siig 1X4 12G Sdi Distribution Amplifier - 70M

Description :

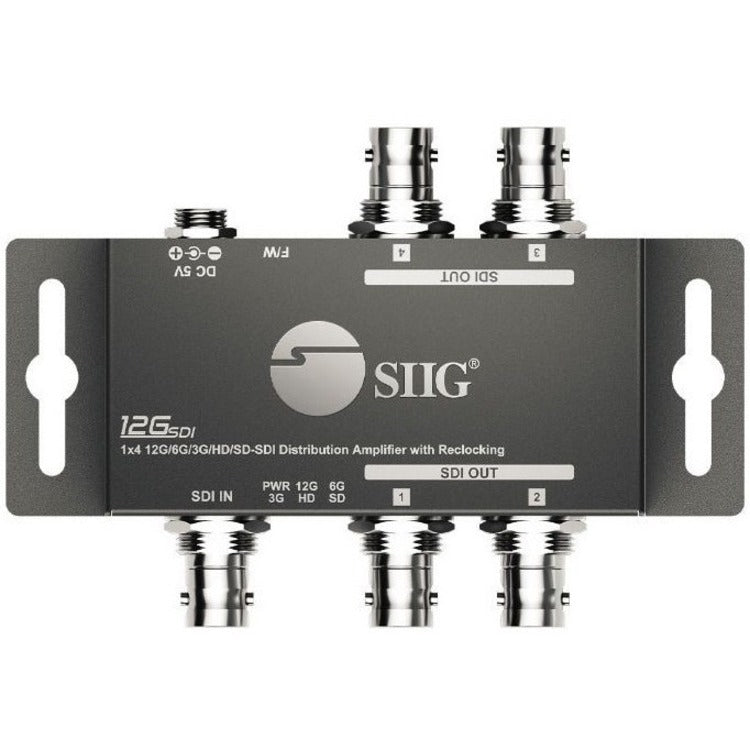

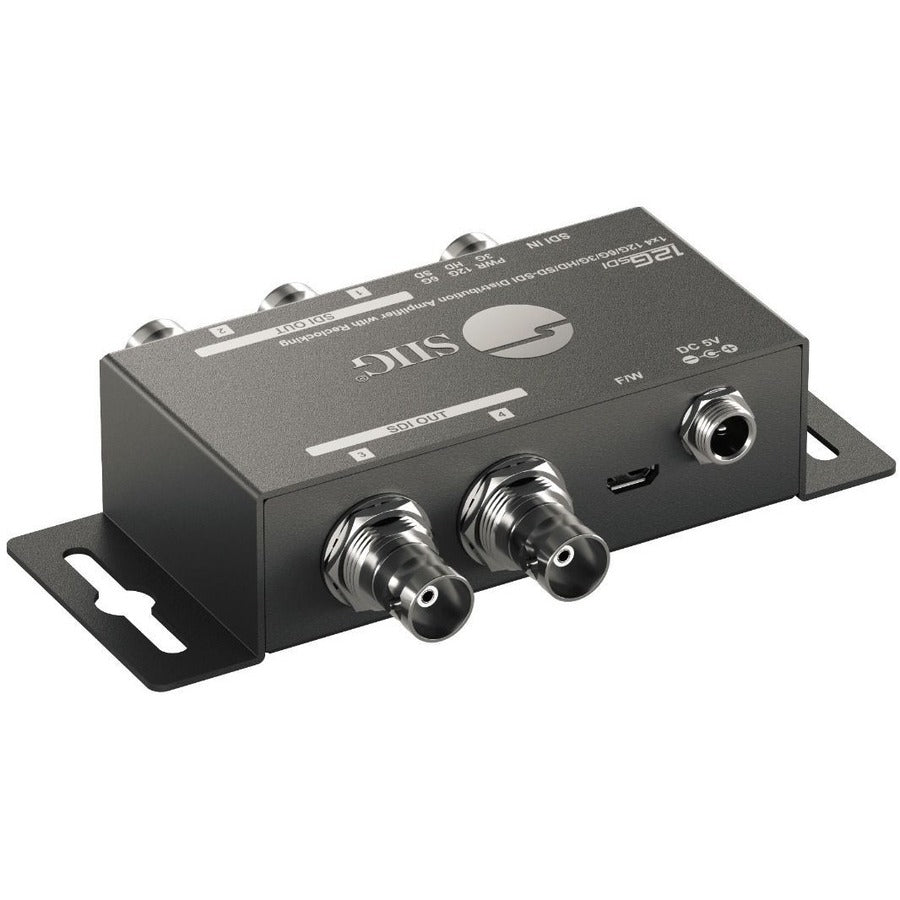

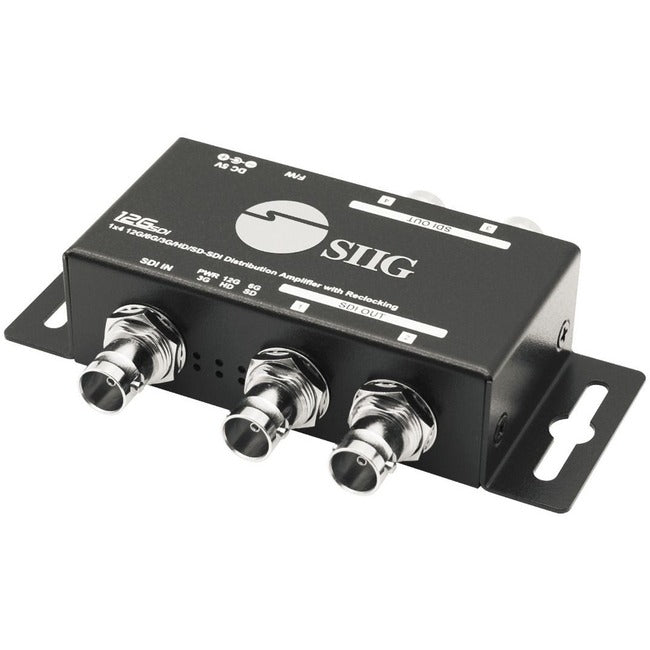

SIIG 1x4 12G SDI Distribution Amplifier - 70M

Duplicates and splits one 12G SDI input into four 12G SDI outputs for real time simultaneous multi-viewing

• Handy tool duplicates and splits one 12G SDI input into four 12G SDI outputs
• Input signal automatic equalization technology provides transmission distance of 180m (594ft) @3G, 100m (330ft) @6G and 70m (230ft) @12G using Belden 1694A cable
• Transmits ancillary data and embedded audio signals
• Built-in re-clocking and equalization features provides the best performance and maintains signal integrity without signal loss
• Re-clocking SDI signal technology is the perfect solution for cascading multiple units for longer transmission distances

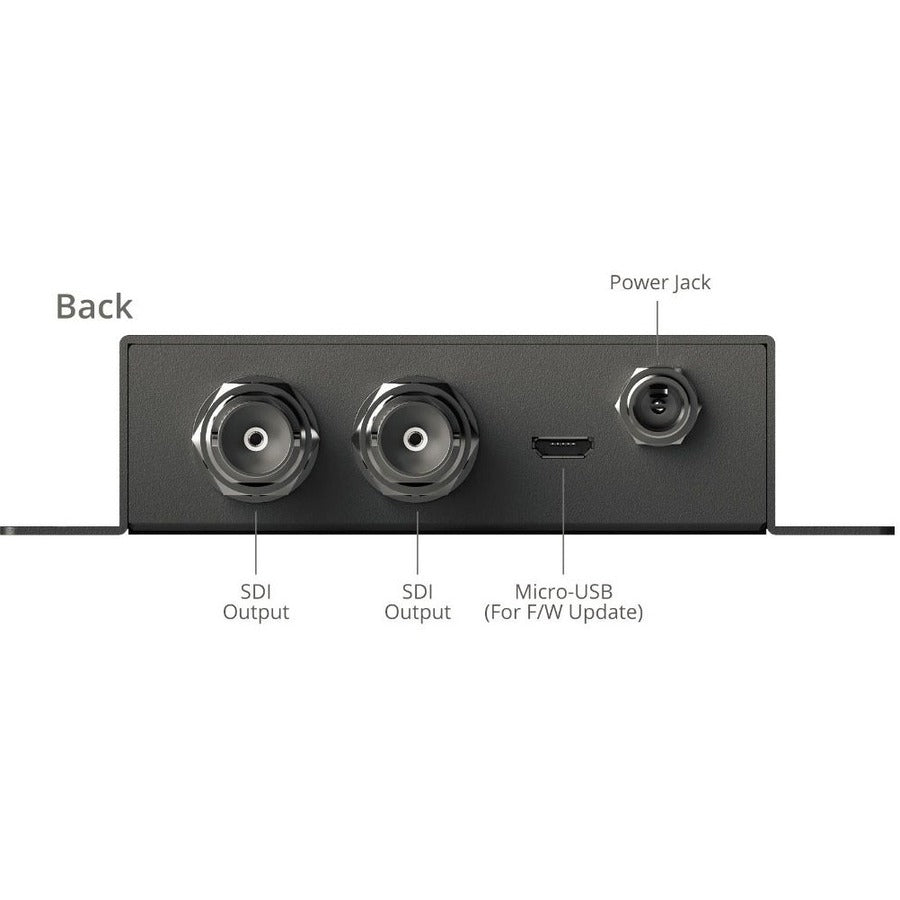

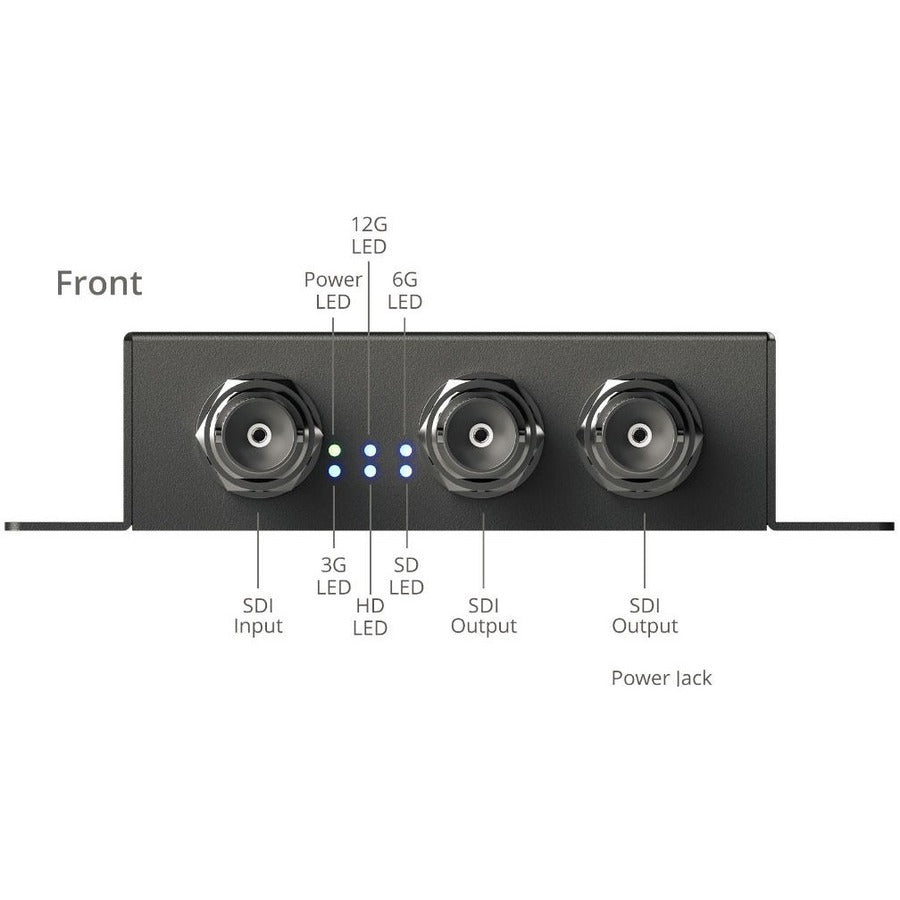

• LED indicators for signal lock and video rate notification
• Inter-locking power supply for safe reliable power connection
• Metal housing provides durability and minimizes EMI/RF interference for long life and dependable performance
• Plug and play, no software installation required

• Distribute/amplify audio to the required distance without signal degradation with this audio distribution amplifier


• Establishes a rapid connection with USB devices

Product Type: Audio Distribution Amplifier
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Product Material: Metal
Brand Name: SIIG
Length: 4.4"
Manufacturer: SIIG, Inc
Product Name: 1x4 12G SDI Distribution Amplifier
Manufacturer Part Number: CE-SD0G11-S1
Manufacturer Website Address: http://www.siig.com

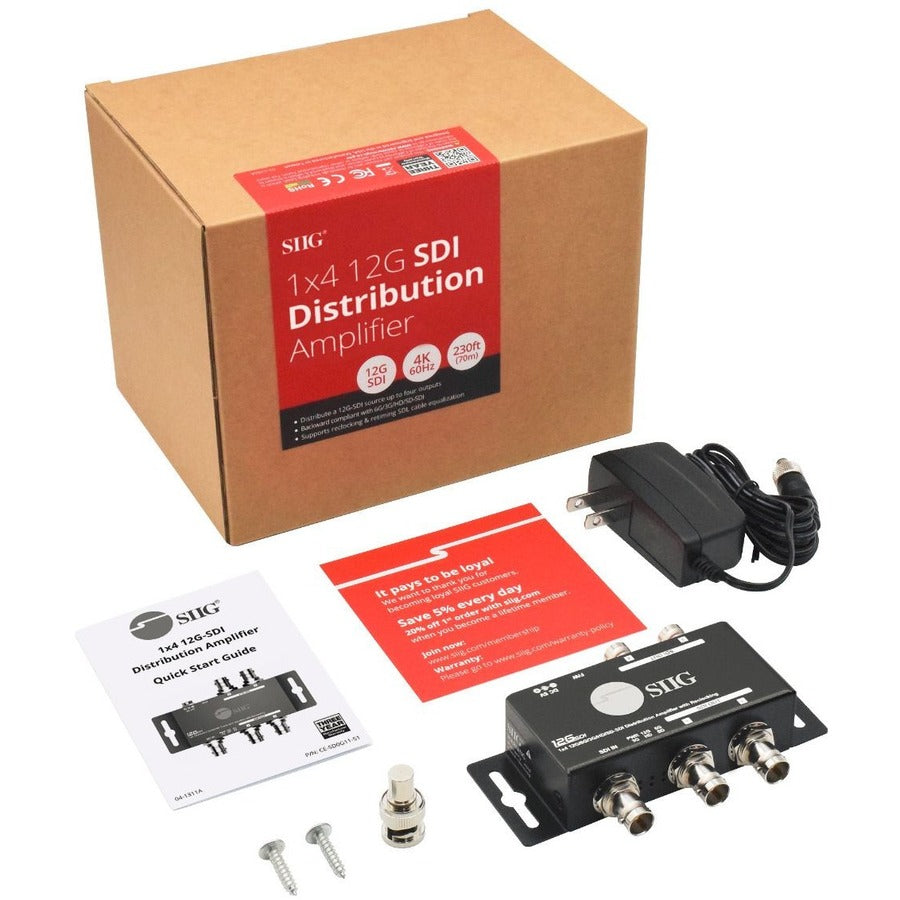

Package Contents:

• 1x4 12G SDI Distribution Amplifier
• Power Adapter
• 1 x BNC 75 ohm Terminator
• 2 x Screw kit
• Quick Start Guide
