Scanstrut WD-OPNARY-01 Top Plate f/PowerTower® Open Array Mounts - 4°

Description :

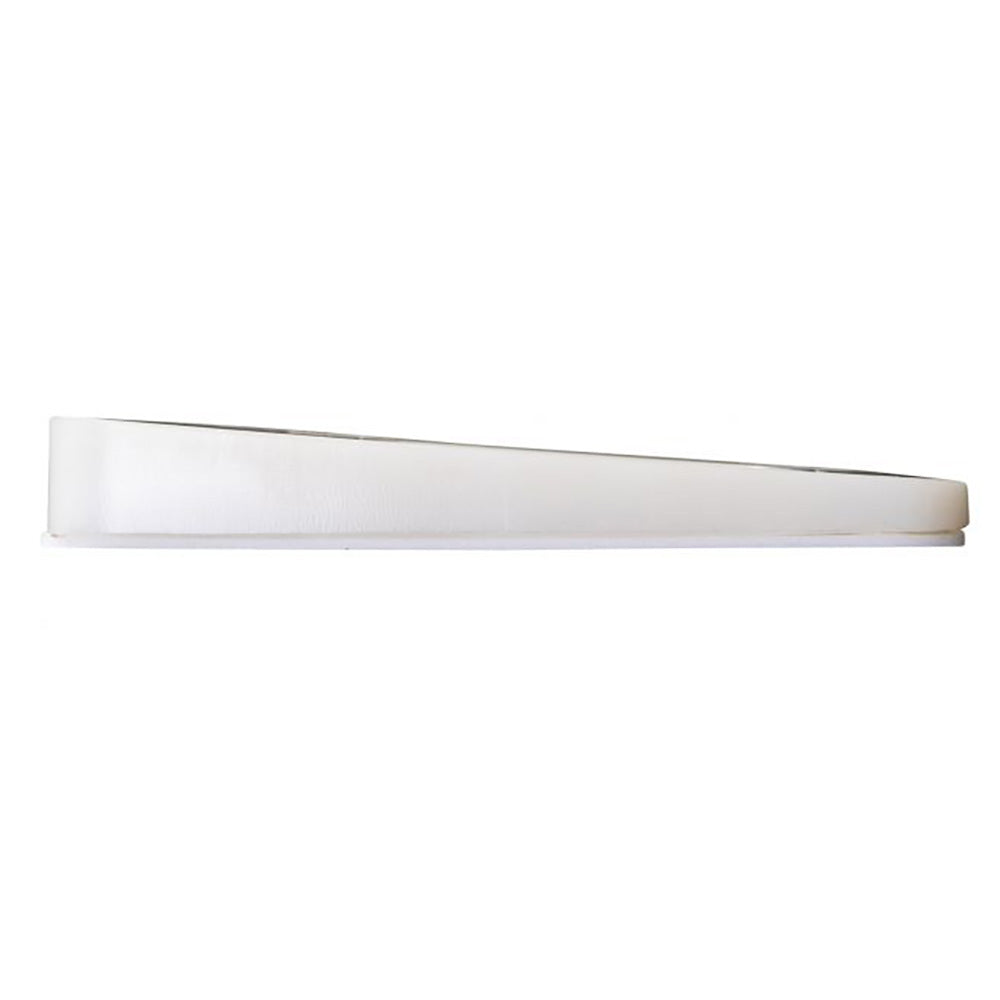

WD-OPNARY-01 Top Plate for PowerTower® Open Array Mounts - 4°

Enhance the performance of your radome with our tough, marine-grade, UV stable wedge that angles the radar down 4° below horizontal to provide a level horizon for your radar when the boat is underway.

Mounts between PowerTower® mount and base of open array radar.

Compatible with:

• Furuno - 1762, 1932, 1934, 1942, 1944, 1954, 851, DRS12A (6'), DRS12A (4'), DRS25A (4'), DRS25A (6'), DRS4A, DRS6A / DRS6A X CLASS, DRS6A-NXT radars
• Garmin - GMR Fantom 254, 256, 54, 4, 6, GMR™ 1224 xHD2, 1226 xHD2, 2524 xHD2, 2526 xHD2, GMR™ 404, 406, GMR™ 424 xHD2, GMR™ 624 xHDS2,  GMR™ 626 xHD2 radars
• Navman - 8000 Series (8084/8120) 4' radars
• Nobeltec - 4kW / 6kW radars
• Raymarine - 5S / 9S / RA1048HD / RA1048SHD, 7S / 11S / RA1072HD / RA1072SHD, Cyclone 3', 4', 6', Magnum 4ft 4kW/12kW, Magnum 6ft 4kW/12kW radars

Features:

• Enhance the performance of your open array with the Universal Scanstrut 4° radar base wedge
• 4° Base Wedge for mounting under PowerTower®
• A tough, marine-grade, UV stable wedge
• Compatible with radomes from most radar manufacturers

Technical Specifications:

• Material - Marine Grade Polymer
• Dimensions (L x W ) - 9.69" x 9.69"
• Angle - 4°

In the Box:

• Wedge
• Base seal
• Instruction manual

*Sold as an Individual
