Quad Multi Viewer 4x1 Seamless HDMI Switch With HDMI Output Full HD 1080p (HD-401MR)
Quad Multi Viewer 4x1 Seamless HDMI Switch With HDMI Output Full HD 1080p (HD-401MR)
SKU:HD-401MR
Couldn't load pickup availability
Description :

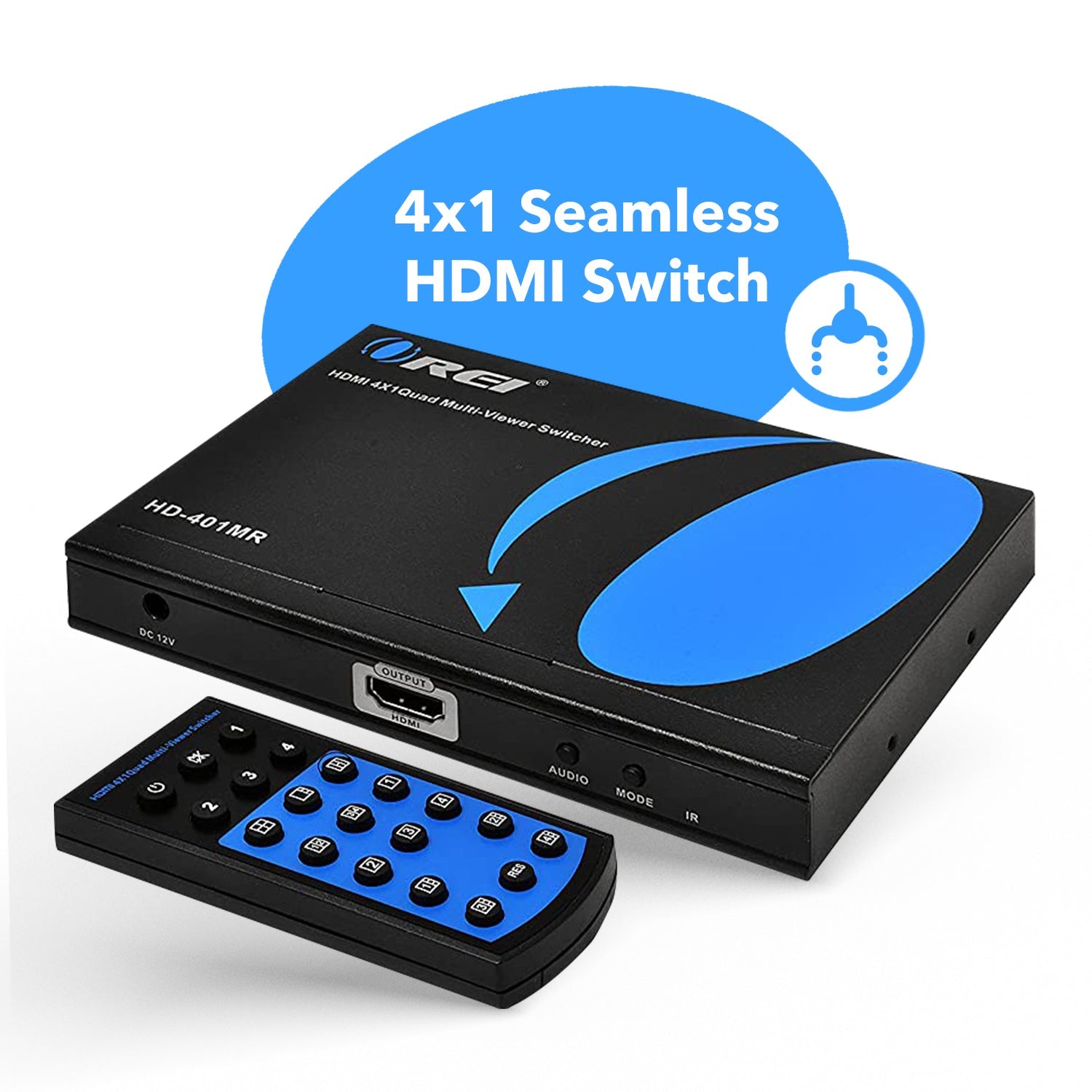

OREI HD-401MR 4x1 Multiviewer Switch
- Supports HDMI 1.4b
- Supports HDCP 1.4 and DVI 1.0 compliant
- Output resolution can be selected by panel buttons and remote control
- Multiple video resolution: 1080P@60Hz, 720p@60Hz, 480P@60Hz
- Input: AC100 - 240V 50/60Hz
- Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)

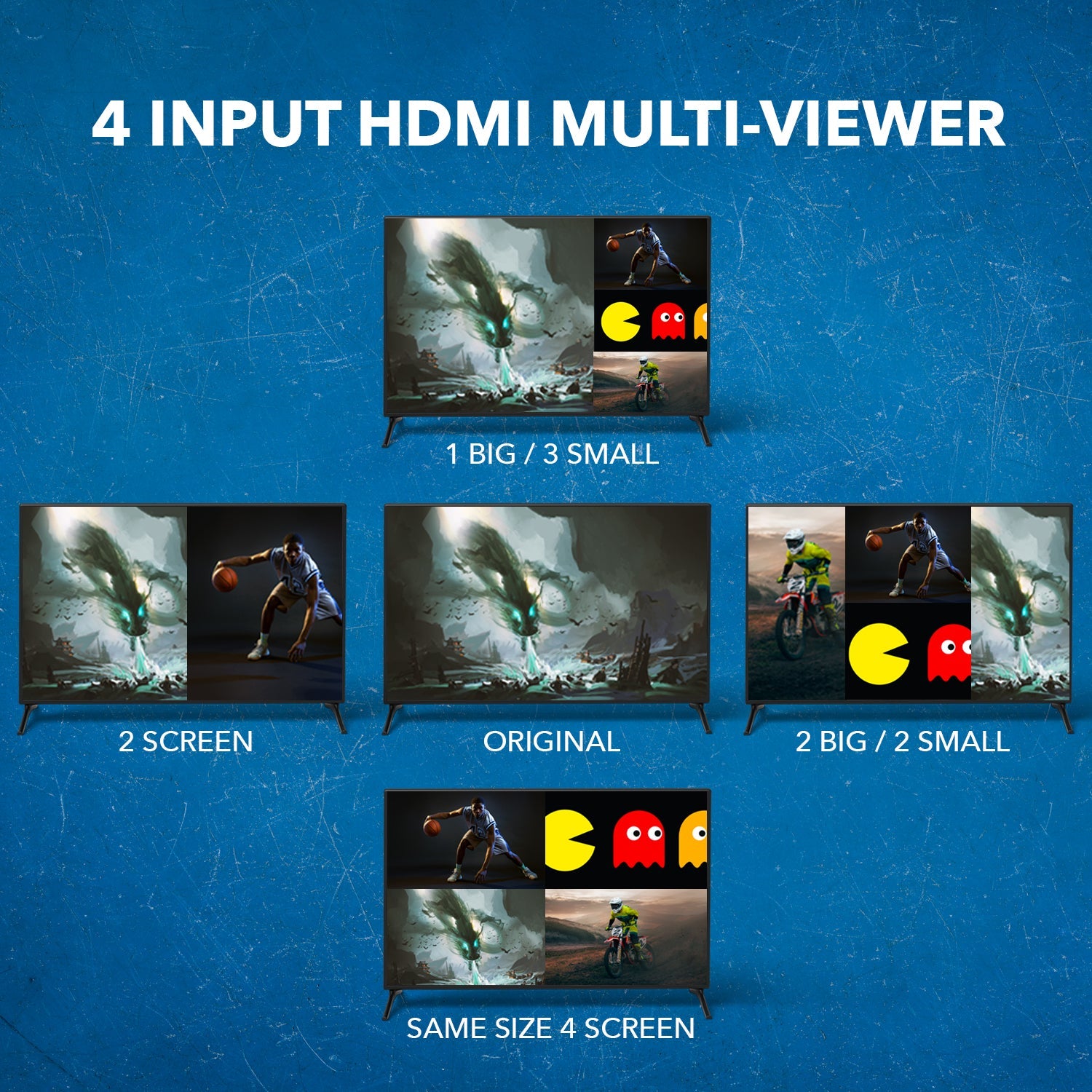

- Quad multi-viewer with five display modes supported
- This HDMI switcher designed with 4 Input ports and 1 output port, you can choose the HDMI signal source by the IR remote control and front panel buttons

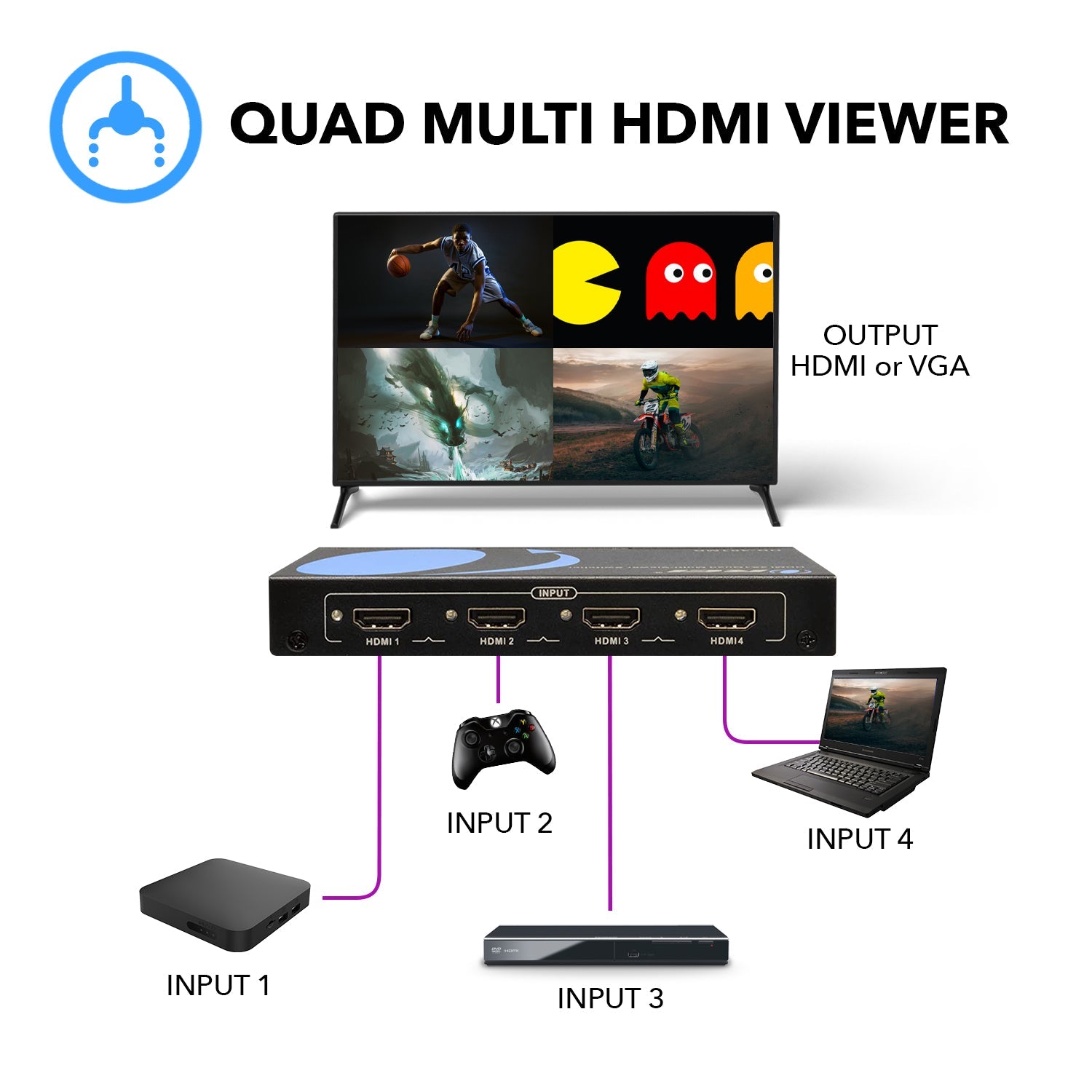

- 4x1 HDMI Switcher with Multi HDMI Viewer - Supports 4 HDMI input sources to a single HD TV or Display with quick switching about 32ms of lag
- Video Bandwidth: 6.75Gbps
- This HDMI matrix switch is compatible with gaming consoles such as PlayStation, Xbox One, Nintendo, Roku, DVD, blue ray, players Amazon fire TV, cable TV, Chromecast, and so many other HDMI devices

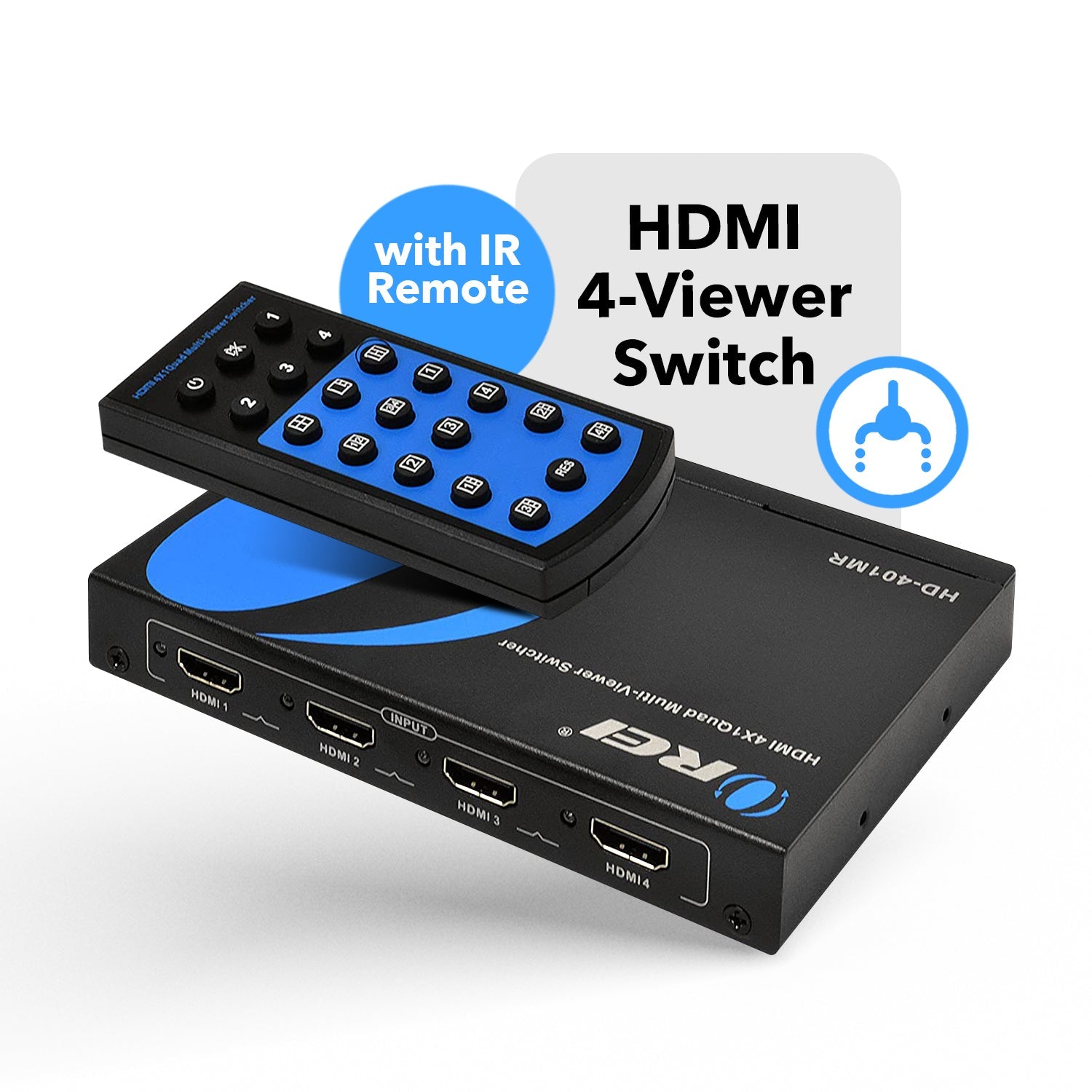

- Control via front panel buttons and the remote control
Few sample applications:

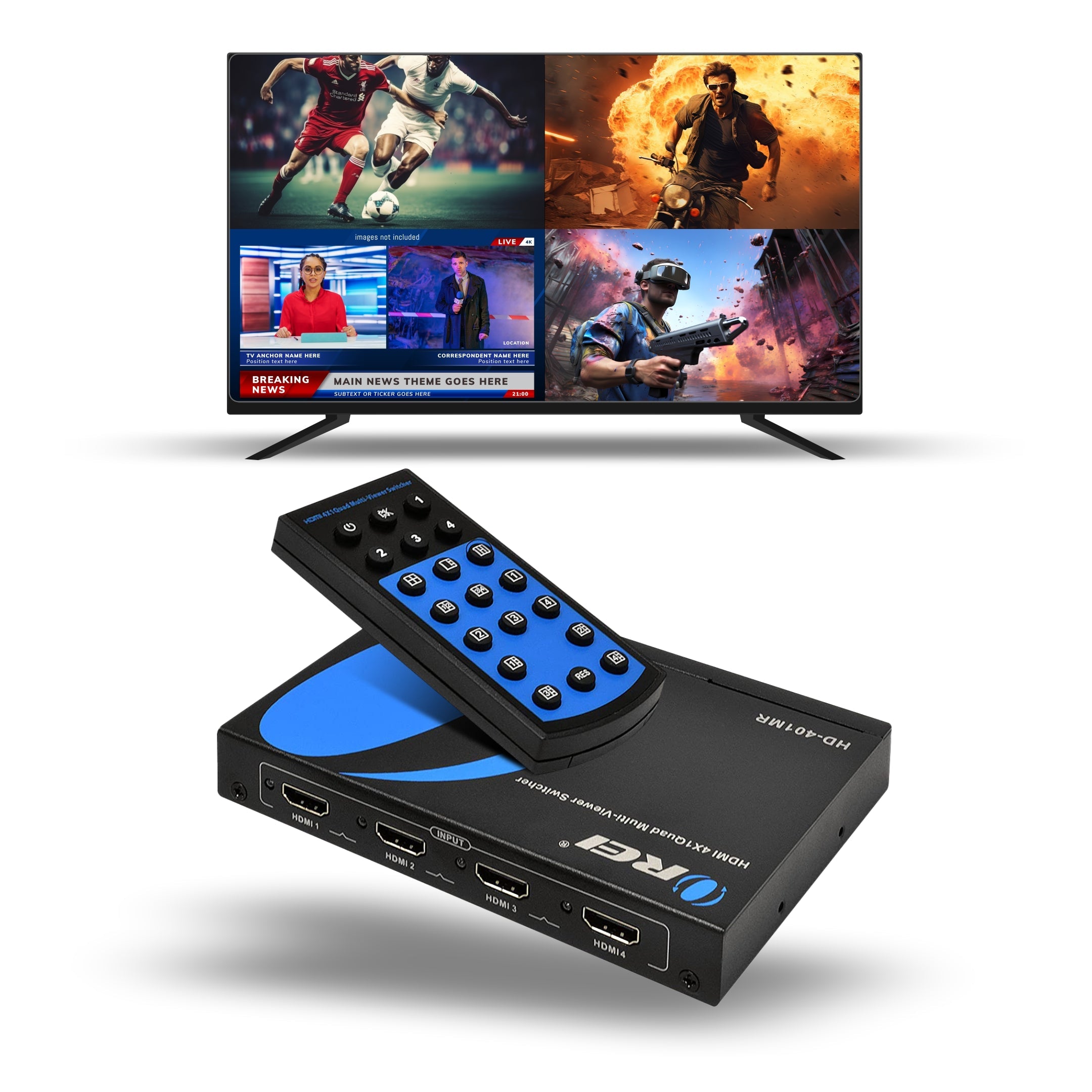

The OREI HD-401MR high performance 4x1 quad multi-viewer supports four high definition input contents be displayed on one screen simultaneously, and five multi-viewer display modes can be selected. The product can be controlled via the front panel button and remote control.
This HDMI switcher is compact, durable, easy to set up and use. The switch between sources is seamless and quick without lag. It supports up to full HD 1080p display along with 3D support. Ideal for multiviewer video conferencing systems, monitoring, live games, shopping mall, exhibition hall, stock market, display mall, education, surveillance etc.
[shortdes]
- 4 Inputs - 1 output HDMI Multiviewer switch
- Video resolution up to 1080p@60Hz
- Supports 5 display mode
- Compliance: HDMI 1.3 - HDCP 1.2
AUDIO AND VIDEO
| Inputs: | 4×HDMI Type A [19-pin female] |
| Output Ports: | 1×HDMI Type A [19-pin female] |
| Video Bandwidth: | 4.5Gbps |
| Video Resolution: | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Color Space: | RGB YCbCr4:4:4 |
| HDMI Audio Formats: | PCM |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.2 |
POWER
| Power Supply: | DC 12V/2A |
| Power Consumption: | <10W |
CONTROL
| CEC: | Pass through |
ENVIRONMENTAL
| Operating Temperature: | -20 - 40°C |
| Storage Temperature: | 0°C ~ 40°C |
| Relative Humidity: | <10W |
DIMENSIONS & WEIGHT
| Height: | 21.20 mm |
| Width: | 178.50 mm |
| Depth: | 104.74 mm |
| Weight: | 340g |
REGULATORY
| Safety and Emission | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × HD-401MR 4x1 HDMI Quad multiviewer |
| 1 × Remote Control |
| 1 × User Manual |
| 1 × Power Adapter |
Warranty
| 1 - Year Manufacturer's Warranty |
[tab1]
FAQs
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
Yes, the included power adapter does support 220V
You can turn off the OSD by pressing and holding the AUDIO button on the front side of the unit for 2 seconds
Unfortunately, the HD-401MR is not compatible with this type of screen. It will connect to a TV, monitor or a projector
Specifications :
General Information
| UPC | 854339007731 |
|---|
