Drive Bay: 16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s. The system is shipped without HDD
-
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
-
Hot-swappable: Yes
-
Gigabit Ethernet Port (RJ45): 1
-

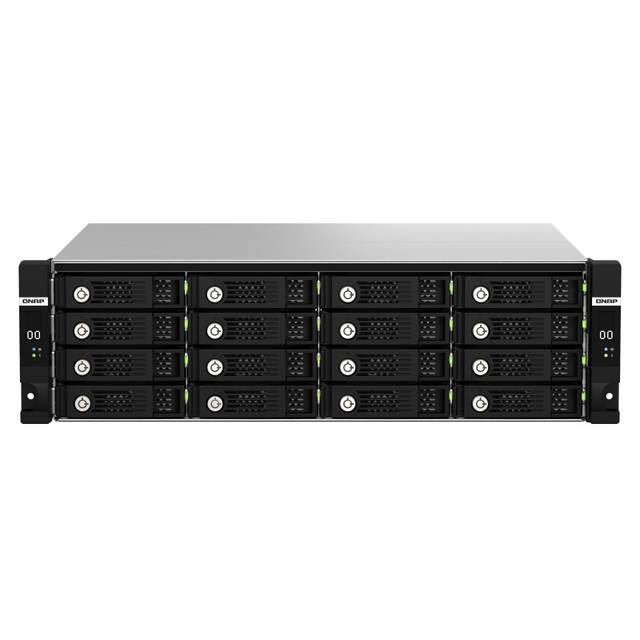

Form Factor: 3U Rackmount
-
Host Interface: 3 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller
-
LED Indicators: HDD 1-16, Status, Power, Fan, Temperature, SAS connector status
-
Buttons: Power, OLED
-
Max. number of HDDs/SSDs supported: 16
-
Hard Drive Type: 3.5" or 2.5" SAS12Gb/s 6Gb/s drives
-
Operating Temperature: 0 - 40 C (32F - 104F)
-
Storage Temperature: -20 - 70C (-4F - 158F)
-
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27C (80.6F)
-
Power Supply Unit: 550W(x2), 100-240V
-
Fan: 3 x 80mm, 12VDC
-
System Warning: Buzzer
-
Management: Managed via NAS QES OS and JBOD Manager for Windows
