Description

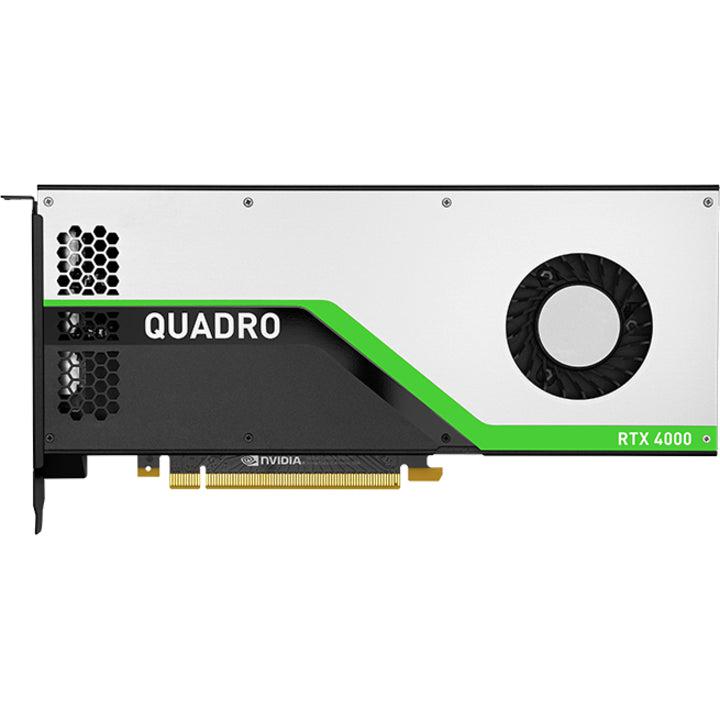

- Quadro RTX 4000
- 8GB GDDR6
- PCI Express 3.0 x16
INTRODUCING NVIDIA TURING QUADRO IN DESKTOP WORKSTATIONS
Designed, built and tested by NVIDIA, Quadro® desktop products are the #1 choice of millions of creative and technical users. Equipped with the world’s most powerful GPUs, large memory capacities, 8K display outputs, advanced features to drive real-time photorealistic rendering, AI-augmented workflows, VR environments and more, Quadro is built to accelerate a range of professional workflows.
Optimized, stable drivers, ISV certifications with over 100 professional applications and tools for IT management are just some of the benefits of Quadro.
.png)
RT CORES FOR REAL-TIME RAY TRACING
The Turing architecture is armed with dedicated ray-tracing processors called RT Cores that accelerate the computation of how light and sound travel in 3D environments at up to 10 Giga Rays per second. Turing accelerates real-time ray tracing by 25x over previous Pascal generation, and can be used for final frame rendering for film effects at more than 30x the speed of CPUs.
TENSOR CORES FOR AI ACCELERATION
Turing features new Tensor Cores, processors that accelerate deep learning training and inferencing, providing up to 500 trillion Tensor operations per second. This level of performance dramatically accelerates AI-enhanced features — such as denoising, resolution scaling and video re-timing —creating applications with powerful new capabilities.
NEW STREAMING MULTIPROCESSOR
The Turing architecture dramatically improves raster performance over the previous Pascal generation with an enhanced graphics pipeline and new programmable shading technologies. These technologies include variable-rate shading, texture-space shading, and multi-view rendering, which provide for more fluid interactivity with large models and scenes and improved VR experiences.
CUDA FOR SIMULATION
Turing-based GPUs feature a new streaming multiprocessor (SM) architecture that supports up to 16 trillion floating point operations in parallel with 16 trillion integer operations per second. Developers can take advantage of up to 4,608 CUDA cores with NVIDIA’s CUDA 10, FleX and PhysX SDKs to create complex simulations, such as particles or fluid dynamic for scientific visualization, virtual environments and special effects.
NVIDIA Quadro RTX 8000
CUDA Cores: 4608
NVIDIA RT Cores: 72
NVIDIA Tensor Cores: 576
RTX-OPS: 84T
Rays Cast: 10 Giga Rays/Sec
Peak Single Precision FP32 Performance: 16.3 TFLOPS
Peak Half Precision FP16 Performance: 32.6 TFLOPS
Peak INT8 Performance: 206.1 TOPS
Deep Learning TFLOPS: 130.5 Tensor TFLOPS
GPU Memory: 48 GB GDDR6 with ECC
Memory Bandwidth: 672 GB/Sec
System Interface: PCI Express 3.0 x16
Display Connectors: DisplayPort 1.4 (4) + VirtualLink
NVIDIA Quadro RTX 6000
CUDA Cores: 4608
NVIDIA RT Cores: 72
NVIDIA Tensor Cores: 576
RTX-OPS: 84T
Rays Cast: 10 Giga Rays/Sec
Peak Single Precision FP32 Performance: 16.3 TFLOPS
Peak Half Precision FP16 Performance: 32.6 TFLOPS
Peak INT8 Performance: 206.1 TOPS
Deep Learning TFLOPS: 130.5 Tensor TFLOPS
GPU Memory: 24 GB GDDR6 with ECC
Memory Bandwidth: 624 GB/Sec
System Interface: PCI Express 3.0 x16
Display Connectors: DisplayPort 1.4 (4) + VirtualLink
NVIDIA Quadro RTX 5000
CUDA Cores: 3072
NVIDIA RT Cores: 48
NVIDIA Tensor Cores: 384
RTX-OPS: 62T
Rays Cast: 8 Giga Rays/Sec
Peak Single Precision FP32 Performance: 11.2 TFLOPS
Peak Half Precision FP16 Performance: 22.3 TFLOPS
Peak INT8 Performance: 178.4 TOPS
Deep Learning TFLOPS: 89.2 TFLOPS
GPU Memory: 16 GB GDDR6 with ECC
Memory Bandwidth: 448 GB/Sec
System Interface: PCI Express 3.0 x16
Display Connectors: DP 1.4 (4) + DVI-D DL (1) + VirtualLink (1)
NVIDIA Quadro RTX 4000
CUDA Cores: 2304
NVIDIA RT Cores: 36
GPU Memory: 8GB GDDR6
RTX-OPS: 43 T
Rays Cast: 6.0 Giga Rays/Sec
Peak Single Precision FP32 Performance: 7.1 TFLOPS
Peak Half Precision FP16 Performance: 14.2 TFLOPS
Peak INT8 Performance: 28.5 TOPS
Deep Learning TFLOPS: 57.0 TFLOPS
Memory Bandwidth: 416 GB/Sec
System Interface: PCI Express 3.0 x16
Display Connectors: DP 1.4 (3) + DVI-D DL (1) + Stereo
General Information
| Manufacturer | PNY Technologies |
|---|---|
| Manufacturer Part Number | VCQRTX4000-PB |
| Manufacturer Website Address | http://www.pny.com |
| Brand Name | PNY |
| Product Name | NVIDIA Quadro RTX 4000 Professional Graphics Card |
| Product Type | Graphic Card |
| UPC | 0751492623375 |
| Chipset Manufacturer | NVIDIA |
|---|
| Height | 4.4" |
|---|
| Package Contents |
|
|---|---|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Limited Warranty | 3 Year |
|---|
