Description
- Quadro K2200
- 4GB GDDR5
- PCI Express 2.0 x16
Accelerate Your Creativity With NVIDIA® Quadro® – The World’s Most Powerful Workstation Graphics.
The NVIDIA Quadro K2200 delivers exceptional power-efficient 3D application performance. 4GB of GDDR5 GPU memory with fast bandwidth enables you to create large, complex models, and a flexible single-slot form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions up to 3840 x 2160 @ 60Hz with 30-bit color.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists, giving you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
FEATURES

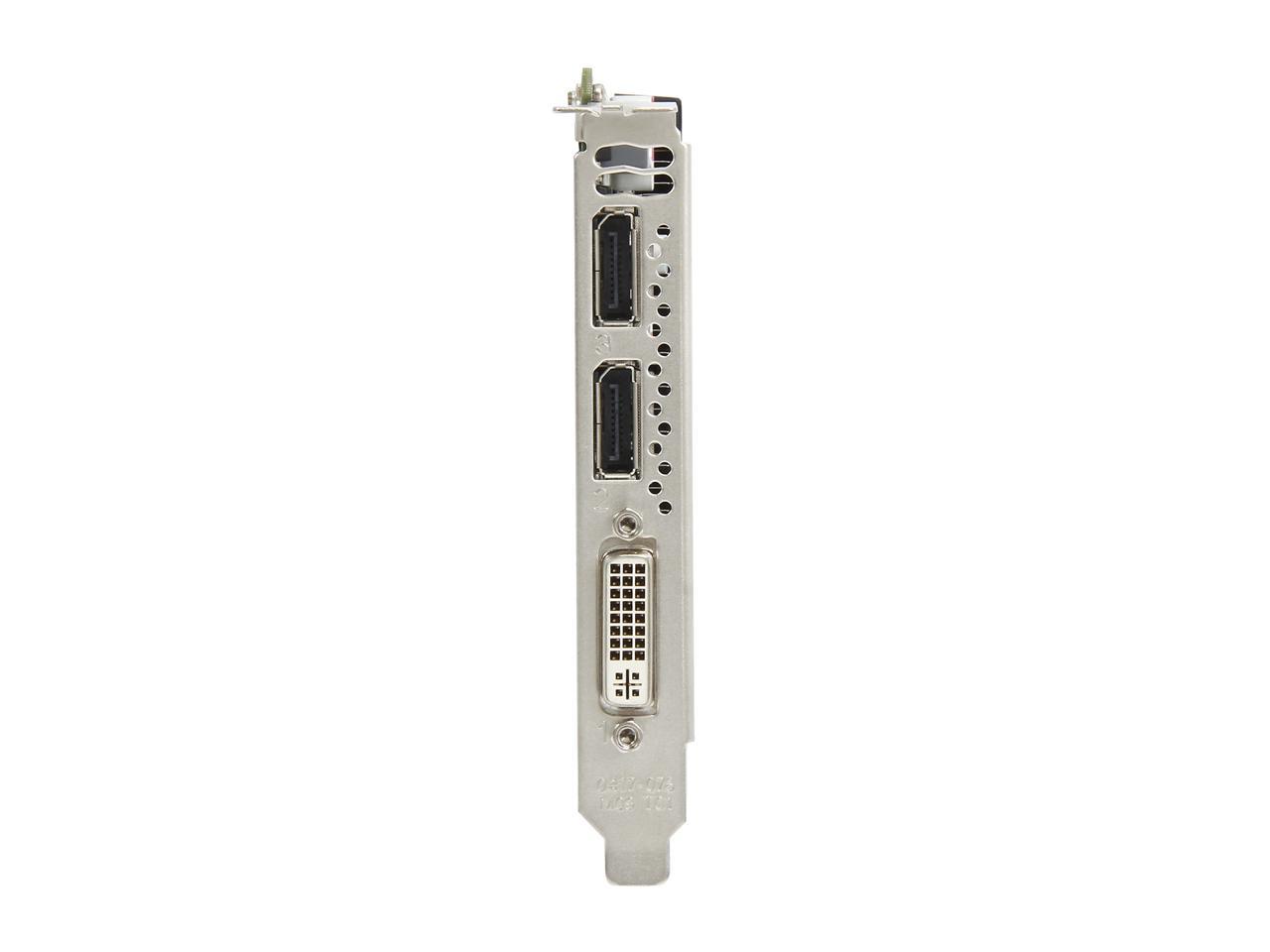

- Two DisplayPort 1.2 Connectors
- DisplayPort with Audio
- DVI-I Dual-Link Connector
- VGA Support
- NVIDIA nView™ Desktop Management Software Compatibility
- HDCP Support
- NVIDIA Mosaic
NVIDIA Quadro K2200 – Amazing 3D Application Performance and Capability
| GPU Memory | 4GB GDDR5 |
| Memory Interface | 128-bit |
| Memory Bandwidth | 80.0GBps |
| NVIDIA CUDA® Cores | 640 |
| System Interface | PCI Express 2.0 x16 |
| Max Power Consumption | 68W |
| Thermal Solution | Ultra-Quiet Active Fansink |
| Form Factor | 4.376 H x 7.97" L, Single Slot, Full Height |
| Display Connectors | DVI-I DL + 2x DP 1.2 |
| Max Simultaneous Displays | 3 direct, 4 DP 1.2 Multi-Stream |
| Max DP 1.2 Resolution | 3840 x 2160 at 60Hz |
| Max DVI-I DL Resolution | 2560 x 1600 at 60Hz |
| Max DVI-I SL Resolution | 1920 x 1200 at 60Hz |
| Max VGA Resolution | 2048 x 1536 at 85Hz |
| Graphics APIs | Shader Model 5.0, OpenGL 4.5, DirectX 11.2 |
| Compute APIs | CUDA, DirectCompute, OpenCL™ |
General Information
| Manufacturer | PNY Technologies |
|---|---|
| Manufacturer Part Number | VCQK2200-PB |
| Manufacturer Website Address | http://www.pny.com |
| Brand Name | PNY |
| Product Name | Quadro K2200 Graphic Card |
| Product Type | Graphic Card |
| UPC | 751492576039 |
| Chipset Manufacturer | NVIDIA |
|---|
| Height | 4.4" |
|---|
| Limited Warranty | 3 Year |
|---|
