Plugable HDMI 2.0 and USB-C 3 Port Switch with 2 HDMI and 1 USB-C Inputs and Single HDMI 2.0 Output
The Plugable HDMI Switch with USB-C (HDMI-SC3) allows you to connect and switch between up to three source devices (computers, gaming consoles, or set top media players) to a single HDMI display. Whether in the conference room, at home, or in the dorm, expand the connectivity of your display to support multiple inputs at the push of a button without swapping cables around. This HDMI Switch makes it easy to connect new systems with USB-C DisplayPort Alternate Mode output to your HDMI display.

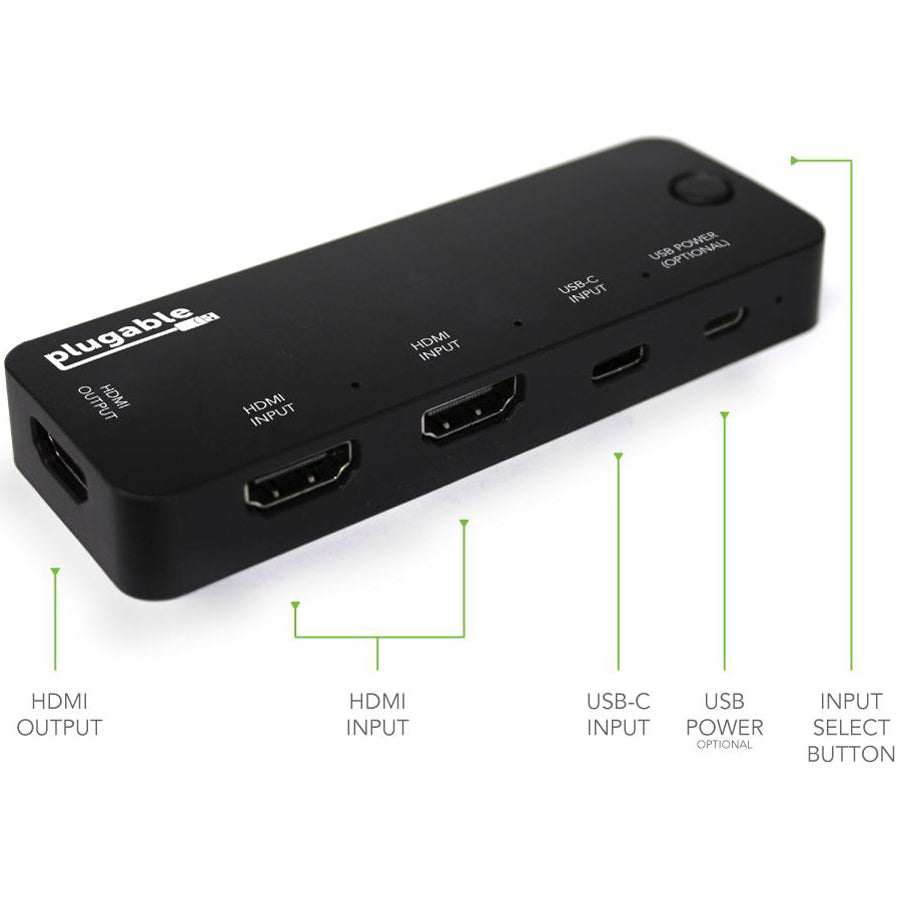

The HDMI switch cycles between the three inputs with a single button and an LED indicates the active input. Power for the switch is provided by the source device (we include an optional USB Micro-B power cable in case your source devices don't provide enough power).
Plugable's HDMI switch supports up to HDMI 2.0 and USB-C sources and can output at HDMI 2.0 resolution up to UHD 4K SDR (3840x2160 @ 60Hz Standard Dynamic Range). HDMI 2.0 functionality requires compatible HDMI cables, USB-C cable, and source devices USB-C and HDMI cables are not included. See additional USB-C and HDMI compatibility details below.
Compatibility
Two HDMI inputs support plug and play functionality with Windows, macOS, Linux, game consoles, and most media players.
Single USB-C input requires a computer, tablet, or phone which can output video over the USB-C or Thunderbolt 3 port (known as "DisplayPort Alternate Mode" or "Alt Mode" output). Alt Mode video output over USB-C must be built-in by your laptop, tablet, or phone manufacturer.
Resolution and refresh rate are dependent on source device, output display, and cable specifications. HDMI switch does not upscale content; the output will be limited to the capability of the source device, up to HDMI 2.0 capability.
Audio switching is supported on HDMI capable TVs and monitors with built-in speakers.
Incompatible Devices
Many computers and phones with USB-C ports do not support video output from this port. Some system manufacturers document this functionality while others do not. Plugable can help with USB-C compatibility questions prior to purchase.
USB-C charging cables provided with most Apple computers and tablets do not support video transfer and are not compatible.
ASMedia USB 3.1 controllers do not support USB-C video output.
Samsung USB-C Phones only support mirrored display output over USB-C.
HDMI ARC is not supported. DTS/DD bitstreaming is not supported.
May not be compatible with some HDMI receivers.
High Dynamic Range (HDR) is not supported with this switch. HDR requires HDMI 2.0b specification, connected 4K HDR displays may have reduced refresh rate, limited HDR capabilities, or graphics compression.
HDMI 2.0, 4K TVs, and HDMI Cables
When utilizing HDMI 2.0's highest resolution and refresh rate (3840x2160 @ 60Hz), twice the data is being transmitted as the maximum allowed by the previous HDMI 1.4 specification.
As a result, it is critical that an HDMI 2.0-compliant cable capable of providing the increased bandwidth be used for 4K 60Hz functionality. HDMI 1.x cables will likely result in a blank screen, digital noise/artifacts, or display drop-offs.
If using an HDMI 2.0 4K TV, it is strongly recommended to update the firmware/software of the TV for the best compatibility, performance, and stability.
4K UHD Televisions with HDR may be limited to 30Hz refresh rate.
More from the Manufacturer
- 4K SWITCH-Connect a single HDMI display, up to 4K resolution (3840x2160 at 60Hz Standard Dynamic Range), to up to three video source devices and cycle between the inputs with the press of a button
- USB-C INPUT-Native support for USB-C DisplayPort Alternate Mode, compatible with many new computers including Apple MacBook Pro/Air systems with Thunderbolt 3, ChromeBooks, and a wide range of Windows Laptops
- HDMI Inputs-Connect up to two HDMI video sources to the switch, including desktop computers, laptops, game consoles, and set top media players to easily share a single display between multiple sources

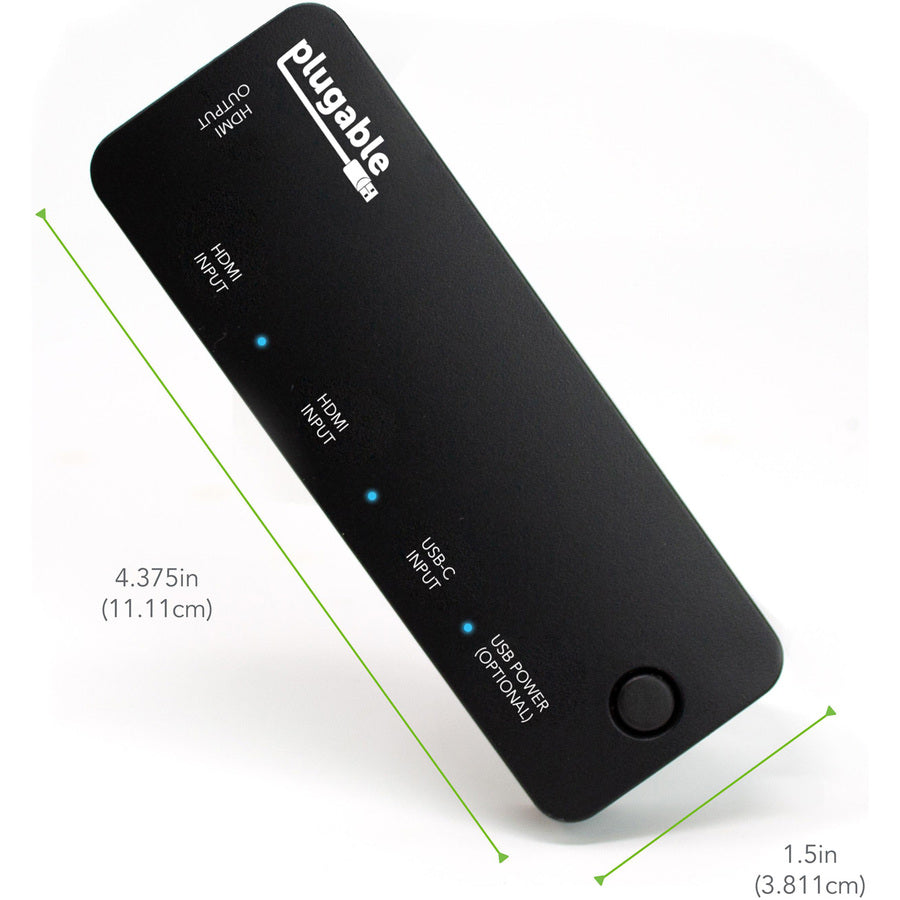

- COMPACT AND PORTABLE-Saves space on the desktop in the home, office or dorm room. Easily packs for travel to conventions, conferences, and presentations
- 2 YEAR WARRANTY-We love our Plugable products, and hope you will too. All of our products are backed with a 2-year limited parts and labor warranty as well as Seattle-based email support
Product Type: Audio/Video Switchbox
Country Of Origin: Taiwan
Brand Name: Plugable
Manufacturer: Plugable Technologies
Product Model: HDMI-SC3
Product Name: Plugable HDMI Switch with USB-C
Manufacturer Part Number: HDMI-SC3
Manufacturer Website Address: http://www.plugable.com

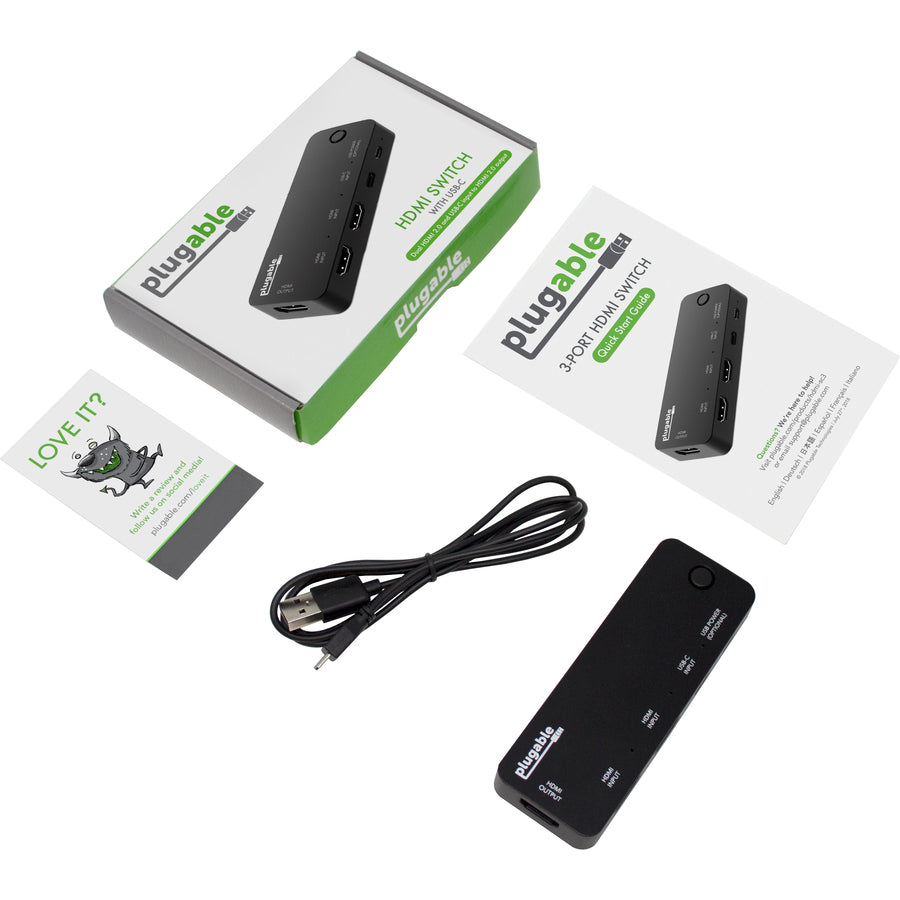

Package Contents:
- Plugable HDMI Switch with USB-C
- USB-A to USB Micro-B power cable
- Quick Start Guide
Limited Warranty: 2 Year
