Description :

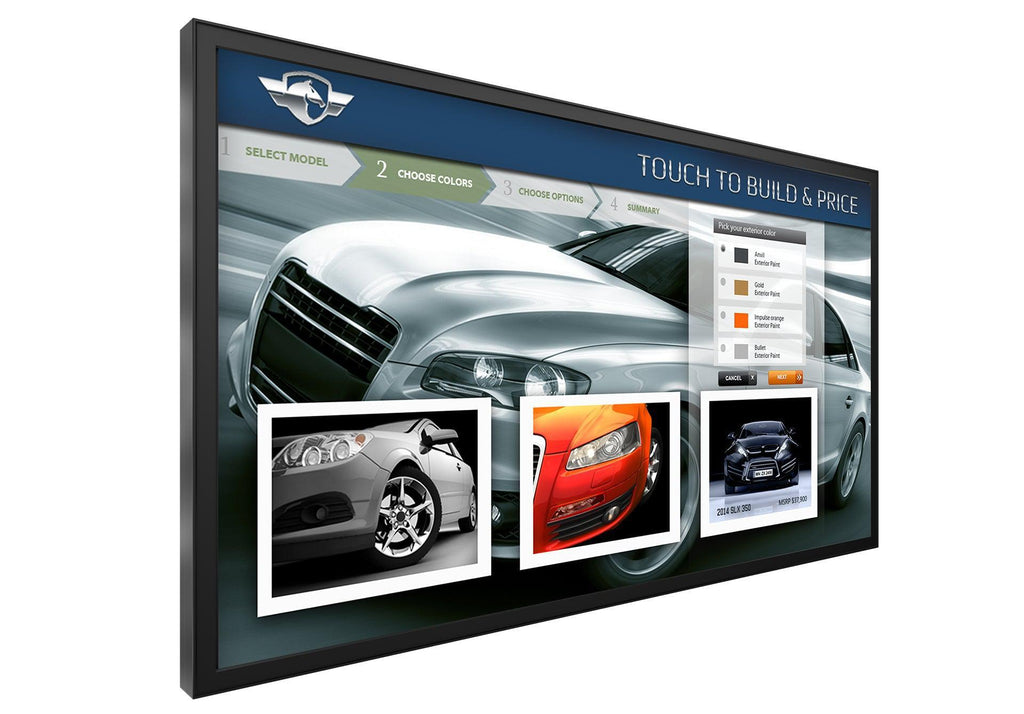

75", 3840 x 2160, 16:9, 6 ms, 120 Hz, Edge-lit LED LCD, IR 32 point touch, DisplayPort 1.2, 2x HDMI 2.0 (HDCP 2.2), 2x HDMI 1.4, OPS, 2x OPS USB 2.0, OPS USB 3.0,Planar Systems UltraRes UR7551-MX-Touch. Display diagonal: 190.5 cm (75"), Display brightness: 500 cd/m², HD type: 4K Ultra HD. Product colour: Black, Glass thickness: 2 mm. Touch technology: Multi-touch, Touchscreen technology: Infrared, RMS rated power: 20 W. Panel mounting interface: 400 x 400 mm, Placement supported: Horizontal/Vertical. Power supply type: AC, Power consumption (typical): 200 W, Power consumption (standby): 1.2 W
Planar® UltraRes™ Touch combines a 75", 86" or 98" multi-touch experience with stunning 4K image clarity. It offers a best-in-class solution for professionals who seek to collaborate or annotate using a large viewing area, the highest image resolution, and enterprise-level features. It is also ideal for public display applications such as way-finding, product catalogs, and any interactive digital signage designed to promote customer engagement. Planar UltraRes Touch offers 32 points of multi-touch, multi-user technology, making it easy for multiple users to collaborate and interact at the same time.
A Multi-Touch Experience with Four Times the Resolution
4K Accuracy
With a native 4K resolution of 3840 x 2160, Planar UltraRes Touch displays provide four times the resolution of a Full HD display for amazing clarity. Touch brings viewers closer to the display and Planar UltraRes Touch delivers razor-sharp clarity even at close viewing distances.
Interactive Annotation
For annotation and whiteboarding needs, Planar® TouchMark™ is the premier collaboration solution. This easy-to-use software provides the essential toolset for collaborating on-screen in meeting rooms and classrooms. A single-user license of Planar TouchMark is included with all Planar UltraRes Touch LCD Displays. Additional licenses are available for purchase at www.planaronline.com.
ERO For Enhanced Durability and Clarity
Planar UltraRes Touch displays incorporate Planar® ERO™ (Extended Ruggedness and Optics™) technology to provide superior durability, optical performance, and touch accuracy for applications such as way-finding, product catalog browsing, video selection, or any interactive application designed to engage customers.
Integrated Design
With touch technology designed and built into the display, Planar UltraRes Touch is a fully integrated solution, delivering an elegant design and more accurate multi-touch experience. These displays offer a precise 32-point touch solution without the hassle, design, and performance disadvantages of a bulky overlay.
Breakthrough Power Management
Planar UltraRes Touch displays come standard with power redundancy, ensuring continuous operation. With superior thermal control, Planar UltraRes Series displays operate without fans, providing whisper quiet operation and reduced points of failure.
Innovative Mounting System
Planar UltraRes Series displays feature thePlanar® Profile™ Mounting System for an extremely slim profile when wall-mounted and provides a lockable, front-service access mode providing ease of service without removing the display from the wall.
Specifications :
General Information
Manufacturer | Leyard |
---|---|
Manufacturer Part Number | 997-8452-00 |
Manufacturer Website Address | http://www.planar.com |
Brand Name | Planar |
Product Line | UltraRes |
Product Model | UR7551-MX-ERO-T |
Product Name | UltraRes UR7551-MX-Touch 4K Interactive LCD Display |
Product Type | Digital Signage Display |
UPC | 810689003649 |
Screen Size | 75" |
---|---|
Display Screen Type | LCD |
Touchscreen | Yes |
HDMI | Yes |
---|
Height | 39.5" |
---|---|
Width | 67.9" |
Depth | 3.9" |
Weight (Approximate) | 207 lb |
Environmentally Friendly | Yes |
---|
Limited Warranty | 3 Year |
---|
