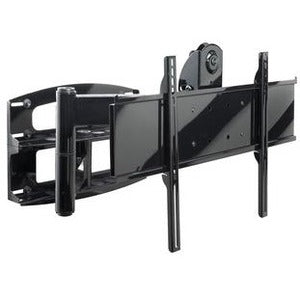

Peerless HG Series Articulating Wall Arm with Vertical Adjustment
The PLA60 offers a single solution for displays up to 95" in a wide range of installations including lobbies, hotel rooms, boardrooms, public displays or home theaters. Its all-steel construction enables it to hold screens up to 175lb, while its self-lubricating bushings enable the arms to smoothly articulate and position your display for optimal viewing. Combined with adjustable tilt and pivot capabilities, the PLA60 is the only wall arm you need.
- Three pivot points with up to 180° swivel for versatile display positioning
- Arm extends up to 32.37" (822mm) from wall
- +10/-5° of tilt
- ±7° of roll for post installation display leveling
- Universal models adapt to displays with mounting hole patterns up to 730 x 433mm(28.75"W x 17.05"H)
- ±1" (24mm) vertical adjustment located within reach behind display with PLAV60 models
- Includes mesh cord sheath and cable ties to neatly manage cables
- Five horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement
Product Type: Mounting Arm
Product Color: Black
Product Material: Steel
Country Of Origin: United States
Product Series: PLA
Brand Name: Peerless-AV
Compatibility:
37"- 60" Plasma and LCD Screens
Manufacturer: Peerless Industries, Inc
Product Model: PLAV60-UNLP-GB
Product Name: PLA Series Articulating Wall Arm For 37" to 95" Displays
Manufacturer Part Number: PLAV60-UNLP-GB
Manufacturer Website Address: http://www.peerless-av.com
Packaged Quantity: 1
Package Contents:
- PLA Series Articulating Wall Arm For 37" to 95" Displays*
- 1 x Wall plate
- 1 x Tilt-roll assembly
- 1 x Arm assembly
- 1 x Wall support arm axle
- 3 x Vinyl trim
- 8 x (M10 x 1.5 x 15mm) screw bolt
- 1 x (.505 x .75 x .062") Nylon washer
- 1 x Tilt adjustment knob
- 1 x Carriage bolt (3/8"-16 x 3.25")
- 2 x (1.525 x 2 x .062") Delrin washer
- 1 x (#8-32 x .375") Socket cap screw
- 8 x Plastic finishing cap
- 1 x Holding pin
- 1 x Retainer plug
- 8 x (5/16 x 3") Wood screw
- 8 x (.250 x 1 x .068") Washer
- 1 x 9/64" Allen wrench
- 4 x Cable management clips
- 4 x Cable tie
- 1 x 36" Polyester mesh sleeve
- 1 x 6 mm Allen wrench
- 1 x 10 mm Allen wrench
- 8 x Anchor
- 1 x Adapter bracket
- 2 x Shallow adapter bracket
- 2 x Deep adapter bracket
- 1 x Allen wrench
Limited Warranty: 5 Year
Weight (Approximate): 44.70 lb
