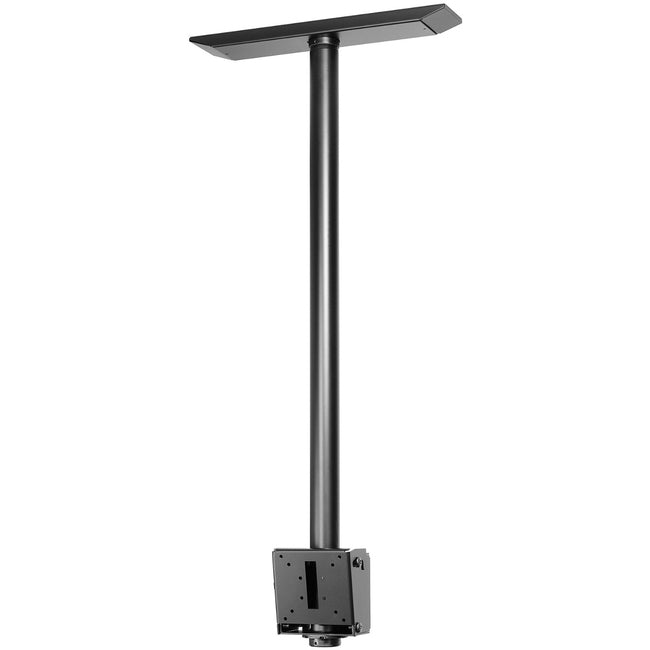

Peerless Flat Panel Straight Column Ceiling Mount
The SmartMount® PLCM-1(CP) Ceiling Mounts utilize 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM-1 kit combines the PLCM-2 tilt box and an EXT103 fixed length 1.5" NPT column, to deliver a drop of 36" , -5°/+2° of adjustable tilt and 360° of swivel. When combined with a Peerless-AV® ceiling plate, and a universal or fixed display adaptor plate, it creates the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.
- Landscape or Portrait orientation
- -5° to 20° adjustable tilt and 360 degrees swivel
- Peerless-AV EXT103 Aluminum Extension Column included, providing a 36" drop
- Simple hook-on display installation
- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- VESA 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware not included)
- Additional display mounting adaptor plates available (sold separately)
Product Type: Ceiling Mount
Vesa Mount Standard: 100 x 100
Product Color: Black
Product Material: Steel
Country Of Origin: United States
Brand Name: Peerless-AV
Manufacturer: Peerless Industries, Inc
Product Name: SmartMount Ceiling Mounts with Ceiling Plate & Tilt Box for up to 90'' Displays
Product Line: SmartMount
Manufacturer Part Number: PLCM-1CP
Manufacturer Website Address: http://www.peerless-av.com
Packaged Quantity: 1
Package Contents: Flat Panel Straight Column Ceiling Mount Includes:
- 1 x ACC 109 Accessories Included
- 1 x Ceiling arm box
- 1 x Tilt bracket
- 1 x Extension column (33")
- 1 x Retaining collar
- 5 x Penta-pin screw (M5 x .8 x 10 mm)
- 1 x Fiber washer (2.875 OD x 2.125 ID x .062 H)
- 8 x Penta-pin screw (M10 x 1.5 x 15 mm)
- 1 x Penta-pin tool (M10 x 2")
- 1 x Penta-pin tool (M5 x 1")
- 4 x Phillips Type F screw (M5 x .8 x 8 mm)
- 1 x Ceiling plate
- 2 x Ceiling Plate end cap
- 4 x Hex head phillips wood screw (#14 x 2.5" )
Limited Warranty: 5 Year
Weight (Approximate): 17.25 lb
