Mfr Part Number: GI-X4 CORONA B
-
Features:

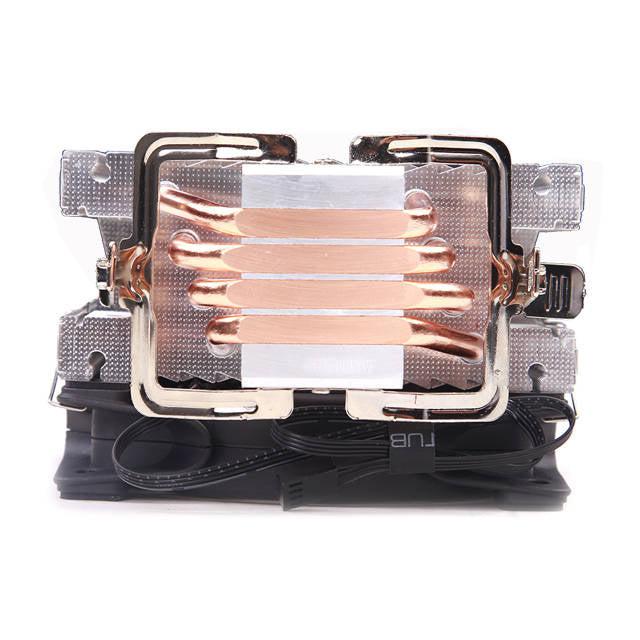

- 4x 6mm U-type Copper powder heat pipes for fast thermal conduction
- 45x38mm HDT bottom of the heat sink is in closer contact with the surface of the CPU for better heat dissipation
- Including INTEL and AMD platform bracket accessories, installation instructions, a thermal grease and a wrench
- Supporting Intel LGA775/115X and AMD/AM3/AM4
- Warranty AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
-
CPU Compatibility:
-
Intel: LGA1150/ 1151/ 1155/ 1156/ 775
-
AMD: AM4/ FM2+/ FM2/ FM1/ AM3+/ AM3/ AM2+/ AM2
-
TDP: 145W
-
Heatsink Material: Aluminum
-
Heat Base Material: 45x38mm HDT(Heat pipes Direct Touch)
-
Heat Pipes: 4x6mm Copper power heat pipes 4x U type
-
Surface Treatment: Anti-oxidation Protective Layer
-
RGB Version: N/A
- Included Fans: 1pcs
-
Fan Speed: 1000~180010%RPM
-
Max. Air Flow: 65CFM
-
Max. Static Pressure: 2.15mmH20
-
Noise: 8~26.5dB(A)
-
Rated Voltage: 12VDC
-
Operating Voltage: 8~13.2VDC
-
Started Voltage: 7.5VDC
-
Rated Current: 0.22~0.35A(Fan Moto)
-
Power Input: 4.5W
-
Bearing Type: Hydraulic Bearing
-
Fan Dimension: 120.0 x 120.0x 25.0 mm
-
Overall Dimension (WxLxH): 84.0 x 124.5 x 148.0 mm
-
Weight/Loading: 520.0 g
