Description :

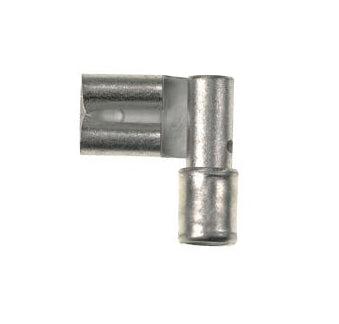

Loose Piece Disconnect, female, MetallicPanduit DR14-250-C. Product colour: Metallic, Material: Brass. Quantity per pack: 100 pc(s)
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.25 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 100.
Specifications :
General Information
Manufacturer | PANDUIT CORP |
---|---|
Manufacturer Part Number | DR14-250-C |
Manufacturer Website Address | http://www.panduit.com |
Brand Name | Panduit |
Product Name | Terminal Connector |
Product Type | Terminal Connector |
UPC | 0074983827411 |
Product Color | Metallic |
---|---|
Width | 0.3" |
Weight (Approximate) | 14 lb |
Features | Right-angled Connector |
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 1 Year |
---|
