Description :

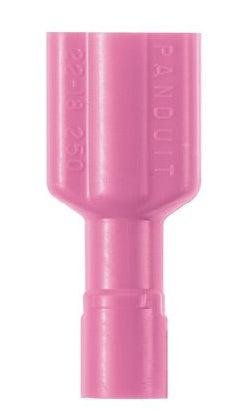

Loose Piece Disconnect, female, redPanduit DPF18-110FIB-C. Product colour: Red, Material: Brass, Nylon. Quantity per pack: 100 pc(s)
The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.71" (18 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Specifications :
General Information
Manufacturer | PANDUIT CORP |
---|---|
Manufacturer Part Number | DPF18-110FIB-C |
Manufacturer Website Address | http://www.panduit.com |
Brand Name | Panduit |
Product Line | DiscoGrip |
Product Name | DiscoGrip Terminal Connector |
Product Type | Terminal Connector |
UPC | 0007498320368 |
Product Color | Red |
---|---|
Width | 0.2" |
Features | Strain Relief |
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 1 Year |
---|
