Description :

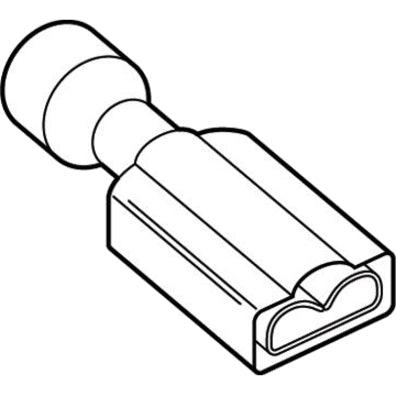

Loose Piece Disconnect, female, redPanduit DNF18250FIBX-L. Product colour: Red, Material: Brass, Nylon. Quantity per pack: 50 pc(s)
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon standard receptacle housing with an expanded wire entry area for wires with large outside diameters. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.93" (23.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in bottles of 50.
Specifications :
General Information
Manufacturer | PANDUIT CORP |
---|---|
Manufacturer Part Number | DNF18250FIBX-L |
Manufacturer Website Address | http://www.panduit.com |
Brand Name | Panduit |
Product Name | Terminal Connector |
Product Type | Terminal Connector |
UPC | 0074983119929 |
Product Color | Red |
---|---|
Width | 0.4" |
Features | Flame Retardant |
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 1 Year |
---|
