MSI

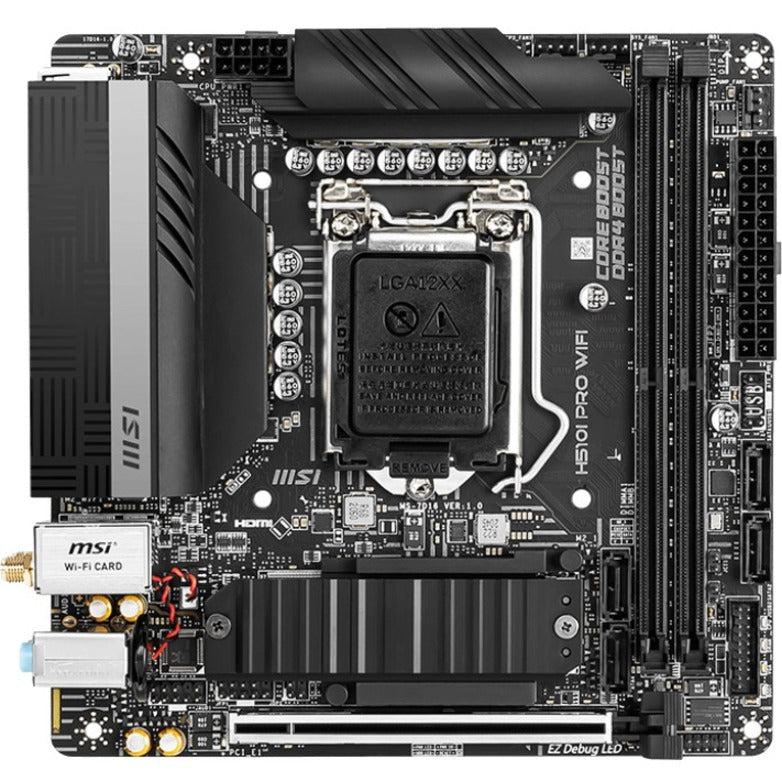

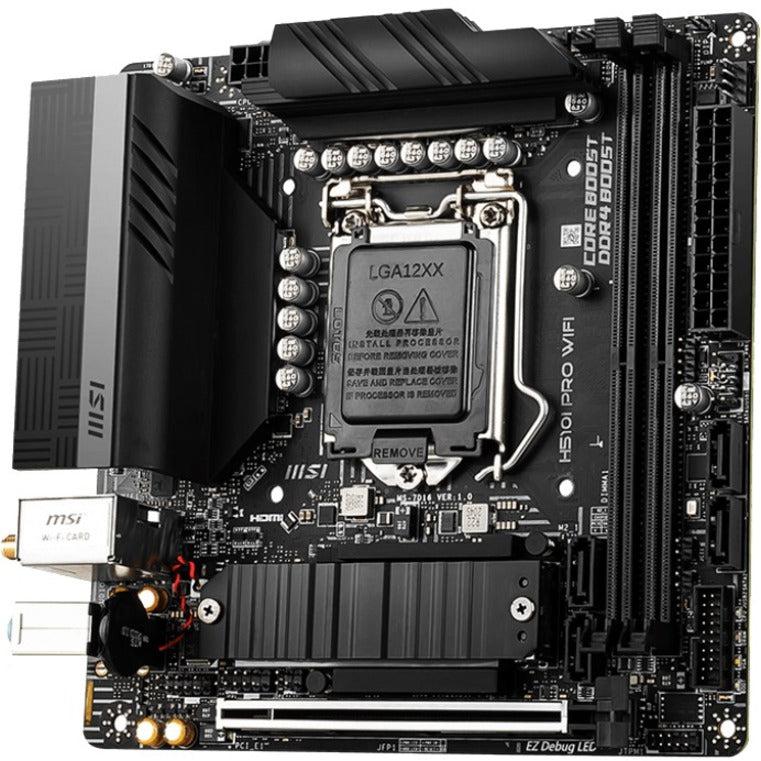

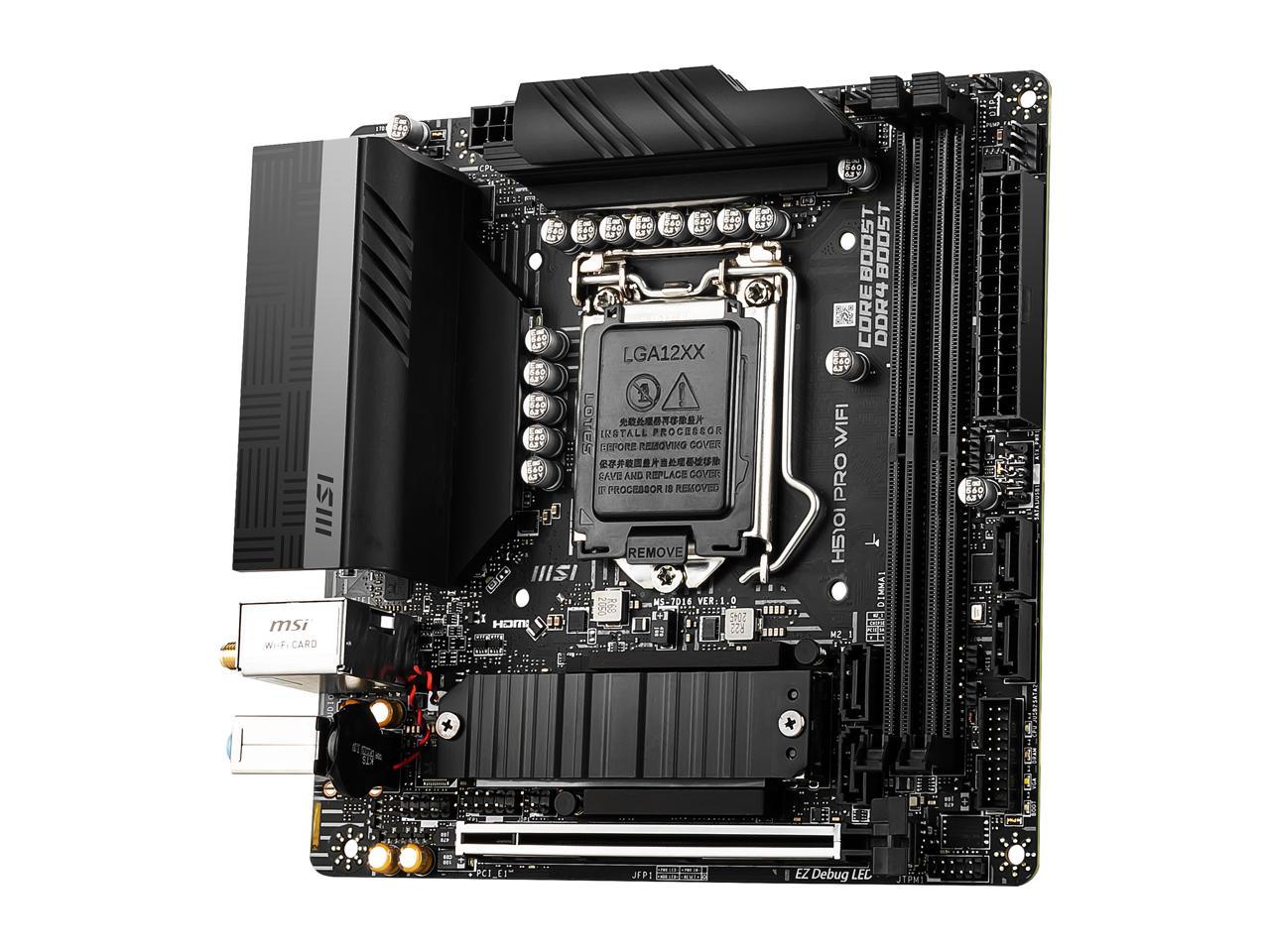

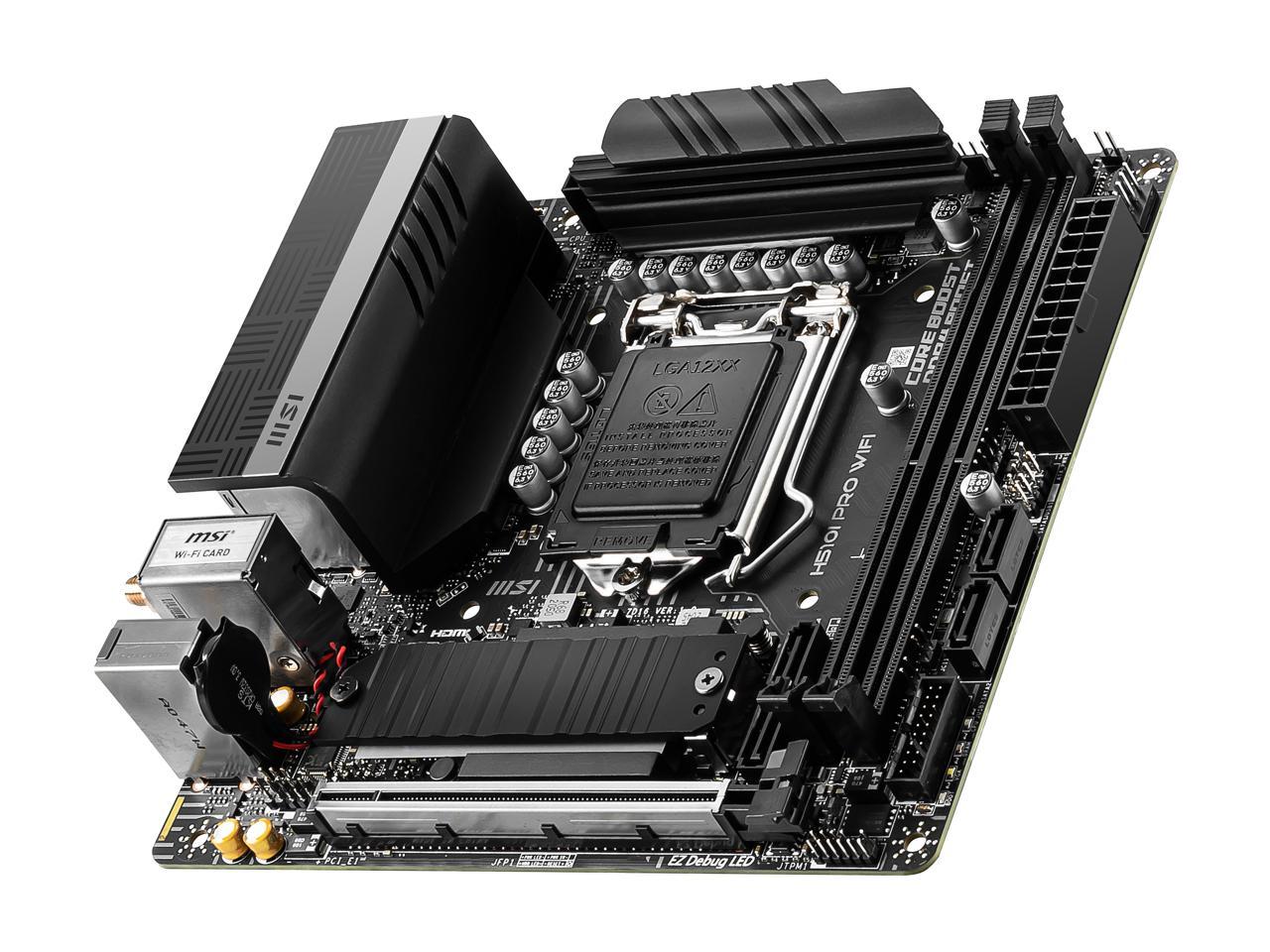

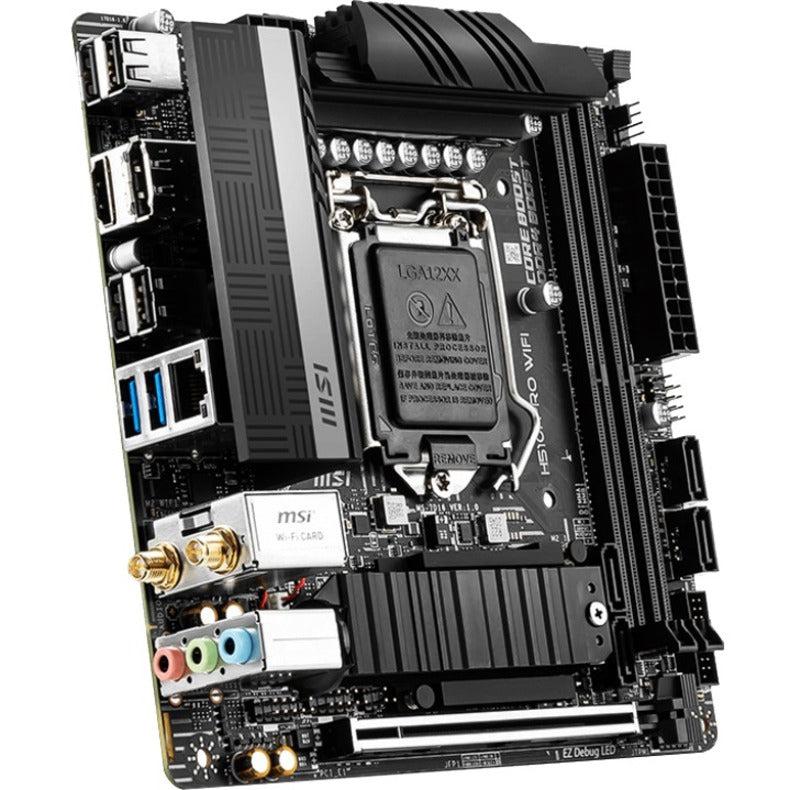

Msi H510I Pro Wifi Socket Lga1200/ Intel H510/ Ddr4/ Sata3&Usb3.2/ M.2/ Wifi&Bluetooth/ Mini-Itx Motherboard

Name: Msi H510I Pro Wifi Socket Lga1200/ Intel H510/ Ddr4/ Sata3&Usb3.2/ M.2/ Wifi&Bluetooth/ Mini-Itx Motherboard
Brand: MSI
SKU: H510IPWIFI
Price: 179.62 USD
Availability: InStock

Msi H510I Pro Wifi Socket Lga1200/ Intel H510/ Ddr4/ Sata3&Usb3.2/ M.2/ Wifi&Bluetooth/ Mini-Itx Motherboard

SKU:H510IPWIFI

$179.62

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

Description

Specifications

Reviews, Que. & Ans.

Description :

Intel H510
Supports 11th / 10th Gen Intel Core / Pentium Gold / Celeron Processors
1R DDR4 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU (by JEDEC & POR))
1R DDR4 2933 / 2666 / 2133 (10th Gen Intel CPU (by JEDEC & POR))
Max frequency:
1DPC 1R Max speed up to 3200+
1DPC 2R Max speed up to 3200+

Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

LEARN MORE ABOUT THE MSI H510I PRO WIFI

Model
Brand	MSI
Model	H510I PRO WIFI

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core / Pentium Gold / Celeron Processors * Please go to intel.com for compatibility information.

Chipsets
Chipset	Intel H510

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	2×288pin
Memory Standard	1R DDR4 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU (by JEDEC & POR)) * 1R DDR4 2933 / 2666 / 2133 (10th Gen Intel CPU (by JEDEC & POR)) * Max frequency: 1DPC 1R Max speed up to 3200+ 1DPC 2R Max speed up to 3200+ * Please refer www.msi.com (more information on compatible memory.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16 * Actual support may vary by CPU.

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 slot (from H510 chipset): - Support up to PCIe 3.0 - Supports SATA 6Gb/s - Supports 2280 storage devices

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8125B
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel Wi-Fi 6 AX201 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.1

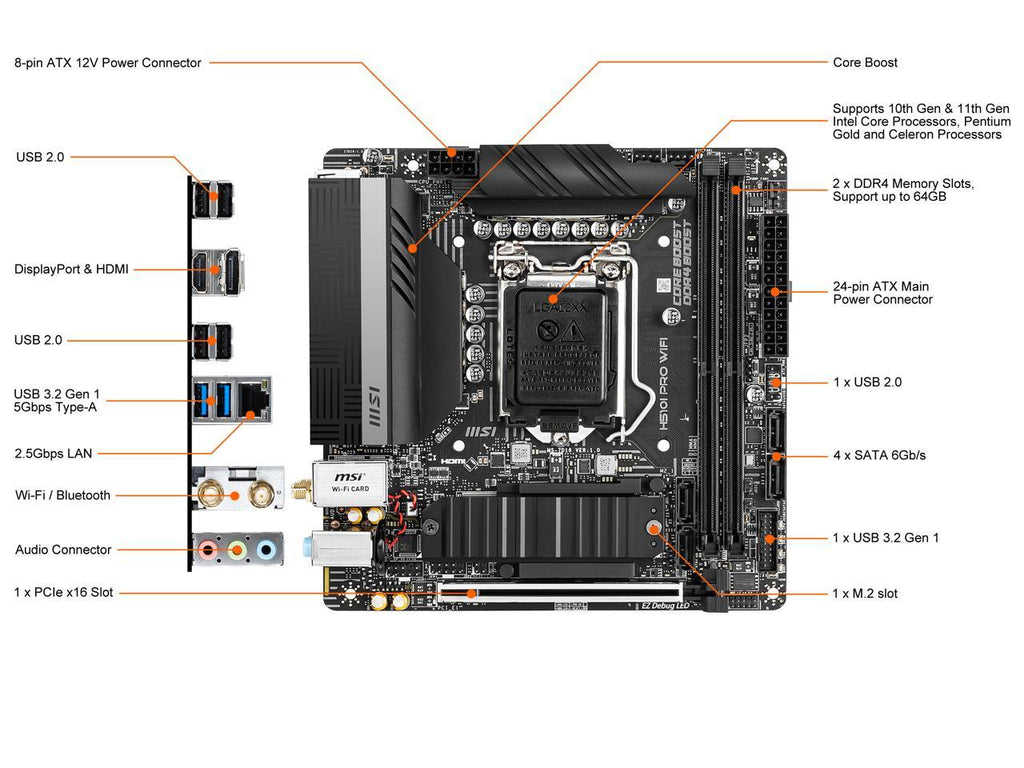

Rear Panel Ports

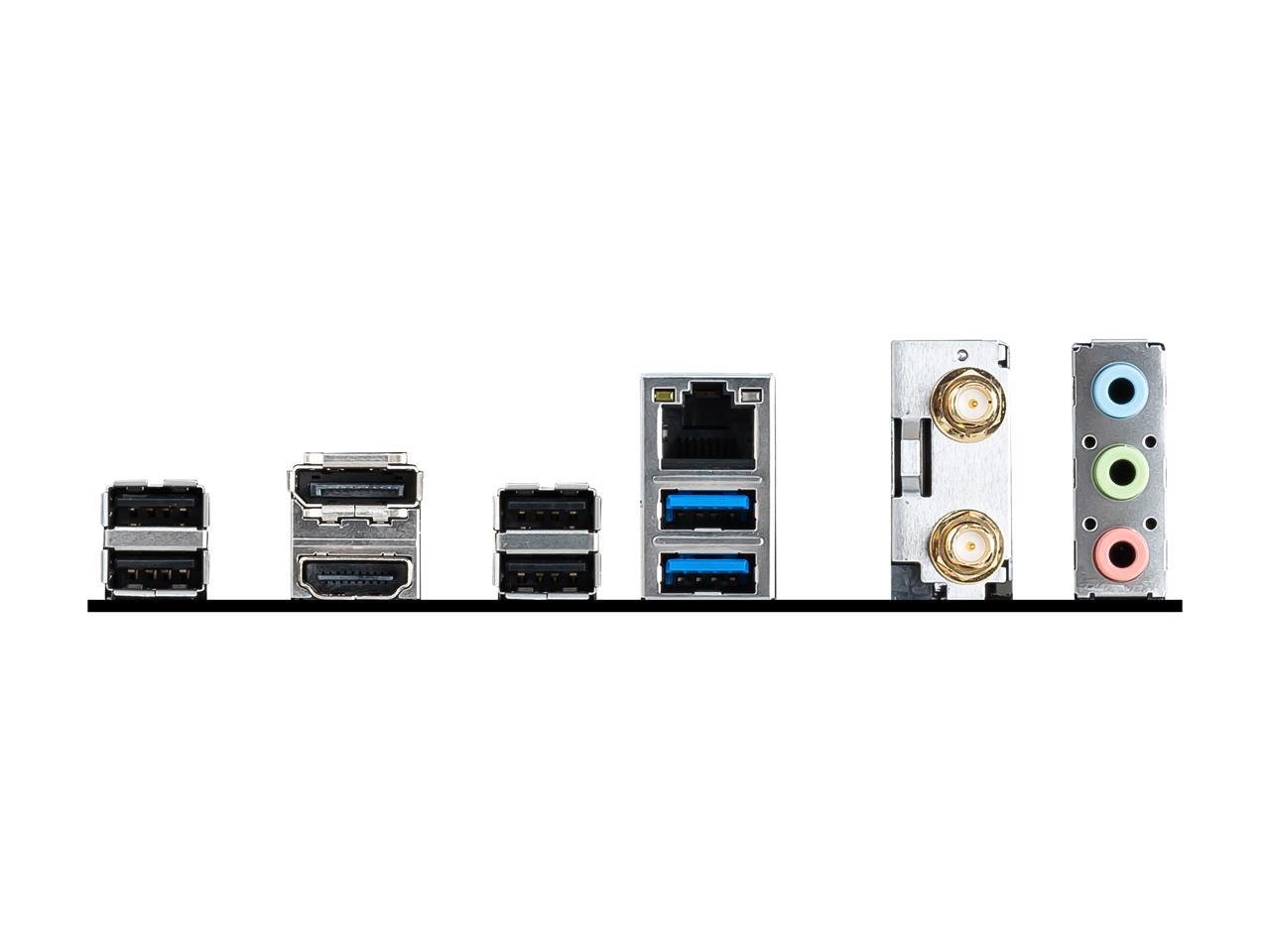

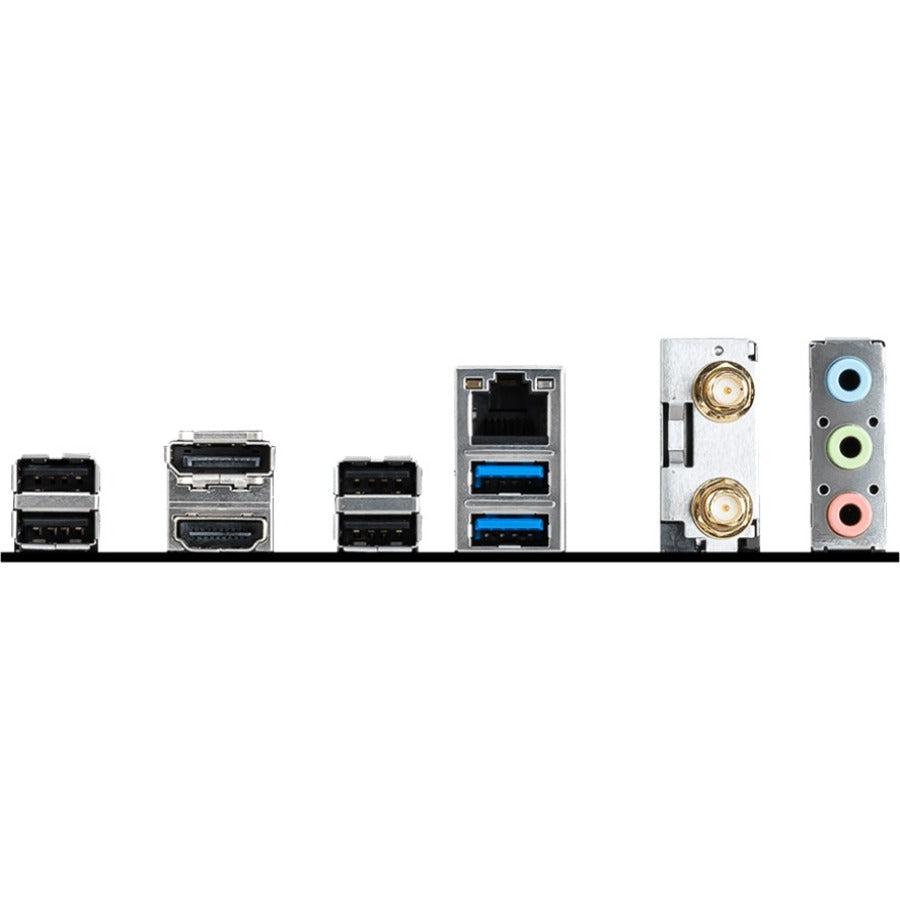

Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 2 x Antenna Bracket 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1 3 x Audio Jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector

Physical Spec
Form Factor	Mini ITX

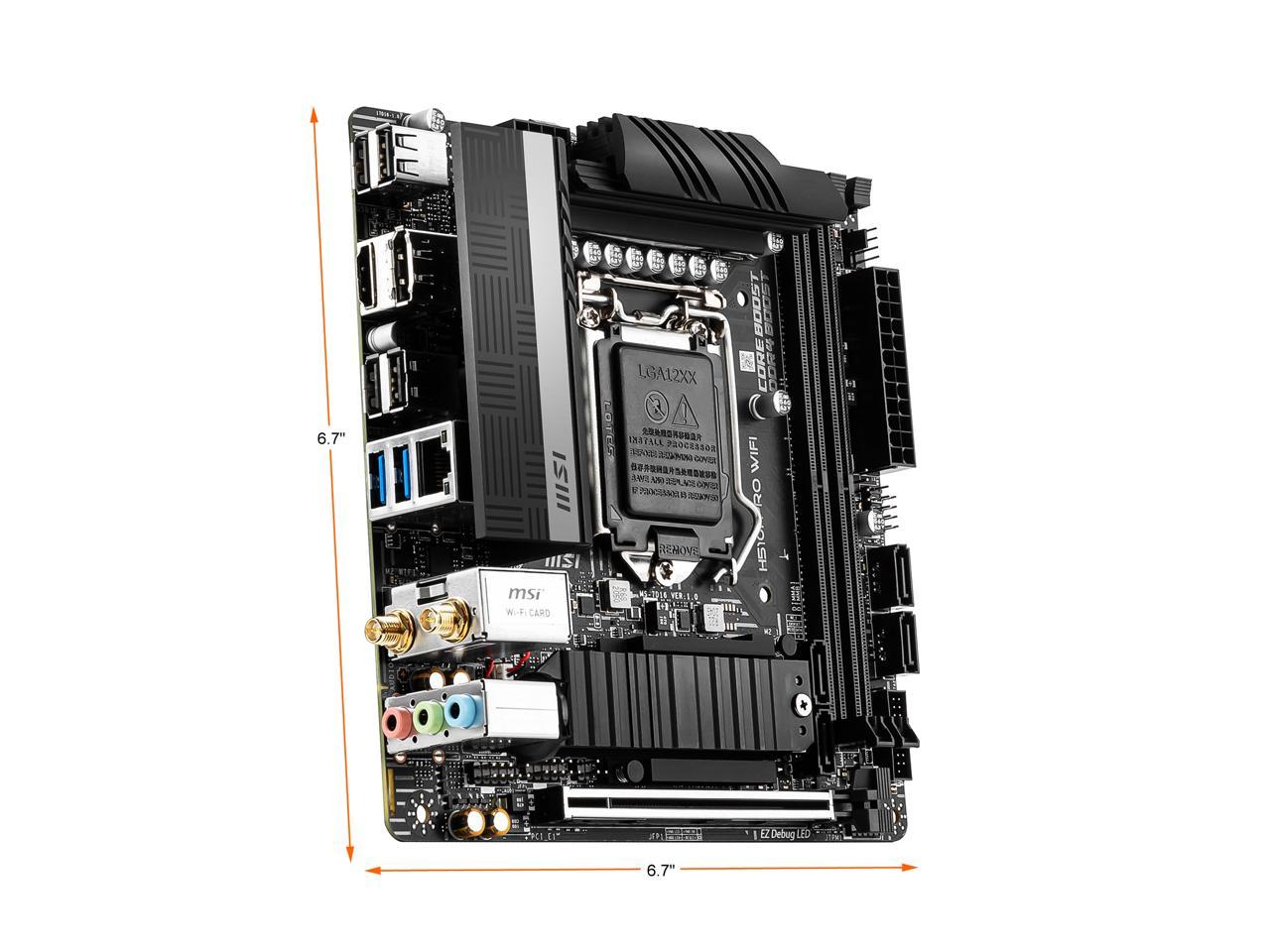

Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Windows Compatibility
Windows 11	Supported

Features
Features	Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket. Supports DDR4 Memory, up to 3200(Max) MHz. Core Boost: With premium layout and digital power design to support more cores and provide better performance. DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability. Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works. Lightning Fast Experience: PCIe 4.0. Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Audio Boost: Reward your ears with studio grade sound quality. Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications :

General Information

Manufacturer	MSI
Manufacturer Part Number	H510IPWIFI
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Series	PRO
Product Model	H510I PRO WIFI
Product Name	H510I PRO WIFI Desktop Motherboard
Product Type	Desktop Motherboard
UPC	824142243640
