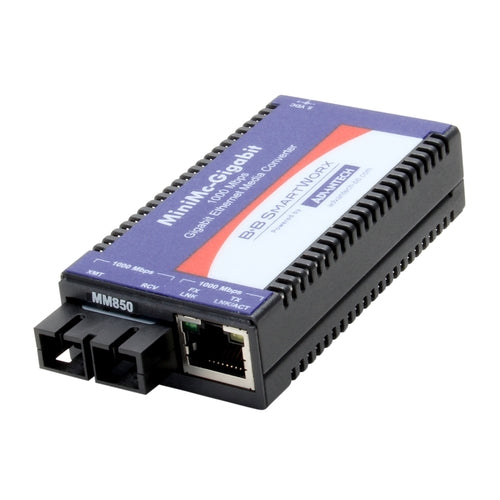

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter IMC-371-MM-PS

Description :

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter
The IMC-370 series offers the most compact media converters. They can extend the 10, 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370 series serves as a media and data rate converter.

The IMC-370I-SFP supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.

The IMC-370I supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in a centrally-powered media converter chassis.

• Metal enclosure with compact size


• Industrial grade design that supports an extended operating temperature range (IMC-370I series)


• Provides status LED


• Supports multiple power options: AC or DC adapter and dual USB cable


• Supports Link Fault Pass Through (LFPT) (IMC-370I-SFP)


• Centralized powered IMC-318I chassis

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Product Series: IMC-370I
Brand Name: B+B SmartWorx
Form Factor: Wall Mountable
Manufacturer: Advantech Co., Ltd
Product Model: IMC-371-MM-PS
Product Name: 10/100/1000Mbps Miniature Media Converter
Manufacturer Part Number: IMC-371-MM-PS
Manufacturer Website Address: http://www.advantech.com
Package Contents:

• 10/100/1000Mbps Miniature Media Converter
• Power Adapter
