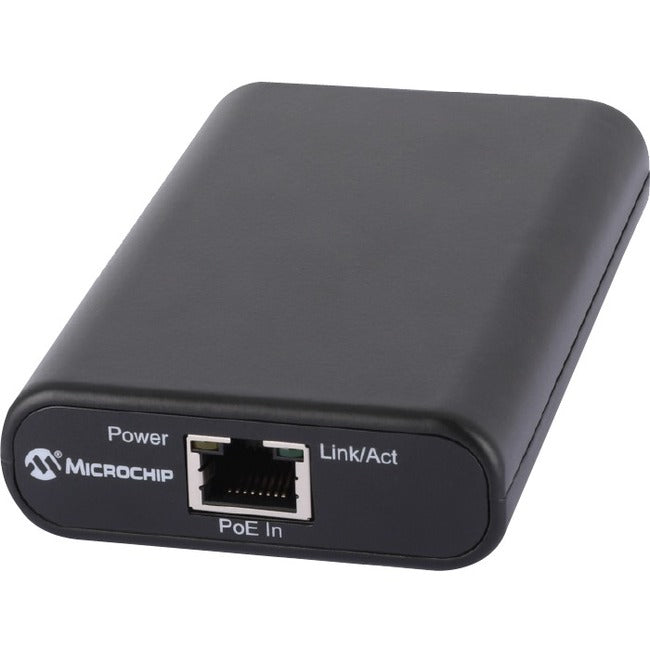

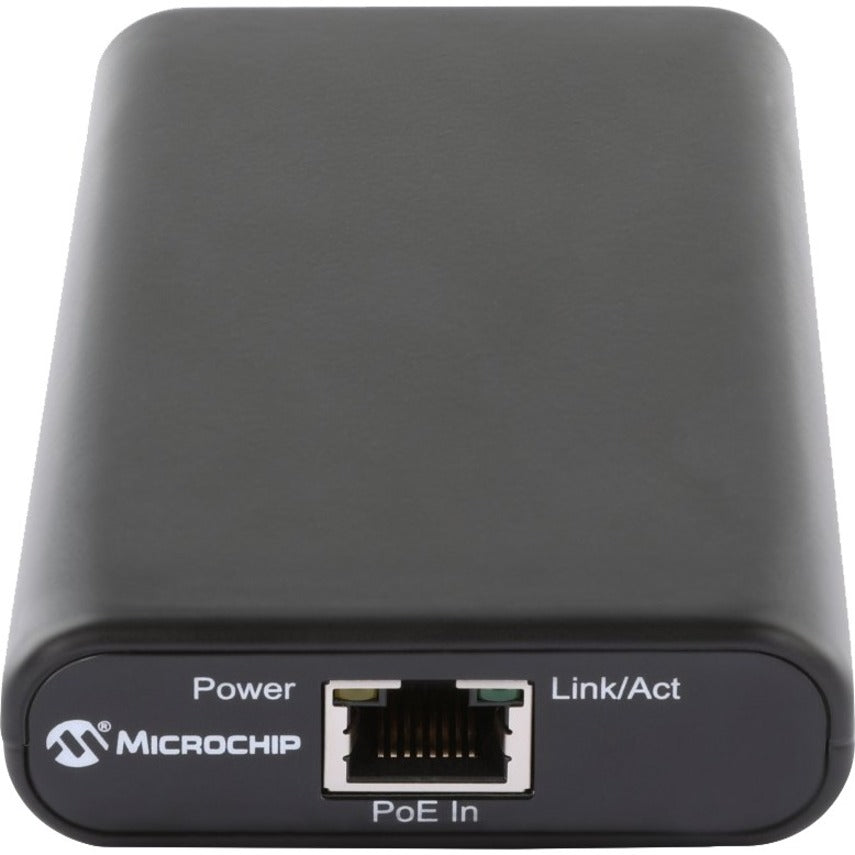

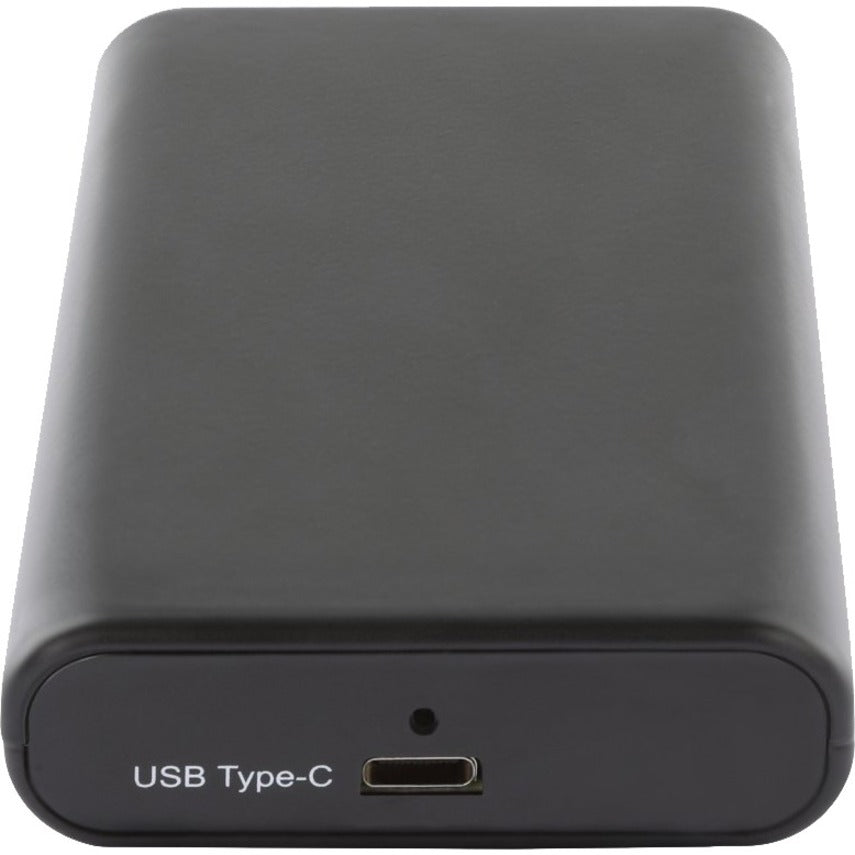

Microchip PD-USB-DP60 PoE to USB-C Power and Data Adapter
The Microchip PoE to USB-C® adapter connects IoT devices with a USB-C connector to Power over Ethernet (PoE) networks, enabling users to leverage the advantages of PoE and USB-C technologies. The PD-USB-DP60 is a PoE to USB-C adapter that provides both power and data to USB-C hosts and power to USB-C Powered Devices.
The PD-USB-DP60 adapter enables flexible installation of USB-C devices, removes the need for a close power outlet and resolves the issue of limited USB cable length. The PoE source can be up to 328 ft/100m from the location of the USB-C device. A single Ethernet cable is needed while delivering up to 60W of USB power at the output of the adapter.
The PD-USB-DP60 connects with small PCs/Next Unit of Computing (NUC), interactive information kiosks, smart monitors, tablets, laptops, cellphones, cameras and other USB-C powered devices consuming up to 60W. The adapter is compatible with USB2.0 and 3.1 and will automatically provide to the end device the exact amount of power it needs.
- Up to 60W output power
- Enables powering of small PCs/Next Unit of Computing (NUC), interactive information kiosks, smart monitors, tablets, laptops, cameras and other USB-C devices
- Provides power and data to USB-C Hosts
- Allows 328 ft/100m installation range
- Supports PoE switches and Injectors from 15.4W and up to 90W
- Plug-and-play USB-C power, no configuration is needed, simple to use
Product Type: PoE Injector
Environmentally Friendly: Yes
Certifications & Standards:
- FCC Part 15 Class B
- EN 55032 Class B
- VCCI
- ICES-003
- EN55035
Brand Name: Microchip
Length: 4.1"
Manufacturer: Microchip Technology Inc.
Product Model: PD-USB-DP60
Product Name: PD-USB-DP60 PoE to USB-C Power and Data Adapter
Manufacturer Part Number: PD-USB-DP60
Manufacturer Website Address: http://www.microchip.com
Limited Warranty: 1 Year
Weight (Approximate): 5.29 oz
