Lenovo Thinksystem De4000H Hybrid Storage Array 7Y74A002Ww

Description :

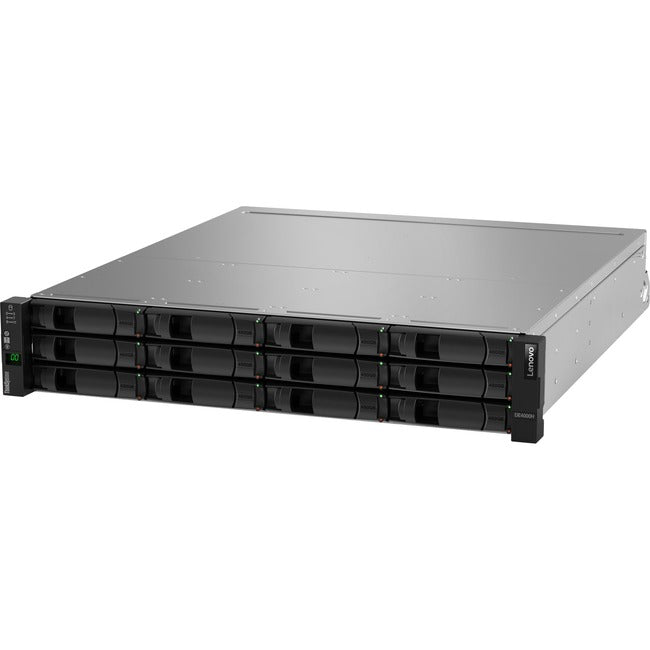

Lenovo ThinkSystem DE4000H Hybrid Storage Array

Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

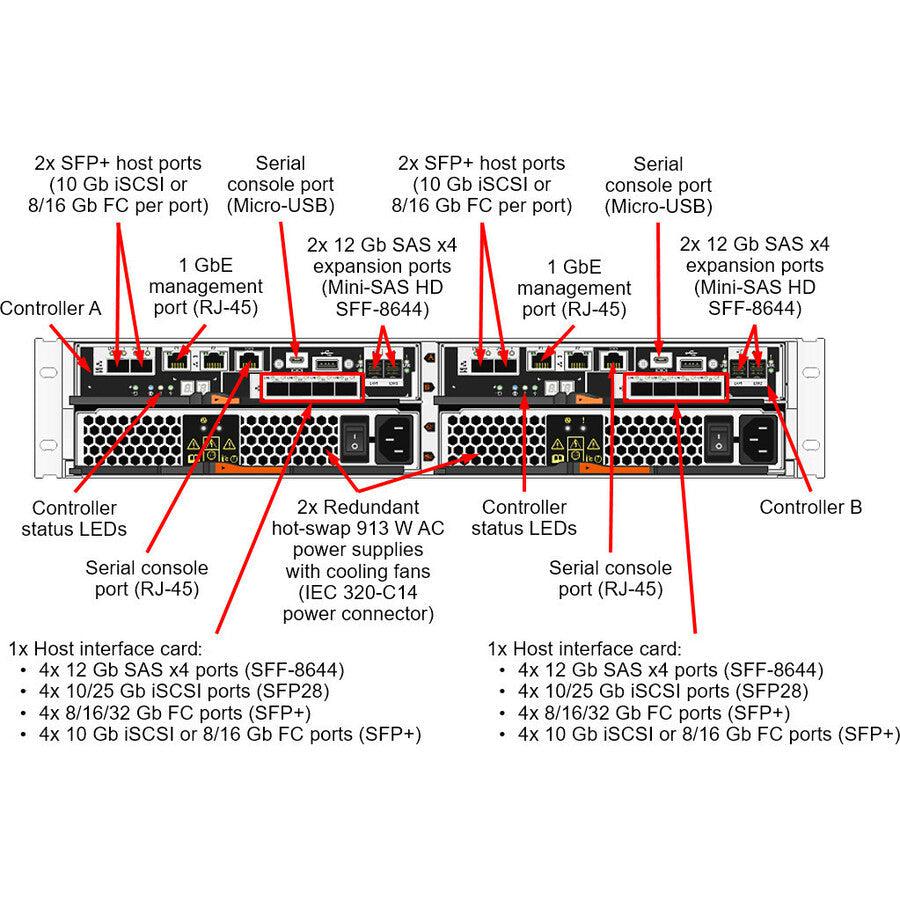

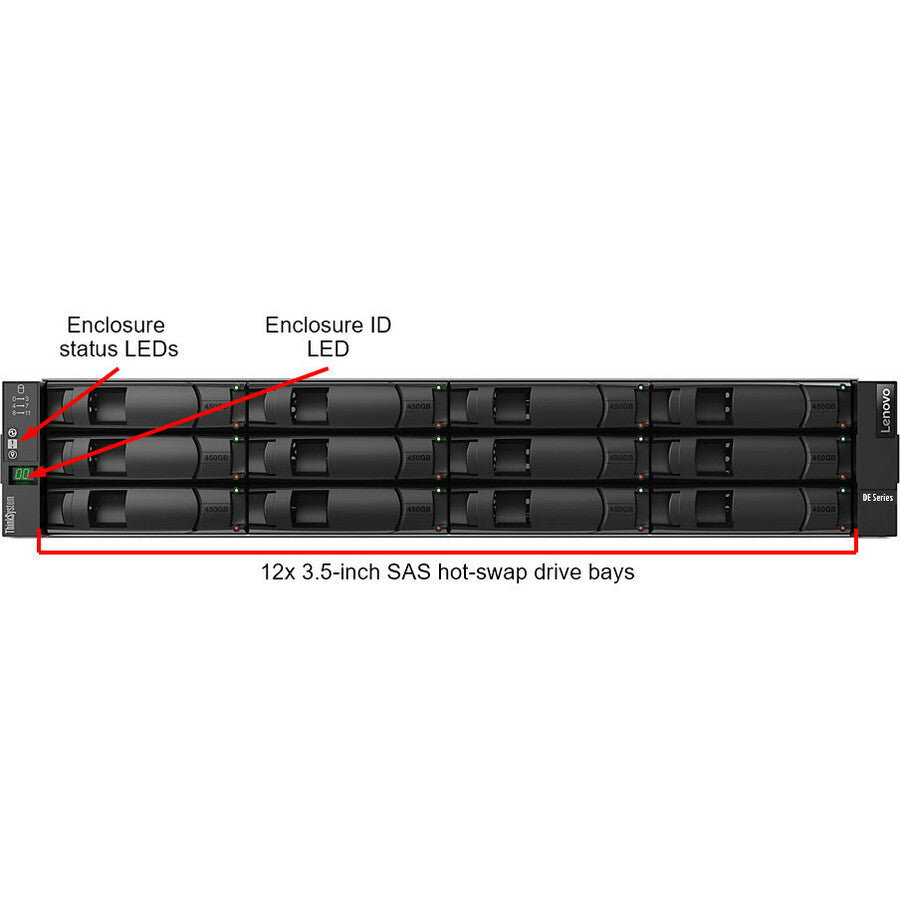

ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.

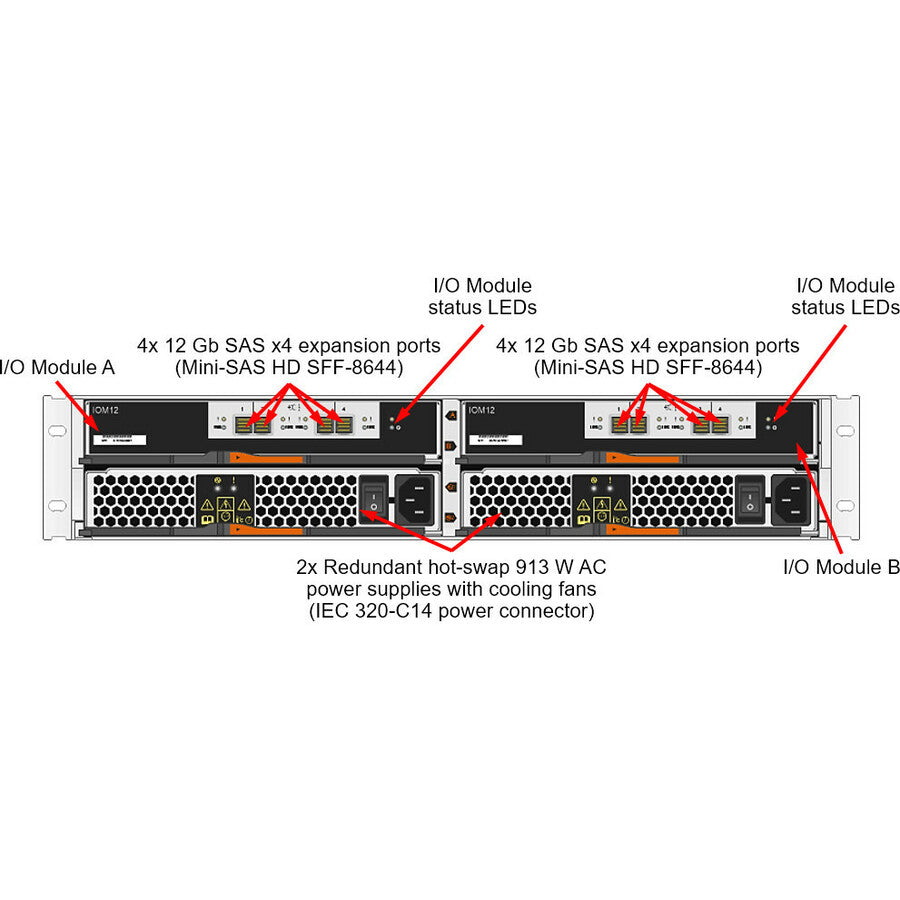

The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

• Optimize business network's performance with 10 Gigabit Ethernet connectivity


• RAID technology - data reliability, fault tolerance and improved overall performance

Product Type: SAN Storage System
Product Series: DE
Rack Height: 2U
Brand Name: Lenovo
Form Factor: Rack-mountable
Manufacturer: Lenovo Group Limited
Product Model: DE4000H
Product Name: ThinkSystem DE4000H Hybrid Storage Array
Product Line: ThinkSystem
Manufacturer Part Number: 7Y74A002WW
Manufacturer Website Address: http://www.lenovo.com/us/en/
