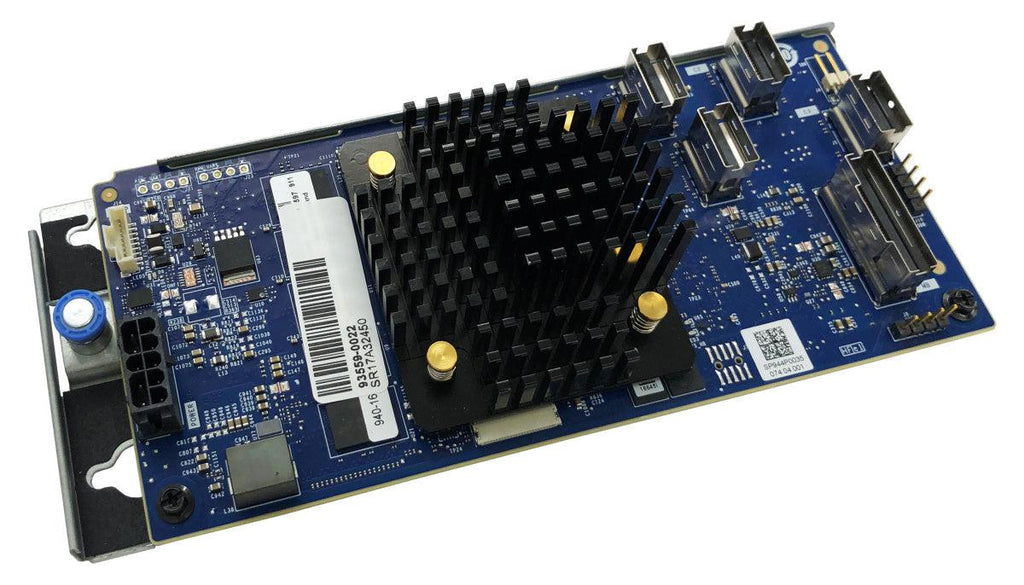

RAID 940-16i 8 GB, Broadcom SAS3916, PCIe 4.0 x8, 16 x 12 Gb SAS
Lenovo 4Y37A09730. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. Data transfer rate: 12 Gbit/s, Internal memory: 8000 MB, Chipset: Broadcom SAS3916
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 940-8i, 16i and 32i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions. Change History
Changes in the March 9, 2021 update: - The adapters now support Tri-Mode, which allows U.3 NVMe drives to be connected - Features section - The server support tables are now automatically updated (change history may not be updated) - Server support section
Introduction The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades.
