Lantronix

Lantronix Xpress Dr-Iap Serial Server Rs-232/422/485

Lantronix Xpress Dr-Iap Serial Server Rs-232/422/485

SKU:XSDRIN-03

Regular price $417.52
Regular price Sale price $417.52
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

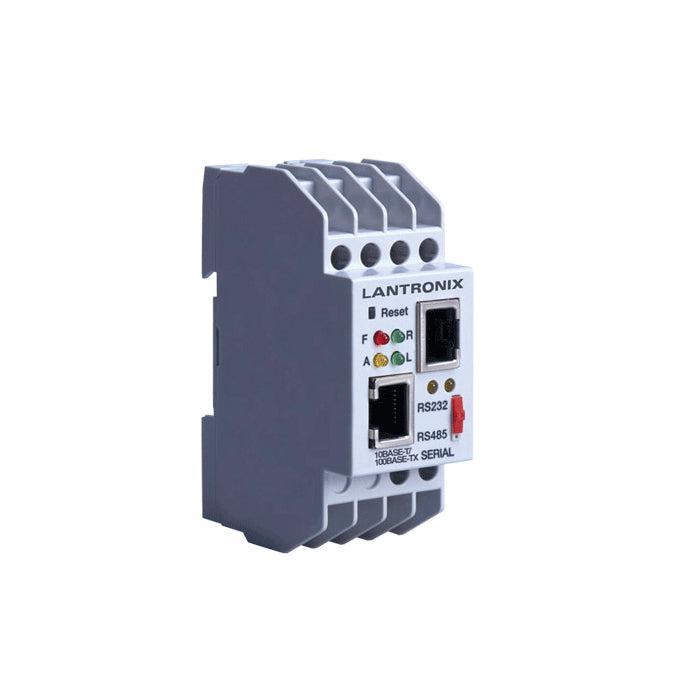

          XPress DR-IAP Industrial Device Server with Installable Industrial Protocols, DIN Rail Mount, Serial Interface, 10Base-T/100Base-TX, 9-30VDC/9-24VAC, RoHS

          Lantronix XPress DR-IAP. Cabling technology: 10/100Base-T(X). Power source type: AC, DC. Product colour: Grey

          Remotely configure, program, monitor, and manage:

          PLCs, Drives, Process Controls, Power Monitoring Equipment, Barcode Scanners, and other factory floor serial devices

          The XPress DR and XPress DR-IAP Device Servers allow virtually any serial device to be connected to a new or existing Ethernet network.

          By encapsulating serial data and transporting it over Ethernet, the XPress DR/DR-IAP allows virtual serial links to be established over Ethernet. By using these units, limited-distance, point-to-point, and direct serial connections can now be extended within the plant, throughout the facility, or across the global enterprise.

          When used in conjunction with an OPC server, most Windows® based HMI, SCADA, and PC-based control applications have full access to information in the connected device. Existing COM-port based Windows applications can access network-enabled devices using our Com Port Redirector software. Redirector software allows the creation of virtual serial ports, which can be mapped to the remote device servers over Ethernet and connected to the XPress DR and XPress DR-IAP.

          The XPress DR-IAP installable communication drivers allow specific support for various industrial communication protocols. With native support for these protocols, devices that previously allowed only one connection can now support multiple connections simultaneously.

          Flexible configuration options allow the unit to be set up locally using the serial port, or remotely over Ethernet using Telnet or a common web browser. DeviceInstaller, a Windows based configuration software, simplifies installation and configuration, enables access to the Web Manager and Telnet communications, and ping attached devices over the network. Flash memory provides for maintenance-free, non-volatile storage, and allows future system upgrades.

          Packaged in a rugged DIN-rail mount case and featuring 2000V galvanic isolation, 1500V Ethernet isolation, a wide 0° to 60°C operating range, and a 9-30VDC/9-24VAC power input, the XPress DR and XPress DR-IAP are ideal for virtually any industrial application.

          Specifications :

          General Information

          Manufacturer Lantronix, Inc
          Manufacturer Part Number XSDRIN-03
          Manufacturer Website Address http://www.lantronix.com
          Brand Name Lantronix
          Product Line XPress DR-IAP
          Product Name XPress DR-IAP Industrial Device Server
          Product Type Device Server
          UPC 783384236912
          Ethernet TechnologyFast Ethernet
          Network (RJ-45)Yes
          Height3.5"
          Width1.4"
          Depth2.4"
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
